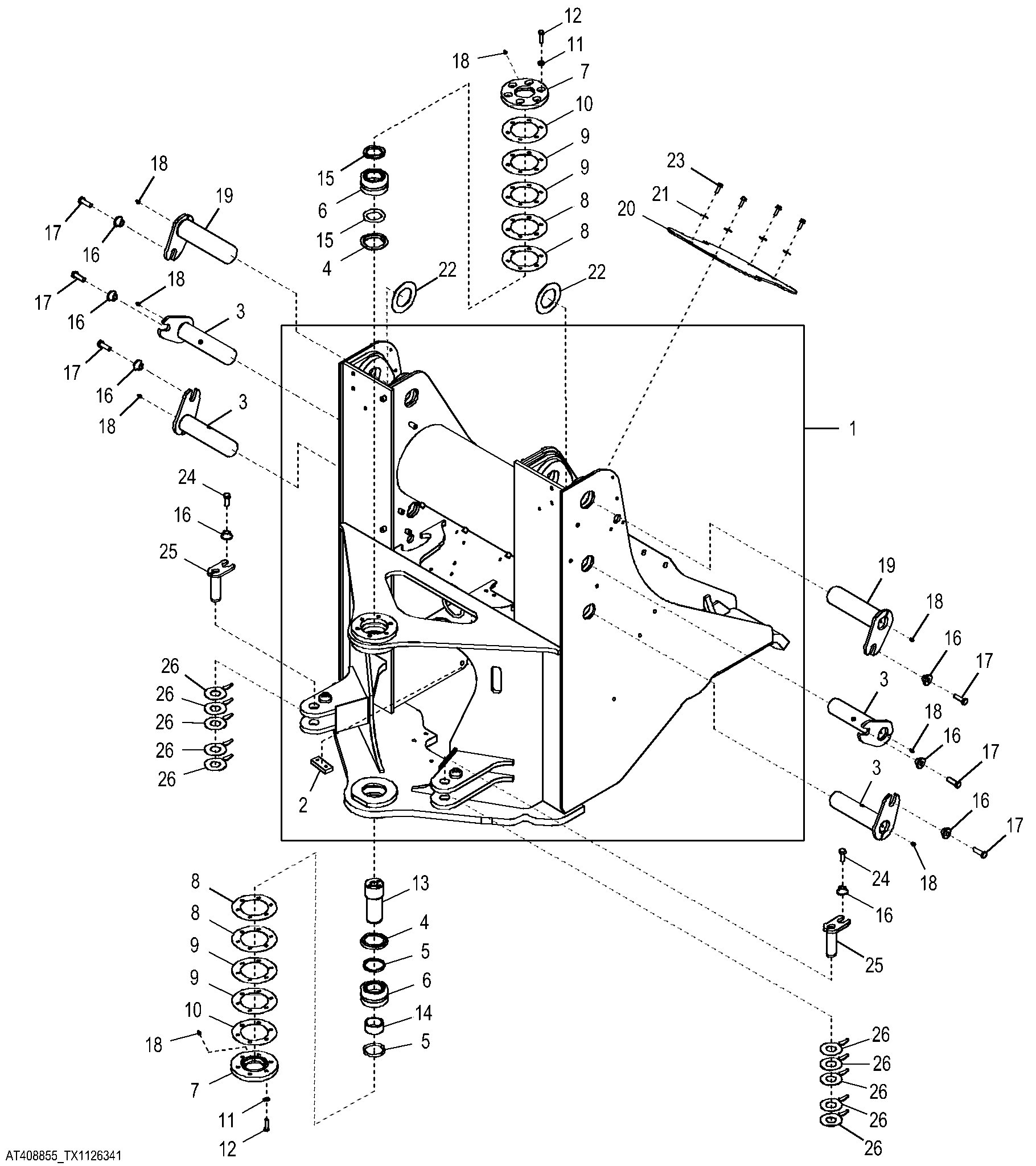

Loader Frame - Tool Carrier (649773 - 652634)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T306829	2	Plate	Not Illustrated
1	AT421397	1	Frame	NLA, ORDER AT432796. ALSO ORDER AT432087, T266406, (3) 24M7239, (2) 19M8320, AND (2) 14M7296
1	AT432796	1	Frame	Convenience Assembly, SUB FOR AT421397
1	14M7296	2	Flange Nut	M10, Not Illustrated
1	19M8320	2	Screw	M10 X 45, Not Illustrated
1	24M7239	3	Washer	10.700 X 21 X 2.500 mm, Not Illustrated
1	T266406	1	Spacer	Not Illustrated
1	AT432087	1	Bracket	Not Illustrated
1	19M8485	4	Cap Screw	M16 X 90, Not Illustrated
2	T133290	1	Strap	-
3	AT207719	4	Pin	-
4	T157030	2	Spacer	-
5	T60752	2	Seal	-
6	AT203483	2	Bearing	-
7	T200888	2	Cover	-
8	T130057	4	Shim	TK=0.508 mm (.020 in)
9	T130058	4	Shim	TK=0.254 mm (.010 in)
10	T130059	2	Shim	TK=0.127 mm (.005 in)
11	24M7240	12	Washer	13 X 25 X 3 mm
12	19M7496	12	Cap Screw	M12 X 45
13	T182516	1	Pin	-
14	T182265	1	Bushing	-
15	T157029	2	Seal	-
16	T176064	8	Bushing	-
17	19M7409	6	Cap Screw	M16 X 50
18	JD7759	8	Lubrication Fitting	-
19	AT318925	2	Pin	-
20	T157234	1	Cover	-
21	24M7296	4	Washer	10.500 X 30 X 2.500 mm
22	T171734	2	Washer	-
23	19M7786	4	Screw	M10 X 30
24	19M7488	2	Cap Screw	M16 X 40
25	AT345967	2	Pin	-
26	T444876	10	Shim	TK=1.5748 mm, SUB FOR T225434
