Loader Frame - Tool Carrier ( - 649772)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT432796	1	Frame	Requires Convenience Assembly, (4) AT207719, (8) T176064, (6) 19M7409, AND (2) AT318925. SUB FOR AT369522
1	AT369522	1	Frame	NLA, ORDER AT432796. ALSO ORDER (2) T306829, (4) 19M8485, AT432087, T266406, (3) 24M7239, (2) 19M8320, AND (2) 14M7296
1	14M7296	2	Flange Nut	M10, Not Illustrated
1	19M8320	2	Screw	M10 X 45, Not Illustrated
1	24M7239	3	Washer	10.700 X 21 X 2.500 mm, Not Illustrated
1	T266406	1	Spacer	Not Illustrated
1	AT432087	1	Bracket	Not Illustrated
1	19M8485	4	Cap Screw	M16 X 90, Not Illustrated
1	T306829	2	Plate	Not Illustrated
2	T133290	1	Strap	-
3	AT354147	4	Pin	-
3	AT207719	4	Pin	-
4	T157030	2	Spacer	-
5	T60752	2	Seal	-
6	AT203483	2	Bearing	-
7	T200888	2	Cover	-
8	T130057	4	Shim	TK=0.508 mm (.020 in)
9	T130058	4	Shim	TK=0.254 mm (.010 in)
10	T130059	2	Shim	TK=0.127 mm (.005 in)
11	24M7240	12	Washer	13 X 25 X 3 mm
12	19M7496	12	Cap Screw	M12 X 45
13	T182516	1	Pin	-
14	T182265	1	Bushing	63.623 X 74.160 X 34.500 mm (2.505" X 2.920" X 1.358")
15	T157029	2	Seal	-
16	T245365	8	Bushing	16.300 X 28.600 X 21.900 mm (0.642" X 1.126" X 0.862")
16	T176064	8	Bushing	16.300 X 28.600 X 21.900 mm (0.642" X 1.126" X 0.862")
17	19M9996	6	Cap Screw	M16 X 50
17	19M7409	6	Cap Screw	M16 X 50
18	JD7759	8	Lubrication Fitting	-
19	AT354161	2	Pin Fastener	-
19	AT318925	2	Pin	-
20	T157234	1	Cover	-
21	24M7296	4	Washer	10.500 X 30 X 2.500 mm
22	T171734	2	Washer	84.500 X 140 X 3.250 mm (3.327" X 5.512" X 0.128")
23	19M7786	4	Screw	M10 X 30
24	19M7488	2	Cap Screw	M16 X 40
25	AT345967	2	Pin	-
26	T444876	10	Shim	TK= 1.5748 mm (.062 in), SUB FOR T225434

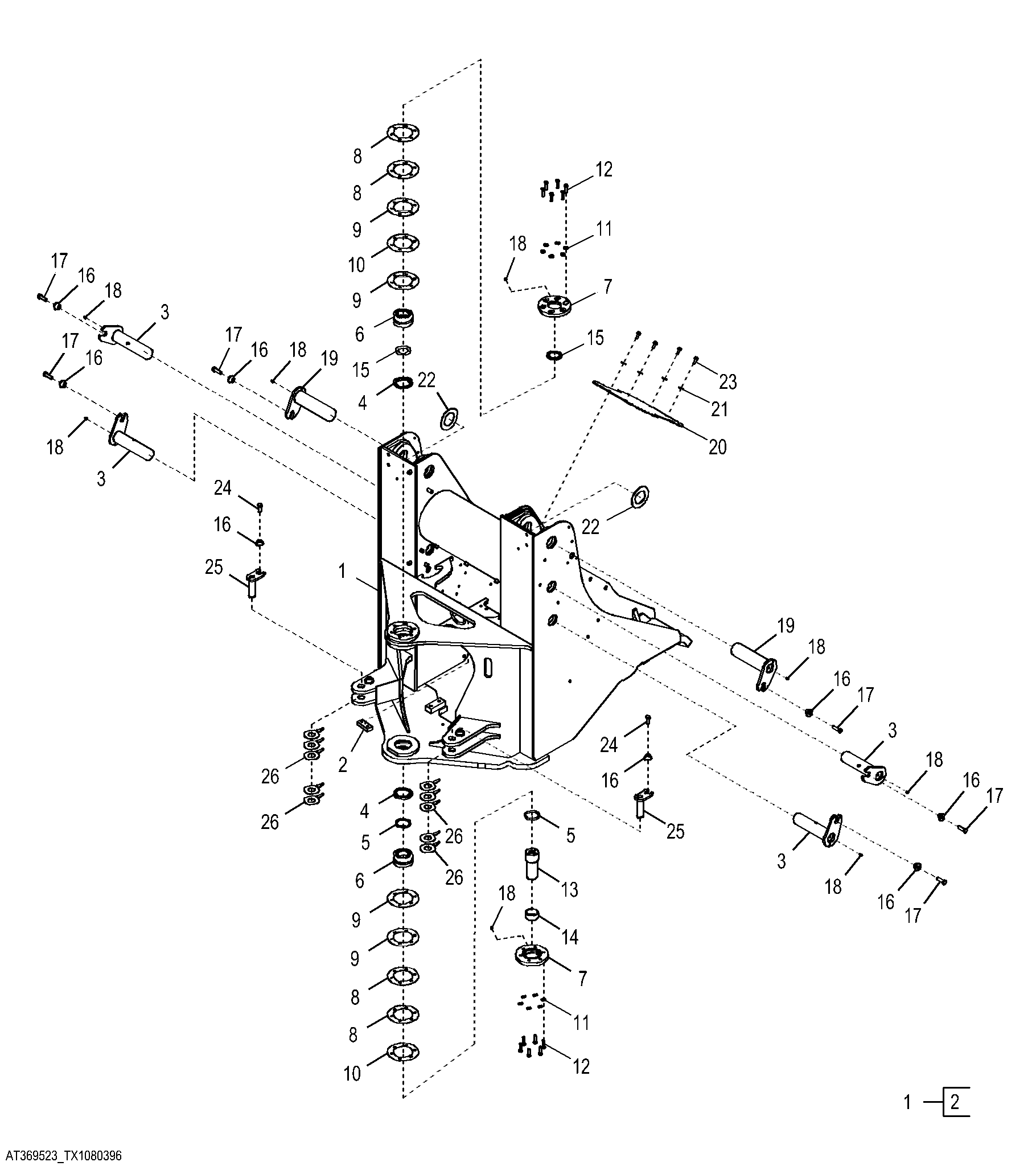

Loader Frame - Tool Carrier ( - 649772)
