Hydraulic Actuated Control Valve, Ride Control Valve

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R30903	1	O-Ring	-
1	AT423341	1	Solenoid Valve Coil	24 V
1	AT442499	1	Hyd Actuated Control Valve	Ride Control, INCLUDES R30903 AND AT423341
2	AT225084	1	Flow Control Hyd. Valve	Low Flow Spool Valve, INCLUDES AT225085
2	AT225085	1	Seal Kit	-
3	AT316532	2	Lock Kit	Lockdown Kit
3	AT444813	1	Lock Kit	-
4	AT429046	1	Flow Control Hyd. Valve	Ride Control On/Off Solenoid Valve 1, INCLUDES AT224706, AT423339 AND T225291
4	AT224706	1	Seal Kit	-
4	AT423339	1	Solenoid Valve Coil	24 V
4	T225291	1	Nut	-
5	AT423339	1	Solenoid Valve Coil	24 V
5	T225291	1	Nut	-
5	AT224862	1	Seal Kit	-
5	AT429045	1	Solenoid Valve	Ride Control On/Off Solenoid Valve 2, INCLUDES AT224862, AT423339 AND T225291
6	AT429042	1	Solenoid Valve	Ride Control Boom Solenoid Valve, INCLUDES AT224706 AND T225291
6	AT224706	1	Seal Kit	-
6	T225291	1	Nut	-
7	AT225082	1	Flow Control Hyd. Valve	Ride Control Shuttle Valve, INCLUDES F433299
7	F433299	1	Seal Kit	-
8	AT444815	1	Lock Kit	-
9	AT224867	1	Flow Control Hyd. Valve	High Flow Spool Valve, INCLUDES AT224868
9	AT224868	1	Seal Kit	-
10	64H1015	1	Drain Plug	INCLUDES R28782
10	R28782	1	O-Ring	-
11	AN207183	1	Check Valve	SUB FOR AT307262
11	AN207184	1	Seal Kit	SUB FOR AT307265

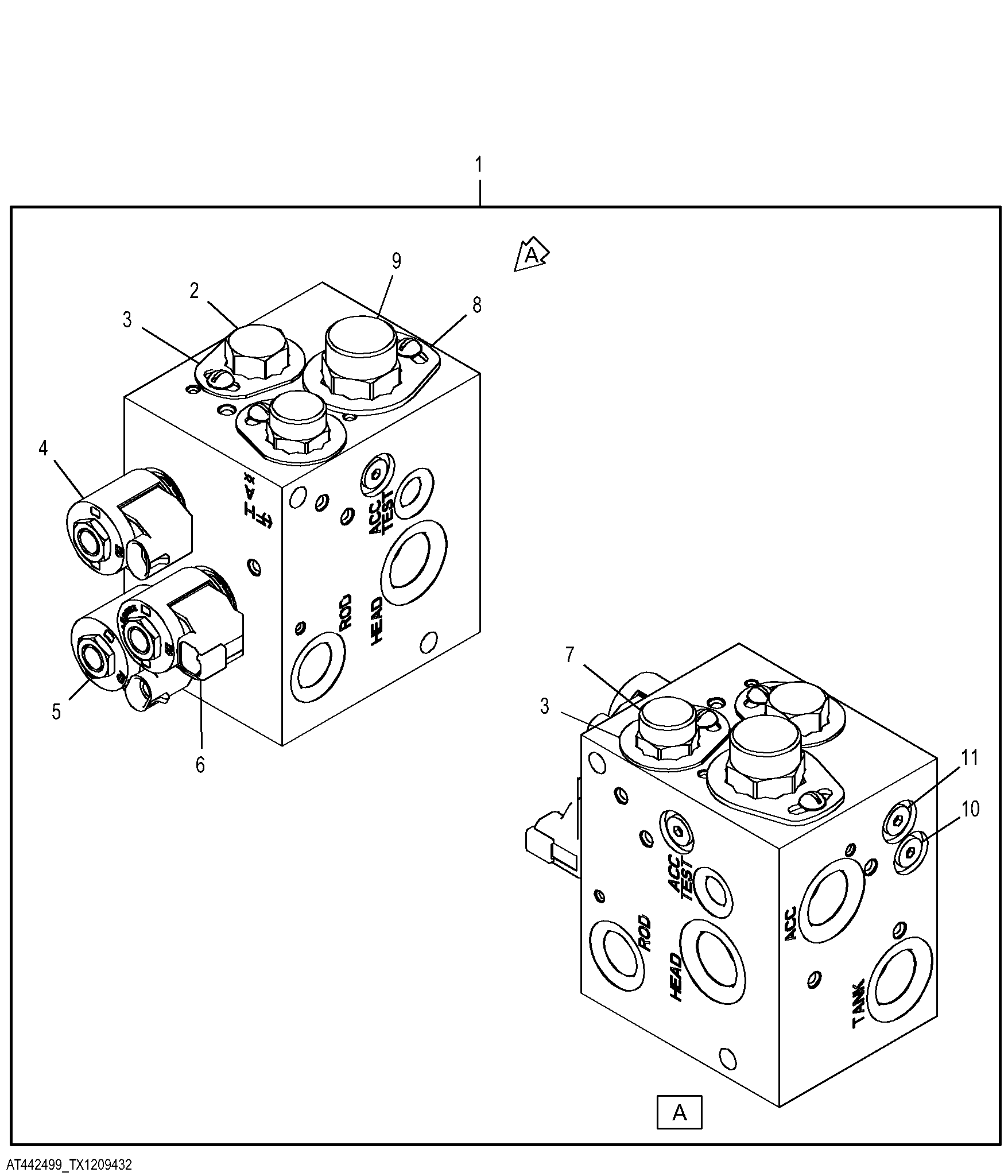

Hydraulic Actuated Control Valve, Ride Control Valve
