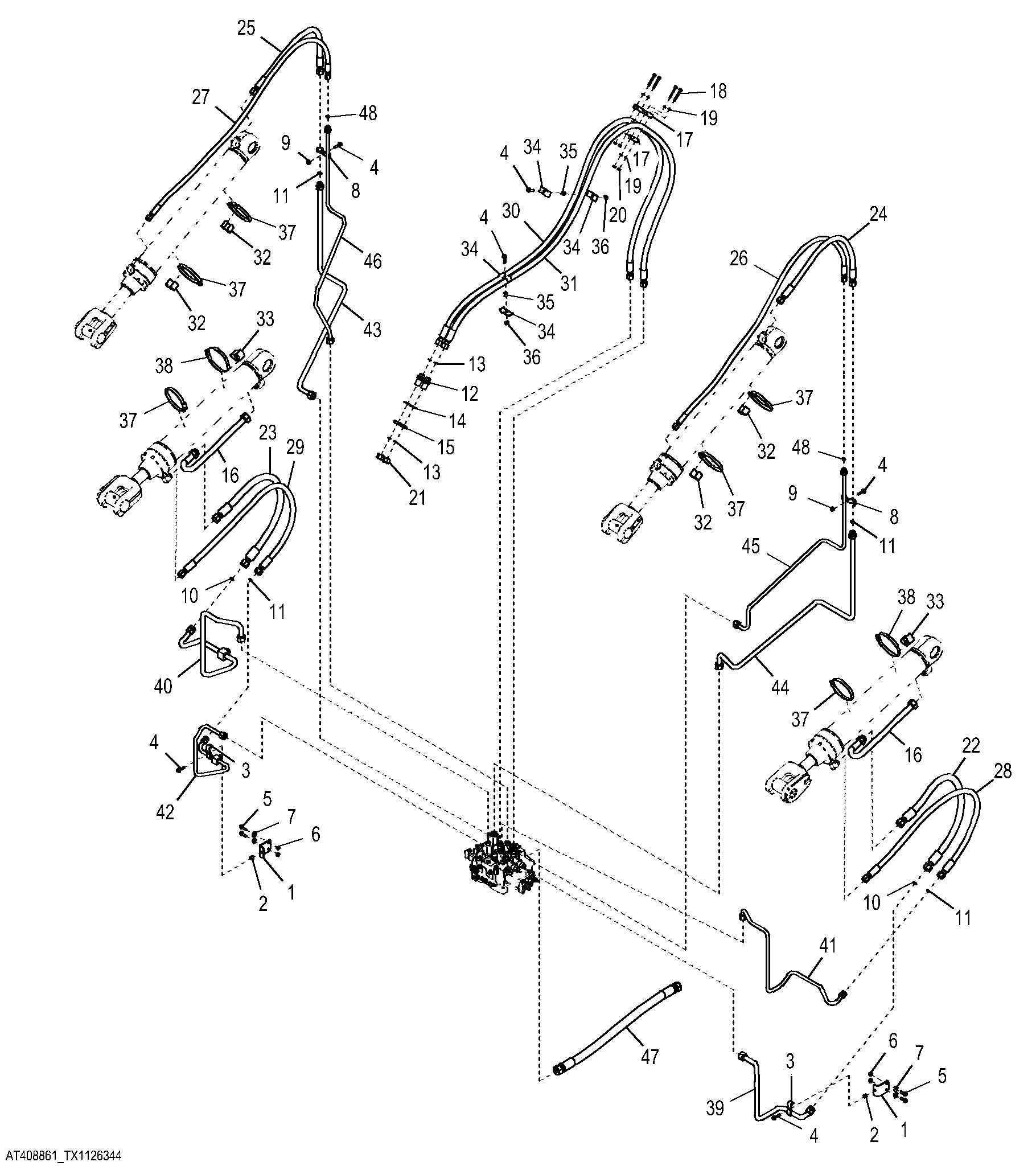

Boom and Bucket Cylinder Hydraulics (Tool Carrier) (3-Spool Control Valve) (649773 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT224318	2	Bracket	-
2	28H3381	2	Spacer	0.493" X 0.675" X 5/8"
3	T167921	2	Clamp	-
4	19M7805	6	Screw	M10 X 45
5	19M7835	4	Screw	M10 X 35
6	14M7296	4	Flange Nut	M10
7	24M7296	4	Washer	10.500 X 30 X 2.500 mm
8	T170143	2	Clamp	-
9	T13976	2	Bushing	-
10	T76938	5	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
11	T77858	5	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
12	38H1276	2	Adapter Fitting	-
13	T77858	4	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
14	T174275	2	Lock Washer	-
15	T78707	2	Nut	-
16	AT210400	2	Oil Line	-
17	T147188	4	Clamp	-
18	19M7803	4	Screw	M8 X 70
19	24M7238	8	Washer	8.700 X 17 X 2 mm
20	14M7298	4	Flange Nut	M8
21	38H1418	2	Fitting	-
22	AT219783	1	Hydraulic Hose	-
23	AT208691	1	Hydraulic Hose	-
24	AT227536	1	Hydraulic Hose	-
25	AT227536	1	Hydraulic Hose	-
26	AT306599	1	Hydraulic Hose	-
27	AT306599	1	Hydraulic Hose	-
28	AT306812	1	Hydraulic Hose	-
29	AT306812	1	Hydraulic Hose	-
30	AT346960	1	Hydraulic Hose	-
31	AT346960	1	Hydraulic Hose	-
32	T105773	4	Guide	-
33	T102005	2	Guide	-
34	U46753	4	Hose Clamp	-
35	28H3383	2	Bushing	0.493" X 0.675" X 3/4"
36	14M7400	2	Lock Nut	M10
37	TY22493	6	Hose Clamp	-
38	TY22494	2	Hose Clamp	-
39	AT406723	1	Oil Line	-
40	AT406721	1	Oil Line	-
41	AT406717	1	Oil Line	-
42	AT406713	1	Oil Line	-
43	AT406747	1	Oil Line	-
44	AT406748	1	Oil Line	-
45	AT406751	1	Oil Line	-
46	AT406754	1	Oil Line	-
47	AT422478	1	Hydraulic Hose	Fabricate
48	T77932	2	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")

Boom and Bucket Cylinder Hydraulics (Tool Carrier) (3-Spool Control Valve) (649773 - )
