Main Hydraulic Lines for Joystick Steering, Tool Carrier

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T334971	1	Plate	-
2	24M7242	2	Washer	21.400 X 42 X 5 mm
3	19M9364	2	Cap Screw	M20 X 40
4	AT430835	1	Oil Line	-
5	T200233	2	Hose Clamp	-
6	U16466	1	Strap	-
7	19M7811	2	Screw	M10 X 90
8	14M7400	2	Lock Nut	M10
9	AT430438	1	Suction Hose	-
10	RE56859	2	Clamp	-
11	38H1007	1	Elbow Fitting	-
12	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
13	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
14	38H1163	1	Adapter Fitting	-
15	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
16	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
17	38H1276	2	Adapter Fitting	-
18	T77858	4	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
19	T78707	2	Nut	-
20	T174275	2	Lock Washer	-
21	AT334374	1	Hydraulic Hose	Fabricate
22	AT429599	1	Hydraulic Hose	Fabricate
23	AR21839	1	Clamp	-
24	38H1595	1	Adapter Fitting	-
25	T78612	1	O-Ring	29.870 X 1.778 mm (1.176" X 0.070")
26	R26773	1	O-Ring	43.688 X 2.997 mm (1.720" X 0.118")
27	38H1194	1	Adapter Fitting	-
28	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
29	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
30	AT414608	1	Oil Line	-
31	T352264	1	Adapter	-
32	T78612	2	O-Ring	29.870 X 1.778 mm (1.176" X 0.070")
33	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
34	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
35	AT308426	1	Oil Line	-
36	AT340599	1	Hose	Fabricate
37	AT433695	1	Hydraulic Hose	-
38	AT419916	1	Hydraulic Hose	-
39	AT430695	1	Hydraulic Hose	Fabricate
40	AT414371	1	Hydraulic Hose	Fabricate
41	T238029	1	Adjusting Strap	-
42	28H3485	2	Bushing	0.493" X 0.675" X 2-1/4"
43	T240085	2	Clamp	-
44	24M7296	2	Washer	10.500 X 30 X 2.500 mm
45	T172732	1	Adapter Fitting	-
46	L150867	1	O-Ring	23 X 2 mm (29/32" X 0.079")
47	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
48	38H5037	1	Adapter Fitting	-
49	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
50	51M7042	1	O-Ring	13.300 X 2.200 mm
51	T78612	1	O-Ring	29.870 X 1.778 mm (1.176" X 0.070")
52	AT431226	1	Hose	-
53	AT430408	1	Hydraulic Hose	-
54	38H1097	1	Elbow Fitting	-
55	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
56	AT419496	1	Hydraulic Hose	Fabricate
57	T314183	1	Bracket	-
58	T168574	1	Spacer	-
59	R58925	1	Clamp	-
60	19M7835	1	Screw	M10 X 35
61	14M7296	1	Flange Nut	M10
62	19M7785	1	Screw	M10 X 25
63	AT437315	1	Hydraulic Hose	Fabricate
64	H77698	1	Tie Band	-
65	19M7348	2	Cap Screw	M10 X 150
66	AT411682	1	Hydraulic Hose	Fabricate
67	AT430436	1	Hydraulic Hose	Fabricate
68	AT419497	1	Hydraulic Hose	Fabricate
69	AT431956	1	Hydraulic Hose	Fabricate
70	AT346015	1	Hydraulic Hose	-
71	AN209168	1	Swivel	-
72	H224073	2	Tie Band	-
73	AT433572	1	Hydraulic Hose	-
74	38H1045	1	Elbow Fitting	-
75	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
76	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
77	38H1046	2	Elbow Fitting	-
78	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
79	R26375	2	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
80	T26955	1	Clamp	-
81	19M7783	1	Screw	M10 X 16
82	38H1621	1	Adapter Fitting	-
83	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")

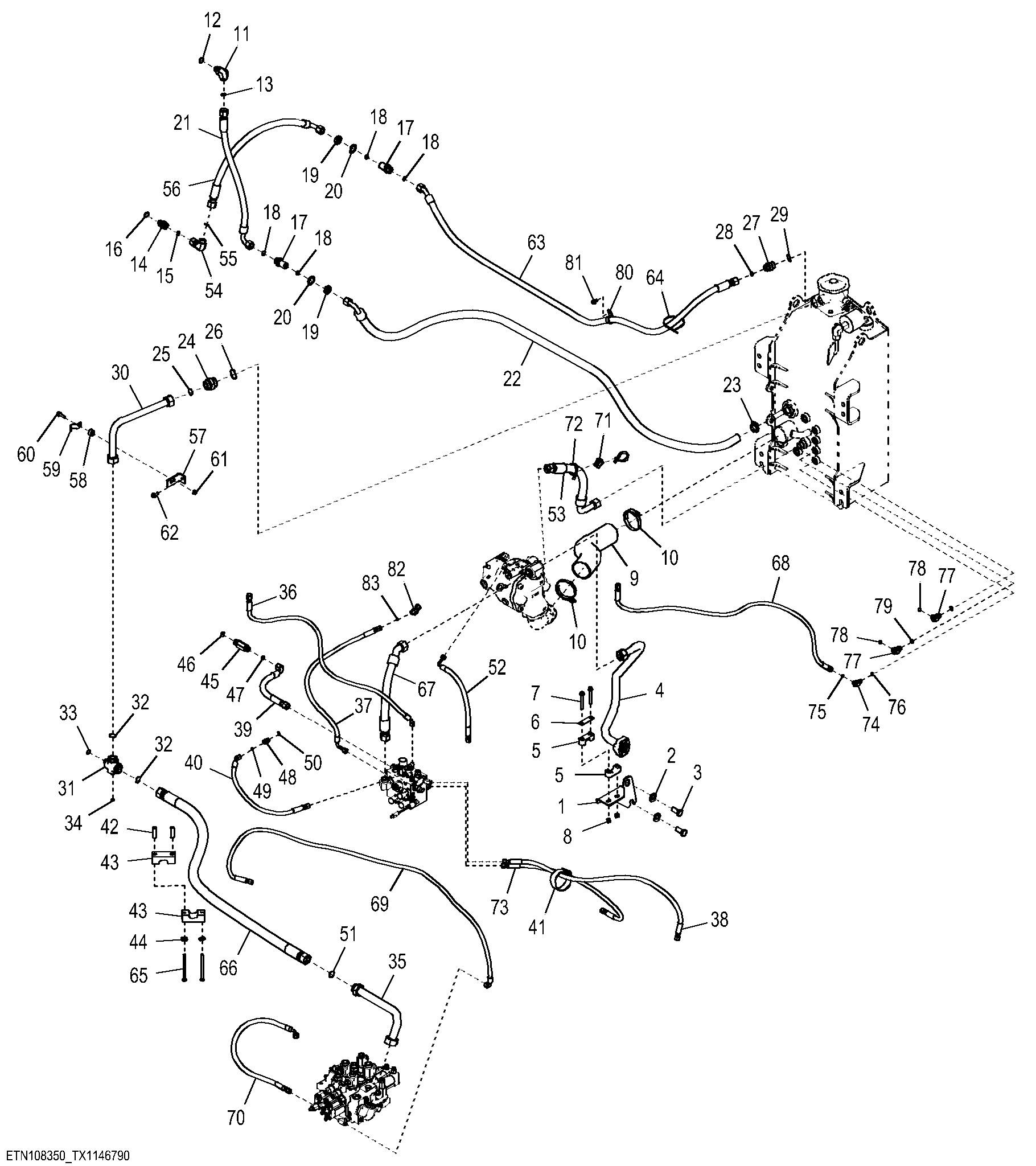

Main Hydraulic Lines for Joystick Steering, Tool Carrier
