Joystick To Joystick with Auxiliary Lever Conversion Kit (Powerllel™)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7397	4	Lock Nut	M6
2	14M7400	1	Lock Nut	M10
3	19M7786	2	Screw	M10 X 30
4	19M7805	1	Screw	M10 X 45
5	28H3383	1	Bushing	0.493" X 0.675" X 3/4"
6	38H1418	2	Fitting	-
7	38H1023	2	Tee Fitting	-
8	R26448	3	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
9	T77613	3	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
10	38H1160	4	Adapter Fitting	-
11	38H1163	2	Adapter Fitting	-
12	T77858	5	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
13	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
14	38H1276	2	Adapter Fitting	-
15	62H1001	2	Adapter Fitting	SUB FOR 63H1001
16	AT209749	4	Rod	Not Illustrated
17	AT223056	1	Hydraulic Hose	36.5252" X 1016 mm (40") X 36.5252"
18	AT226132	1	Oil Line	-
20	AT226133	1	Oil Line	-
21	AT226615	2	Hydraulic Hose	Fabricate, ALSO ORDER 62H1042 AND T77613
22	AT228250	1	Hydr./Pilot Control Valve	-
23	AT228261	1	Plate	-
24	AT313424	2	Hydraulic Hose	13/16" X 1550 mm (61") X 13/16", Fabricate
25	AT314046	1	Valve	-
25	AT314013	1	Seal Kit	-
26	AT322202	1	Oil Line	-
28	AT322203	1	Oil Line	-
29	T215434	2	Clamp	-
30	U46753	2	Hose Clamp	-
31	T78707	2	Nut	-
32	T174275	2	Lock Washer	-
33	AT209750	2	Pressure Relief Valve	-
33	AT209748	1	Seal Kit	-
34	AT314011	1	Valve	-
35	AT314012	1	Valve	-
35	AT314021	1	Hydraulic Cylinder Cap	-
50	AT314647	1	Field Installation Kit	Whole Goods

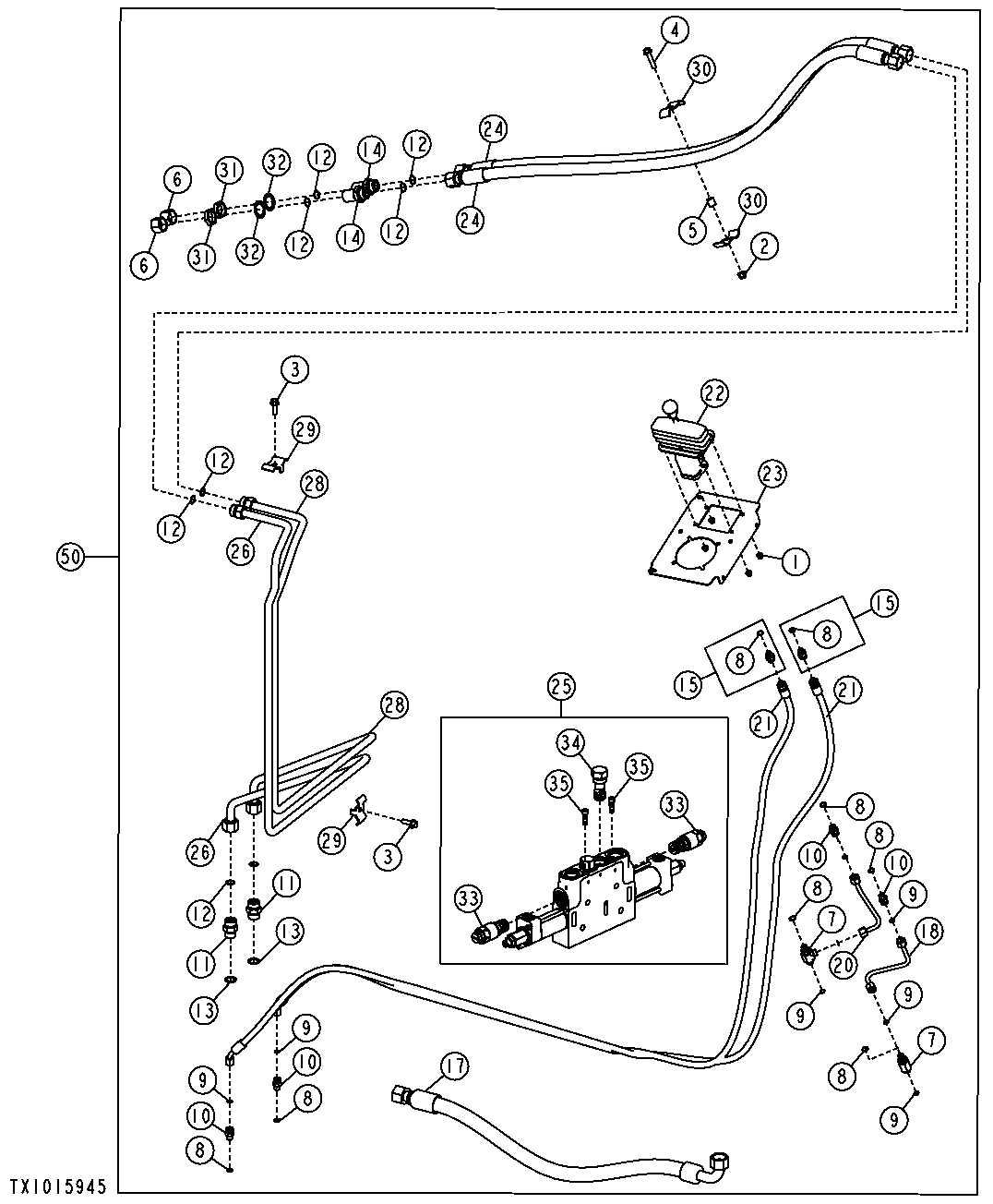

Joystick To Joystick with Auxiliary Lever Conversion Kit (Powerllel™)

Нет текстового описания
