High Range Forward Clutch Assembly (620145 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T158719	1	Snap Ring	-
2	T159519	1	Snap Ring	-
3	T171156	1	Bearing	-
4	T294935	1	Bearing	Important - High Tolerance Bearing Required in this Location. Use ONLY John Deere Parts Sourced Bearings., SUB FOR T171156
5	T172104	1	Disk	-
6	T172115	2	Piston Ring	-
7	T172129	2	Thrust Bearing	-
8	T172130	3	Thrust Washer	-
9	T181873	1	Snap Ring	2.4 mm
9	T181874	1	Snap Ring	2.7 mm
9	T181875	1	Snap Ring	3.0 mm
9	T181876	1	Snap Ring	3.3 mm
9	T172247	1	Snap Ring	3.6 mm
9	T172251	1	Snap Ring	4.2 mm
11	T173636	1	Disk With Outer Spline	-
12	T173637	5	Disk With Outer Spline	-
13	T173638	5	Disk With Inner Spline	-
14	T294876	1	Solid Shim	SUB FOR T173639
15	T173839	7	Disk Spring	-
16	T310104	1	Bearing	Important - High Tolerance Bearing Required in this Location. Use ONLY John Deere Parts Sourced Bearings., SUB FOR T173849
17	T173853	1	Piston	-
18	T173855	1	Idler	-
19	T173859	1	Gear	-
20	T294888	1	Shaft	SUB FOR T173860
21	T173958	1	O-Ring	-
22	T173960	1	O-Ring	-
23	T179594	1	Needle Bearing	-
28	T242449	1	Snap Ring	-
29	AT531694	1	Clutch Kit	SUB FOR AT531694

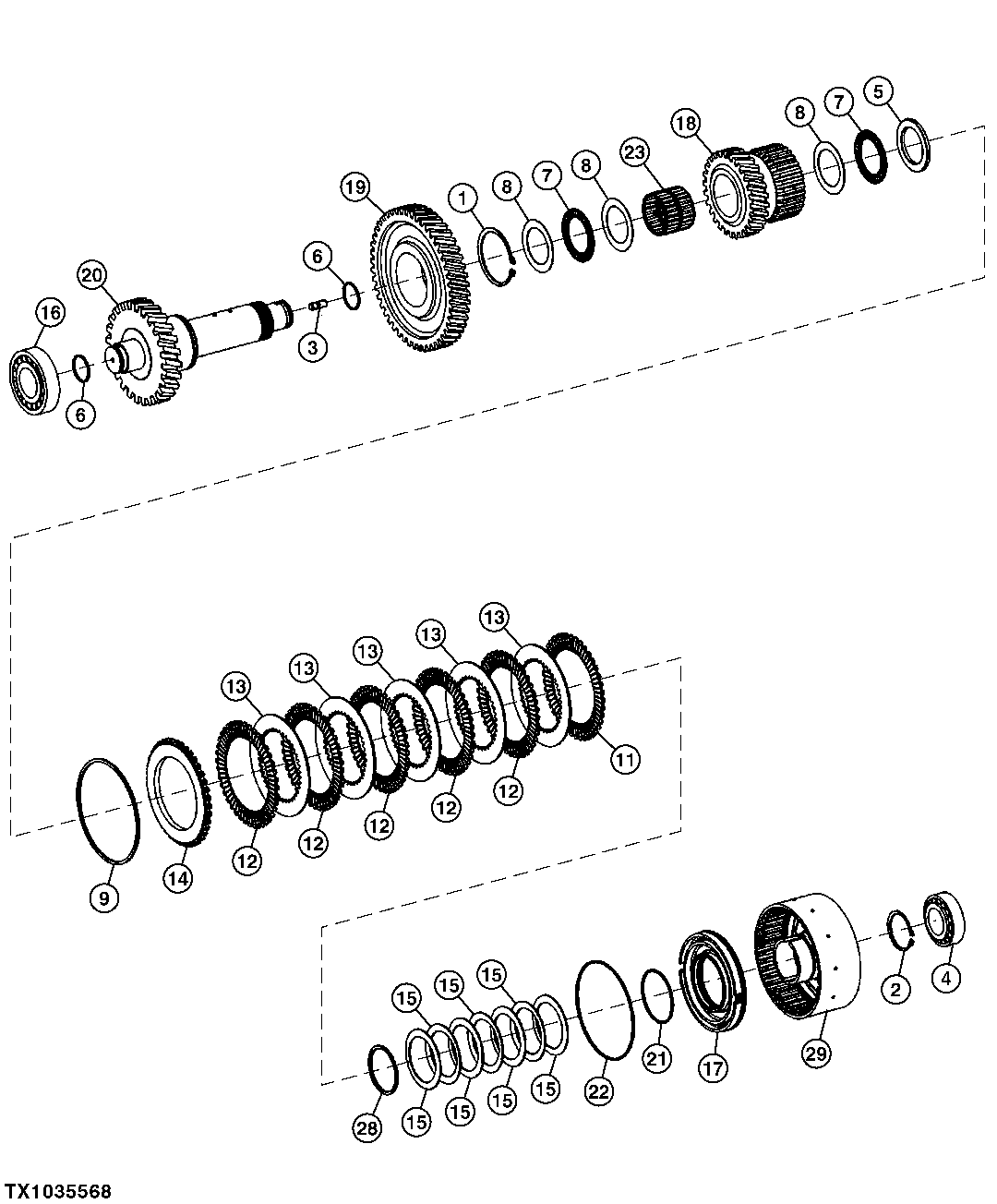

High Range Forward Clutch Assembly (620145 - )
