High Range Forward Clutch Assembly ( - 620144)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T173637	5	Disk With Outer Spline	-
2	T173638	5	Disk With Inner Spline	-
3	T179594	1	Needle Bearing	-
4	T173855	1	Idler	-
5	T172130	3	Thrust Washer	-
6	T172129	2	Thrust Bearing	-
7	T172104	1	Disk	-
8	T172247	1	Snap Ring	TK = 3.60 mm
8	T172251	1	Snap Ring	TK = 4.20 mm
8	T181873	1	Snap Ring	TK = 2.40 mm
8	T181874	1	Snap Ring	TK = 2.70 mm
8	T181875	1	Snap Ring	TK = 3.00 mm
8	T181876	1	Snap Ring	TK = 3.30 mm
9	T294876	1	Solid Shim	SUB FOR T173639
10	T173067	1	Snap Ring	-
11	T173066	1	Snap Ring	-
12	T173839	7	Disk Spring	-
13	T173853	1	Piston	-
14	T173958	1	O-Ring	-
15	T173960	1	O-Ring	-
16	T173854	1	Housing	-
17	T159519	1	Snap Ring	-
18	T294935	1	Bearing	Important - High Tolerance Bearing Required in this Location. Use ONLY John Deere Parts Sourced Bearings., SUB FOR T171156
19	T310104	1	Bearing	Important - High Tolerance Bearing Required in this Location. Use ONLY John Deere Parts Sourced Bearings., SUB FOR T173849
20	T172115	2	Piston Ring	-
21	T173636	1	Disk With Outer Spline	-
22	T294888	1	Shaft	SUB FOR T173860
23	T171153	1	Stud	-
24	T173859	1	Gear	-
25	T158719	1	Snap Ring	-

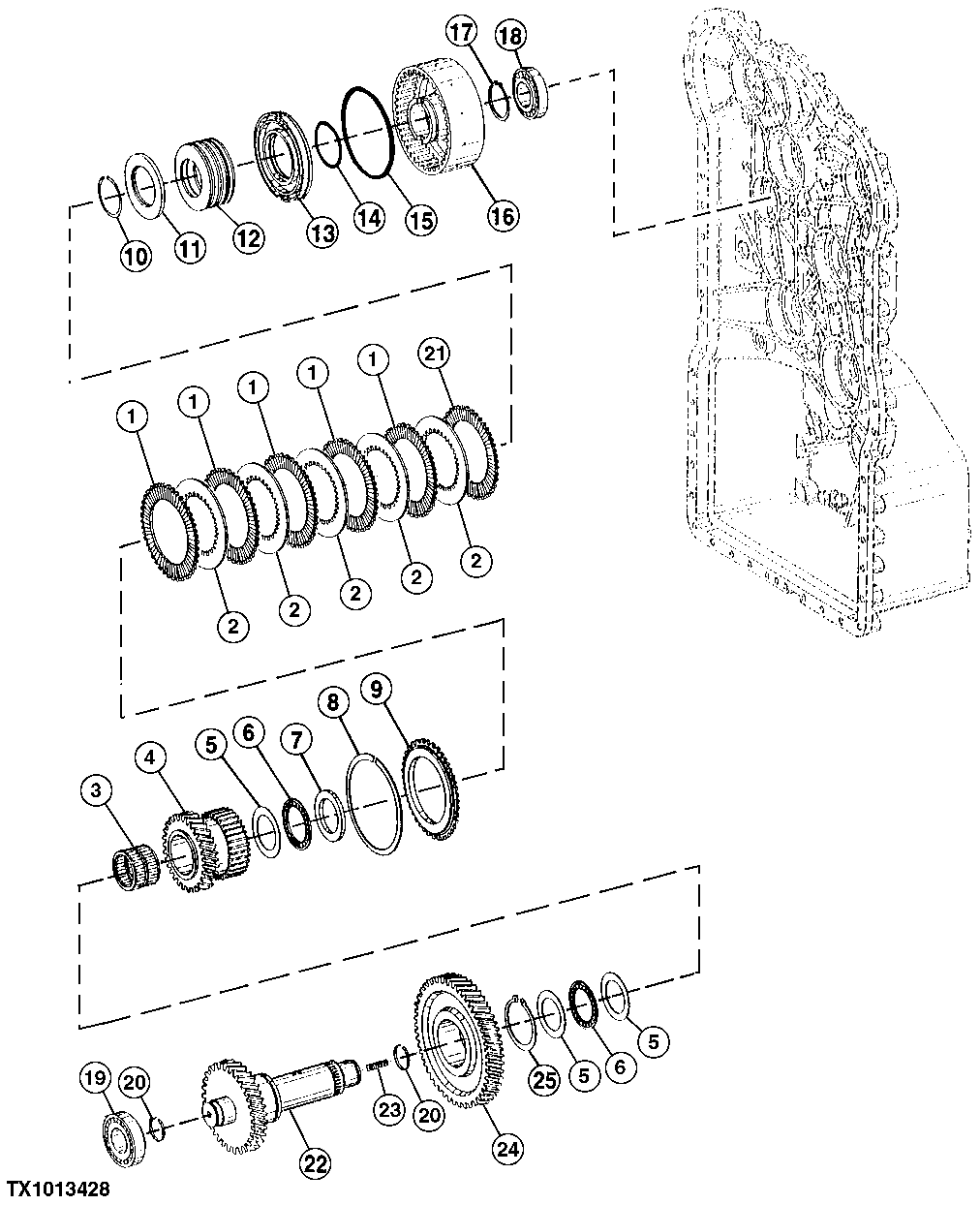

High Range Forward Clutch Assembly ( - 620144)
