Standard Coupler (Powerllel™) ( - 609882)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7328	2	Lock Nut	M16
2	19M7489	3	Cap Screw	M16 X 45
3	19M8342	2	Screw	M16 X 90
4	24M7338	6	Washer	17 X 30 X 3 mm
5	38H1004	1	Elbow Fitting	-
6	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
7	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
8	38H1173	1	Adapter Fitting	-
9	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
11	-	1	Part 13	( AT317972 NLA), (USE WITH AH217541 ) (SUB AT336450, (2) T227405, AH223400, (2) T61226, (2) H89151, (4) 19M8011, (4) 24M7240, (2) 38H1160, T227552 AND AT336884)
11	-	1	Part 12	( AT301470 NLA), (USE WITH AH212349 ) (SUB AT320691)
12	AT301520	1	Pin Fastener	-
13	AT301543	2	Pin	-
14	JD7759	4	Lubrication Fitting	-
15	T101480	4	Washer	91.500 X 160 X 3 mm (3.602" X 6.299" X 0.118")
16	T102171	8	Washer	66.500 X 108 X 3 mm (2.618" X 4.252" X 0.118")
17	T176064	3	Bushing	16.300 X 28.600 X 21.900 mm (0.642" X 1.126" X 0.862")
19	H89151	2	Dowel Pin	12.700 X 45.720 mm (1/2" X 1.800")
20	T61226	2	Snap Ring	-
21	-	1	Part 24	( <service-part>T213440</service-part> NLA)
22	-	1	Part 25	( T213441 NLA)
23	-	1	Part 26	(NLA), (SUB AT320691)
10A	AH212349	1	Hydraulic Cylinder	(COMPONENTS LISTED ON ANOTHER PAGE)
10B	AH217541	1	Hydraulic Cylinder	(COMPONENTS LISTED ON ANOTHER PAGE)
18A	T209423	2	Pin Fastener	-
18B	T213442	2	Pin Fastener	50.885 X 193 mm (2.003" X 7.598")

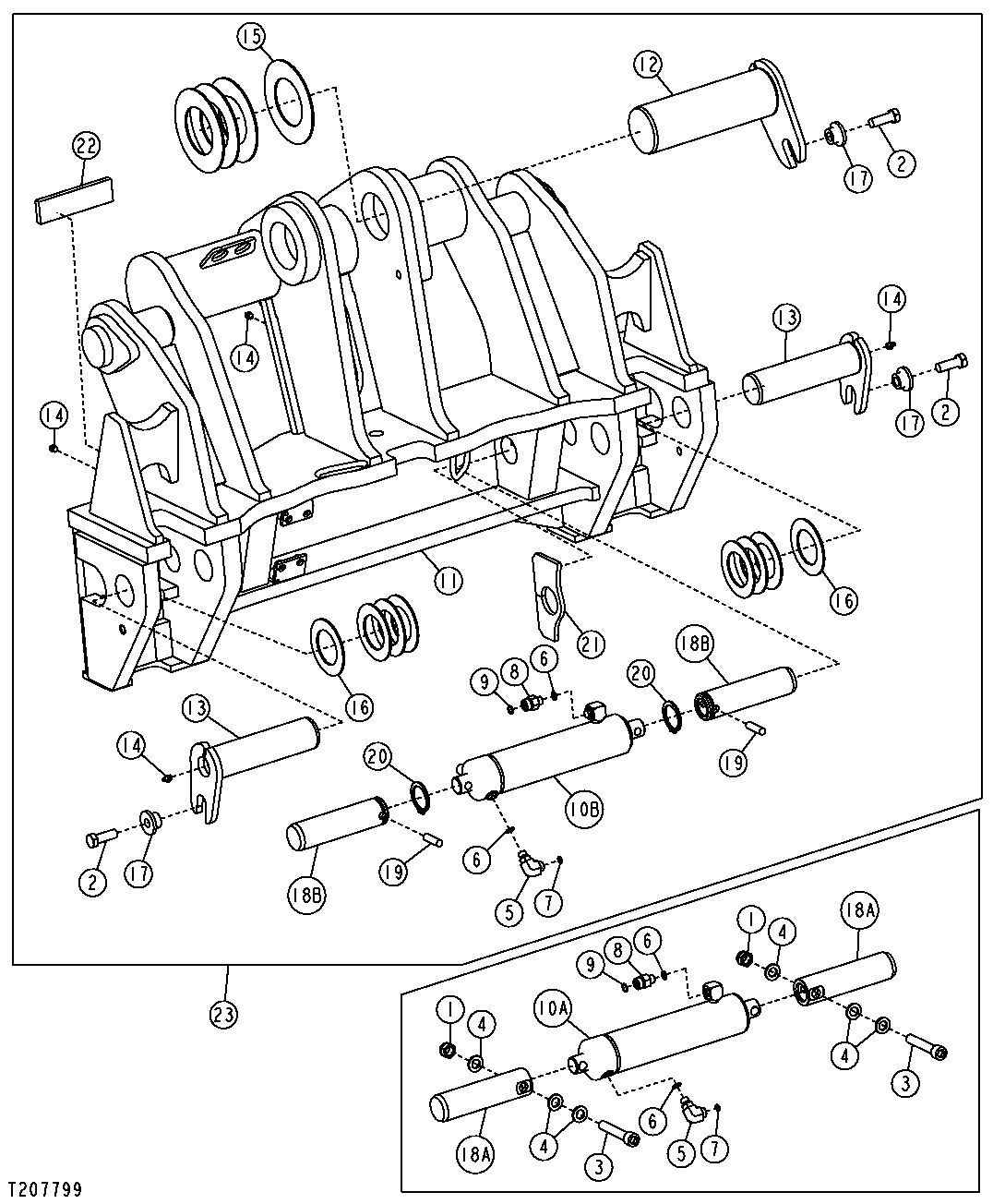

Standard Coupler (Powerllel™) ( - 609882)
