Открытый узел

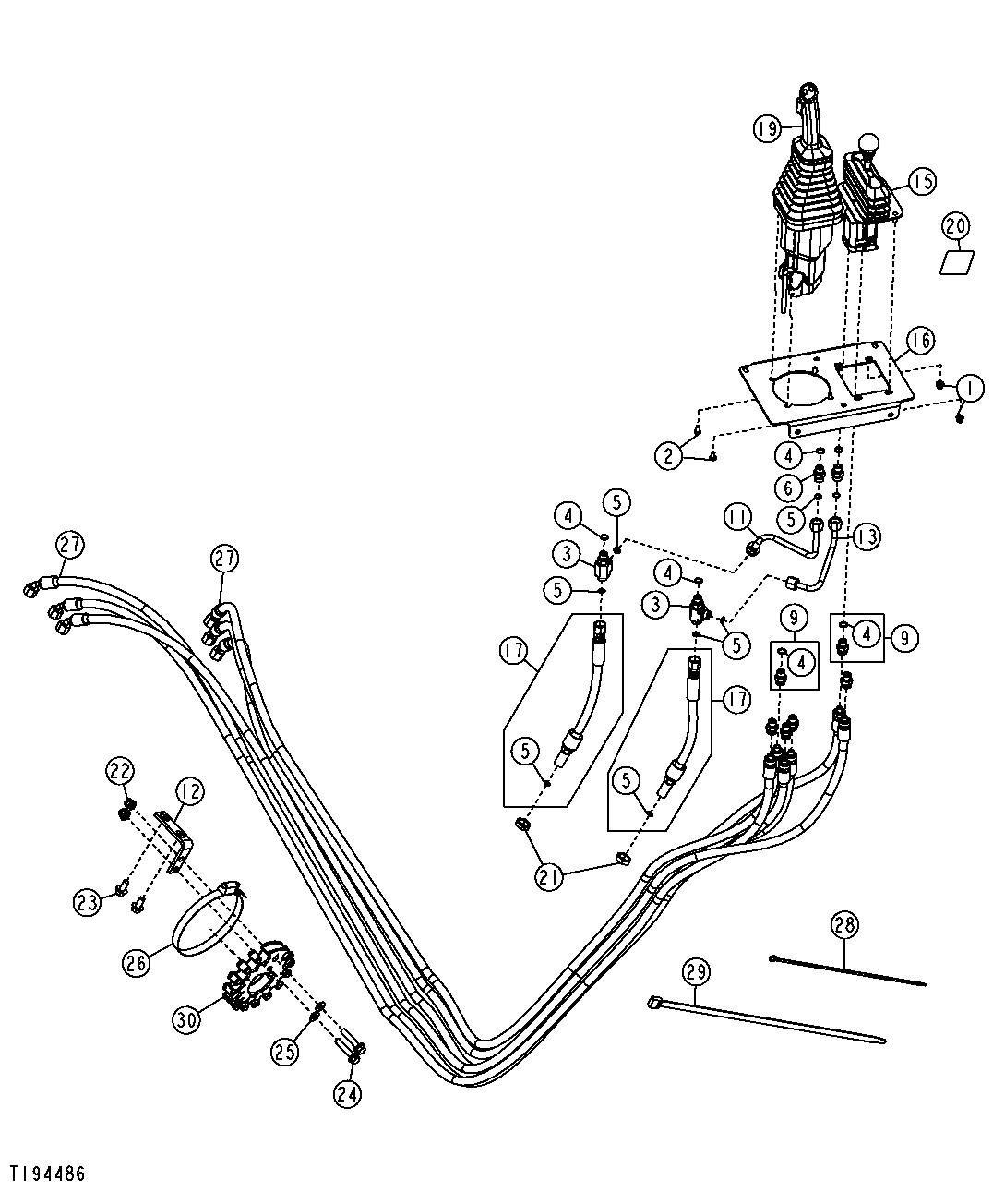

Joystick Pilot Controller With Auxiliary

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7397	4	Lock Nut	M6
2	19M9831	4	Screw	M6 X 16
3	38H1023	2	Tee Fitting	-
4	R26448	10	O-Ring	-
5	T77613	8	O-Ring	-
6	38H1160	2	Adapter Fitting	-
9	62H1001	6	Adapter Fitting	SUB FOR 63H1001
11	AT226132	1	Oil Line	-
12	T157443	1	Angle	-
13	AT226133	1	Oil Line	-
15	AT228250	1	Hydr./Pilot Control Valve	-
16	AT228261	1	Plate	-
17	AT228703	2	Hydraulic Hose	-
19	AT362747	1	Hydr./Pilot Control Valve	Without Forward Neutral Reverse (FNR), ORDER AT488660; SUB FOR AT301458, AT315847 OR AT356033
19	AT488660	1	Hydr./Pilot Control Valve	Joystick Controller Component on Separate Page
19	AT362746	1	Hydr./Pilot Control Valve	With Forward Neutral Reverse (FNR), ORDER AT488662; SUB FOR AT300664 OR AT315846 OR AT356032
19	AT488662	1	Hydr./Pilot Control Valve	Component on Separate Page
20	T197182	1	Label	With Forward Neutral Reverse (FNR)
20	T203670	1	Label	Without Forward Neutral Reverse (FNR)
21	T81029	2	Nut	-
22	14M7400	2	Lock Nut	M10
23	19M7784	2	Screw	M10 X 20
24	19M7806	2	Screw	M10 X 50
25	24M7239	2	Washer	10.700 X 21 X 2.500 mm
26	TY22493	1	Hose Clamp	-
27	AT226615	6	Hydraulic Hose	Fabricate, ALSO ORDER 62H1042 AND T77613
28	H77698	6	Tie Band	-
29	N189220	4	Tie Band	-
30	T154342	1	Retainer	-
31	AT309843	1	Wiring Harness	Kickdown Harness For Controller Without Forward Neutral Reverse (FNR) Not Illustrated
98	AT305693	1	Cab Kit	Two Lever With Auxiliary To Joystick With Auxiliary Conversion With Forward Neutral Reverse (FNR)
98	AT311818	1	Field Installation Kit	Two Lever With Auxiliary To Joystick With Auxiliary Conversion Kit Without Forward Neutral Reverse (FNR), NLA
99	AT307435	1	Control Lever	Addition Of Auxiliary To Joystick Controller Kit Whole Goods
99	AT316650	1	Field Installation Kit	Addition Of Auxiliary To Joystick Controller Kit Whole Goods
99	AT314647	1	Field Installation Kit	Addition Of Auxiliary To Powerllel™ Linkage Joystick Controller Kit Whole Goods
99	AT307657	1	Control Lever	Addition Of Auxiliary To Tool Carrier Joystick Controller Kit Whole Goods, NLA

Joystick Pilot Controller With Auxiliary

Нет текстового описания
