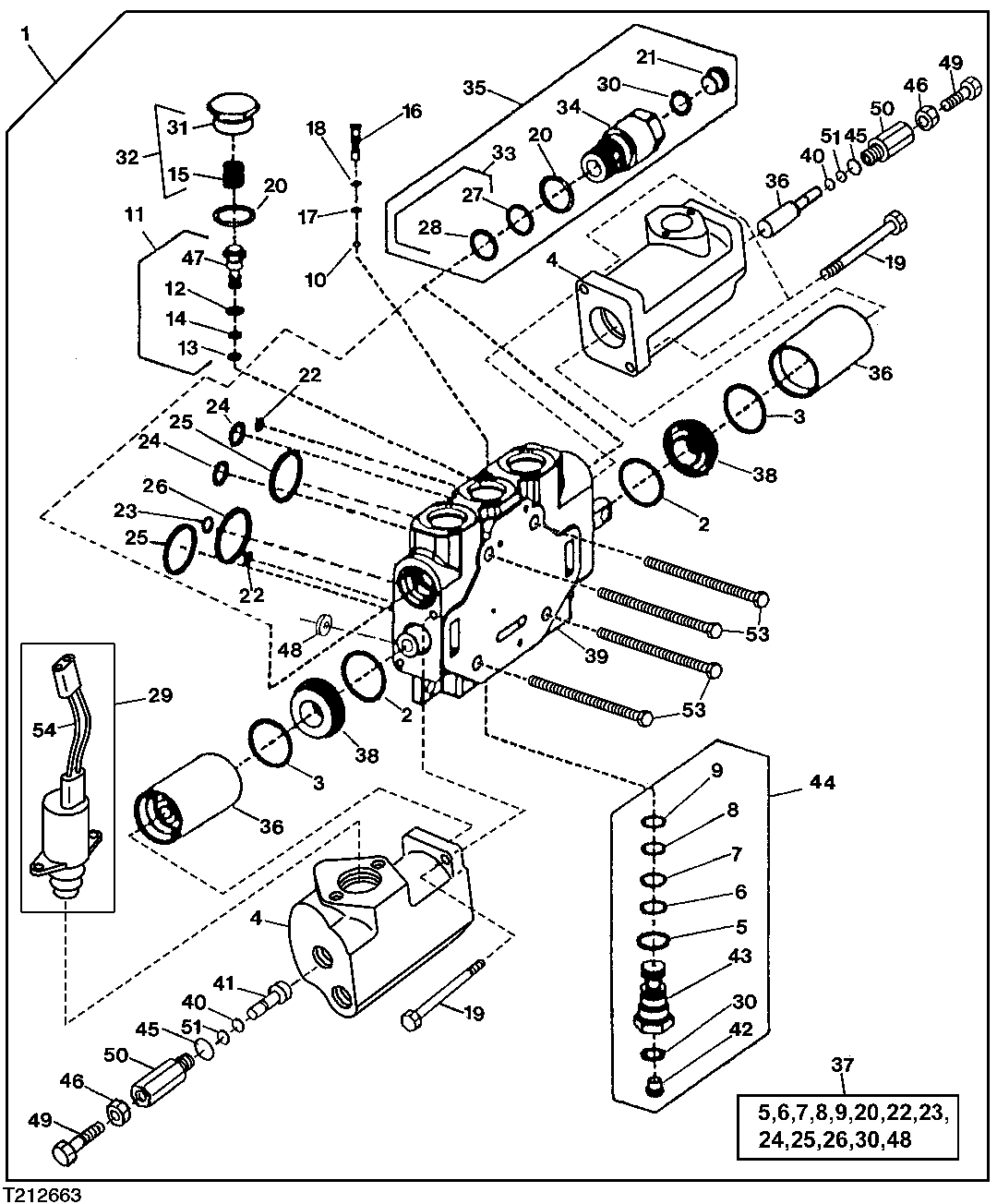

Fifth Function Valve Section ( - 595139)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT225143	1	Flow Control Hyd. Valve	-
2	-	2	Part 2	-
3	-	2	Part 3	-
4	-	2	Part 4	-
5	-	1	Part 5	-
6	-	1	Part 6	-
7	-	1	Part 7	-
8	-	1	Part 8	-
9	-	1	Part 9	-
10	A4742R	1	Ball	-
11	AT220827	1	Compensator	-
12	-	1	Part 12	-
13	-	1	Part 13	-
14	-	1	Part 14	-
15	-	1	Part 15	-
16	T172562	1	Check Valve	-
17	-	1	Part 17	-
18	-	1	Part 18	-
19	T174025	4	Cap Screw	-
20	U12547	2	O-Ring	-
21	-	1	Part 21	-
22	U40962	2	O-Ring	-
23	-	1	Part 23	-
24	-	2	Part 24	-
25	-	2	Part 25	-
26	-	1	Part 26	-
27	T154187	2	Back-Up Ring	-
28	AT124574	2	O-Ring	-
29	AT224850	2	Solenoid Valve	(INCLUDES WIRING HARNESS, <service-part>AT326581</service-part>)
30	R26287	2	O-Ring	-
31	-	1	Part 31	-
32	AT220831	1	Plug Kit	-
32	R29936	1	O-Ring	-
33	AT170991	2	O-Ring Kit	INCLUDES U12547
33	U12547	1	O-Ring	-
34	-	1	Part 36	-
35	AT209750	2	Pressure Relief Valve	-
36	-	2	Part 38	-
36	-	2	Part 39	-
37	AT210685	1	Seal Kit	-
38	-	2	Part 41	-
39	AT210684	1	Spool Valve	-
40	T77814	2	O-Ring	-
41	-	2	Part 44	-
42	-	1	Part 45	SUB FOR AT210686
43	-	1	Part 46	SUB FOR AT210686
44	AT210686	1	Check Valve	-
45	R26906	2	O-Ring	-
46	14H856	2	Nut	1/2"
47	-	4	Part 50	-
48	-	1	Part 51	One On Each Tie Bolt
49	22H1022	2	Set Screw	1/2" X 1-1/2"
50	-	2	Part 53	SUB FOR AT220035
51	R61463	2	Back-Up Ring	-
52	-	1	Part 55	(NOT ILLUSTRATED)
52	-	1	Part 56	WHOLE GOODS Fifth Function Auxillary Valve
53	AT325146	4	Stud	(TIE BOLT)
54	AT326581	2	MFWD Solenoid WRG Harness	-

Fifth Function Valve Section ( - 595139)
