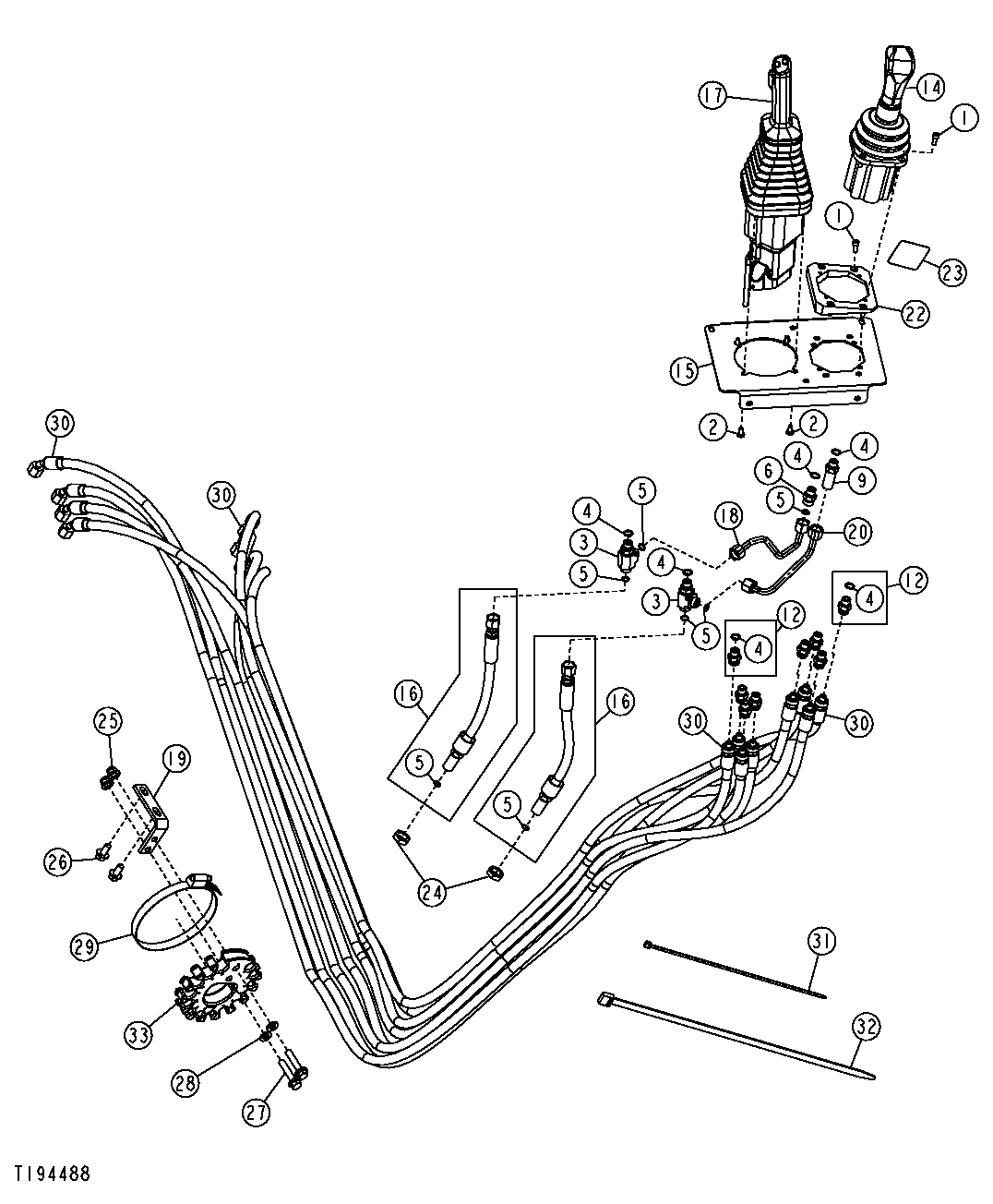

Dual Pilot Controller

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M8553	8	Screw	M6 X 16
2	21M7285	4	Screw	M6 X 12
3	38H1023	2	Tee Fitting	-
4	R26448	12	O-Ring	-
5	T77613	8	O-Ring	-
6	38H1160	1	Adapter Fitting	-
9	38H1212	1	Adapter Fitting	-
12	62H1001	8	Adapter Fitting	SUB FOR 63H1001
14	AT208760	1	Multi-Functional Controller	Components Listed On Separate Page
15	AT228260	1	Plate	-
16	AT228703	2	Hydraulic Hose	-
17	AT362747	1	Hydr./Pilot Control Valve	Components Listed On Separate Page Without Forward Neutral Reverse (FNR), SUB FOR AT301458, AT315847 OR AT356033
17	AT362746	1	Hydr./Pilot Control Valve	Components Listed On Separate Page With Forward Neutral Reverse (FNR), SUB FOR AT300664 OR AT315846 OR AT356032
18	AT304880	1	Oil Line	-
19	T157443	1	Angle	-
20	AT304881	1	Oil Line	-
22	T201887	1	Spacer	-
23	T203670	1	Label	-
24	T81029	2	Nut	-
25	14M7400	2	Lock Nut	M10
26	19M7784	2	Screw	M10 X 20
27	19M7806	2	Screw	M10 X 50
28	24M7239	2	Washer	10.700 X 21 X 2.500 mm
29	TY22493	1	Hose Clamp	SUB FOR AR89602
30	AT226615	8	Hydraulic Hose	Fabricate, ALSO ORDER 62H1042 AND T77613
31	H77698	6	Tie Band	-
32	N189220	4	Tie Band	-
33	T154342	1	Retainer	-
34	AT309843	1	Wiring Harness	Not Illustrated Kickdown Harness For Controller Without Forward Neutral Reverse (FNR)
98	AT307487	1	Control Lever	Addition Of Auxiliary Joystick To Joystick Controller Kit Whole Goods, NLA
98	AT316651	1	Field Installation Kit	Addition Of Auxiliary Joystick To Joystick Controller Kit Whole Goods, NLA
98	AT314764	1	Field Installation Kit	Addition Of Auxiliary Joystick To Powerllel™ Linkage Joystick Controller Kit Whole Goods, NLA
98	AT307622	1	Control Lever	Addition Of Auxiliary Joystick To Tool Carrier Joystick Controller Kit Whole Goods, NLA
