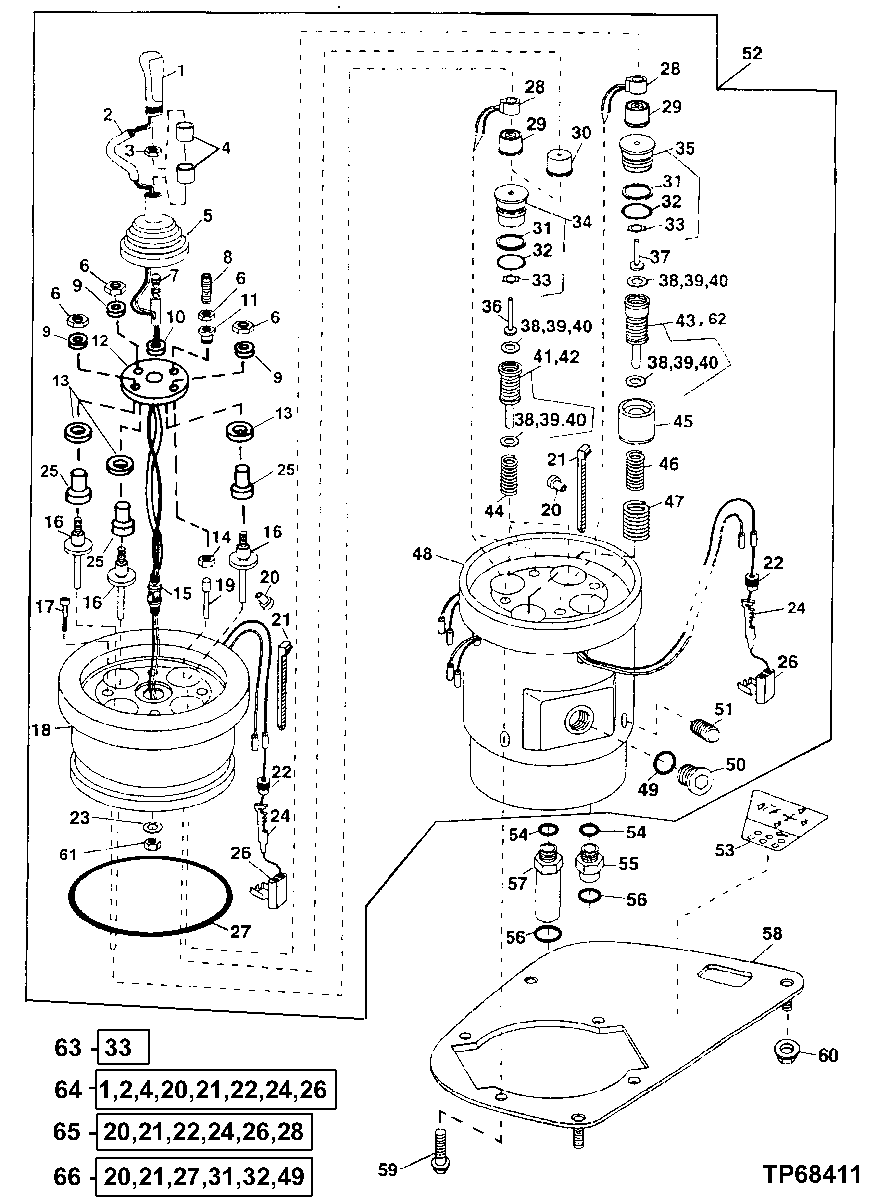

Single Lever Pilot Controller ( - 585700)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT208188	1	Grip	-
2	-	1	Part 2	-
3	T170269	1	Nut	-
4	AT208911	1	Retainer	-
5	T170293	1	Boot	(ALSO ORDER AT208911)
6	T170275	4	Nut	-
7	T173178	1	Lever	-
8	T172523	1	Set Screw	-
9	T173181	3	Washer	-
10	T173205	1	Washer	-
11	T170273	1	Fitting	-
12	T173180	1	Plate	-
13	T173182	3	Washer	-
14	T170272	1	Nut	-
15	AT210249	1	Post	-
16	AT210250	3	Ball Joint Socket	-
17	T170263	4	Cap Screw	-
18	-	1	Part 18	(SUB AT210209)
19	T170274	1	Pin	-
20	T170266	4	Grommet	-
21	T170262	4	Strap	-
22	R78059	8	Elec. Connector Seal	-
23	T172522	1	Washer	-
24	R78058	8	Elec. Connector Terminal	-
25	T173179	1	Nut	-
26	R78053	4	Electrical Connector Assy	-
27	-	1	Part 27	(SUB AT210209)
28	T170283	3	Electrical Coil	-
29	T170284	3	Retainer	-
30	T170278	1	Bushing	(BUCKET DUMP)
31	T170307	1	Back-Up Ring	-
32	T170306	1	Seal	-
33	T131617	2	Ring	-
34	AT208178	2	Retainer	(BUCKET DUMP AND BOOM RAISE)
34	AT208178	1	Retainer	(BOOM RAISE) (USE WITH TOOL CARRIER AND LOG LOADER)
35	AT208179	2	Retainer	(BOOM LOWER AND BUCKET ROLL-BACK)
35	AT208179	3	Retainer	(BOOM LOWER, BUCKET DUMP AND BUCKET ROLL-BACK) (USE WITH TOOL CARRIER AND LOG LOADER)
36	T170285	1	Plunger	(BOOM RAISE) (USE WITH TOOL CARRIER AND LOG LOADER)
36	T170285	2	Plunger	-
37	T170286	2	Plunger	-
37	T170286	3	Plunger	(BOOM LOWER, BUCKET DUMP AND BUCKET ROLL-BACK) (USE WITH TOOL CARRIER AND LOG LOADER)
38	T103092	1	Shim	-
39	T103093	1	Shim	-
40	T103094	1	Shim	-
41	AT208182	1	Spool	(BUCKET DUMP)
42	AT208181	1	Spool	(BOOM RAISE)
42	AT208181	1	Spool	(BOOM RAISE) (USE WITH TOOL CARRIER AND LOG LOADER)
43	AT208183	1	Spool	(BOOM LOWER)
43	AT208183	3	Spool	(BOOM LOWER, BUCKET DUMP AND BUCKET ROLL-BACK) (USE WITH TOOL CARRIER AND LOG LOADER)
44	T170288	2	Spring	-
44	T170288	1	Spring	(USE WITH TOOL CARRIER AND LOG LOADER)
45	AT208180	2	Retainer Kit	-
46	T170289	2	Spring	-
46	T170289	3	Spring	(USE WITH TOOL CARRIER AND LOG LOADER)
47	T170287	2	Spring	-
47	T170287	3	Spring	(USE WITH TOOL CARRIER AND LOG LOADER)
48	-	1	Part 57	(SUB AT210209)
49	R26375	2	O-Ring	-
50	-	2	Part 59	(SUB AT210209)
51	-	2	Part 60	(SUB AT210209)
52	AT210209	1	Hyd Actuated Control Valve	-
52	AT208128	1	Hyd Actuated Control Valve	(USE WITH TOOL CARRIER AND LOG LOADER)
53	T146659	1	Label	NLA
54	R26448	6	O-Ring	-
55	38H1160	5	Adapter Fitting	-
56	T77613	6	O-Ring	-
57	38H1212	1	Adapter Fitting	-
58	AT203087	1	Plate	NLA
58	AT224241	1	Plate	GRAY
59	21M7285	4	Screw	M6 X 12
60	14M7397	3	Lock Nut	M6
61	14H849	1	Nut	7/16"
62	AT209789	1	Spool	(BUCKET ROLL-BACK) (USE WITH TOOL CARRIER AND LOG LOADER)
63	AT104041	1	Seal Kit	(ALSO ORDER <service-part qty="1">AT115876</service-part>)TUBE OF GREASE
64	AT209784	1	Grip	(WITH KICKDOWN PLATE)
65	AT209788	1	Coil Kit	(COIL)
66	AT209779	1	Seal Kit	(SINGLE LEVER)

Single Lever Pilot Controller ( - 585700)
