LOADER FRAME (FOR USE WITH TOOL CARRIER AND LOG LOADER)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7786	4	Screw	M10 X 30
2	24M7296	4	Washer	10.500 X 30 X 2.500 mm
3	T157234	2	Cover	-
4	T171734	1	Washer	-
5	AT318925	2	Pin	(SUB FOR <service-part qty="1">AT207717</service-part>)BOOM PIVOT
6	JD7759	6	Lubrication Fitting	-
7	19M7489	6	Cap Screw	M16 X 45
8	T146246	2	Washer	-
9	T176064	6	Bushing	-
10	AT207719	4	Pin	-
11	19M7493	12	Cap Screw	M12 X 40
11	19M7496	12	Cap Screw	M12 X 45
12	24M7240	12	Washer	13 X 25 X 3 mm
13	T157029	2	Seal	-
14	-	2	Part 15	( T156992 NLA), (SUB (2) T200888 AND (12) 19M7496)
14	T200888	2	Cover	-
15	T130057	1	Shim	-
16	T130058	1	Shim	-
17	T130059	1	Shim	-
18	AT203483	2	Bearing	-
19	T157030	2	Spacer	-
20	19M8029	2	Cap Screw	M16 X 30
21	AT345967	2	Pin	(SUB FOR AT133204 OR AT203570)
22	24H1558	6	Washer	1-41/64" X 2-3/8" X 0.075"
22	24H1556	2	Washer	1-41/64" X 2-3/8" X 0.048"
23	T156999	1	Pin	-
23	T182516	1	Pin	-
24	T60752	2	Seal	-
25	T182265	1	Bushing	(SUB FOR <service-part qty="1">T156994</service-part>)(USE <service-part >T156994</service-part> UNTIL SUPPLIES ARE EXAUSTED)
26	-	1	Part 30	( <service-part>AT209489</service-part> NLA)
27	14M7300	12	Flange Nut	M20
28	24M7242	24	Washer	21.400 X 42 X 5 mm
29	19M7779	12	Cap Screw	M20 X 240
30	JD7759	2	Lubrication Fitting	-

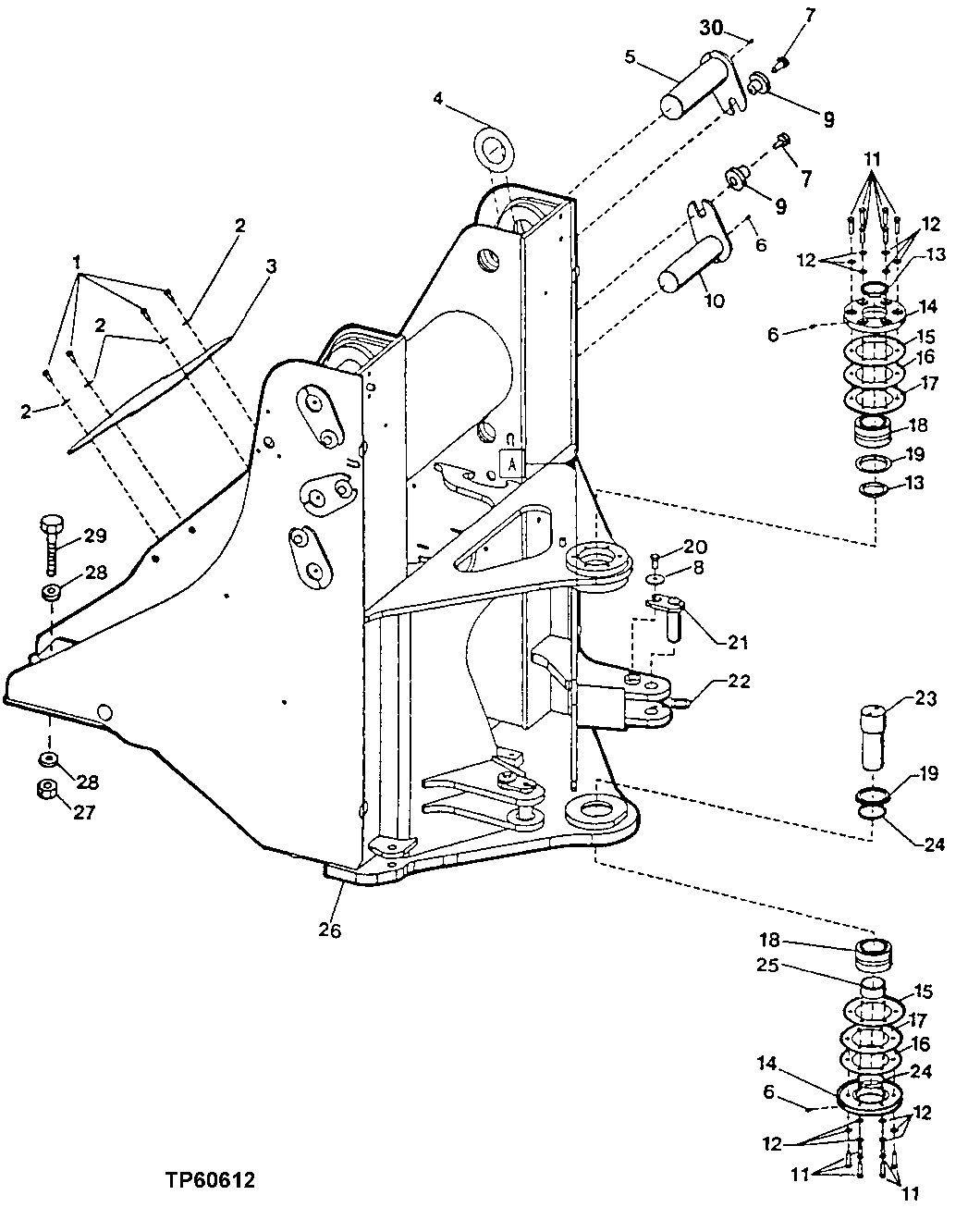

LOADER FRAME (FOR USE WITH TOOL CARRIER AND LOG LOADER)
