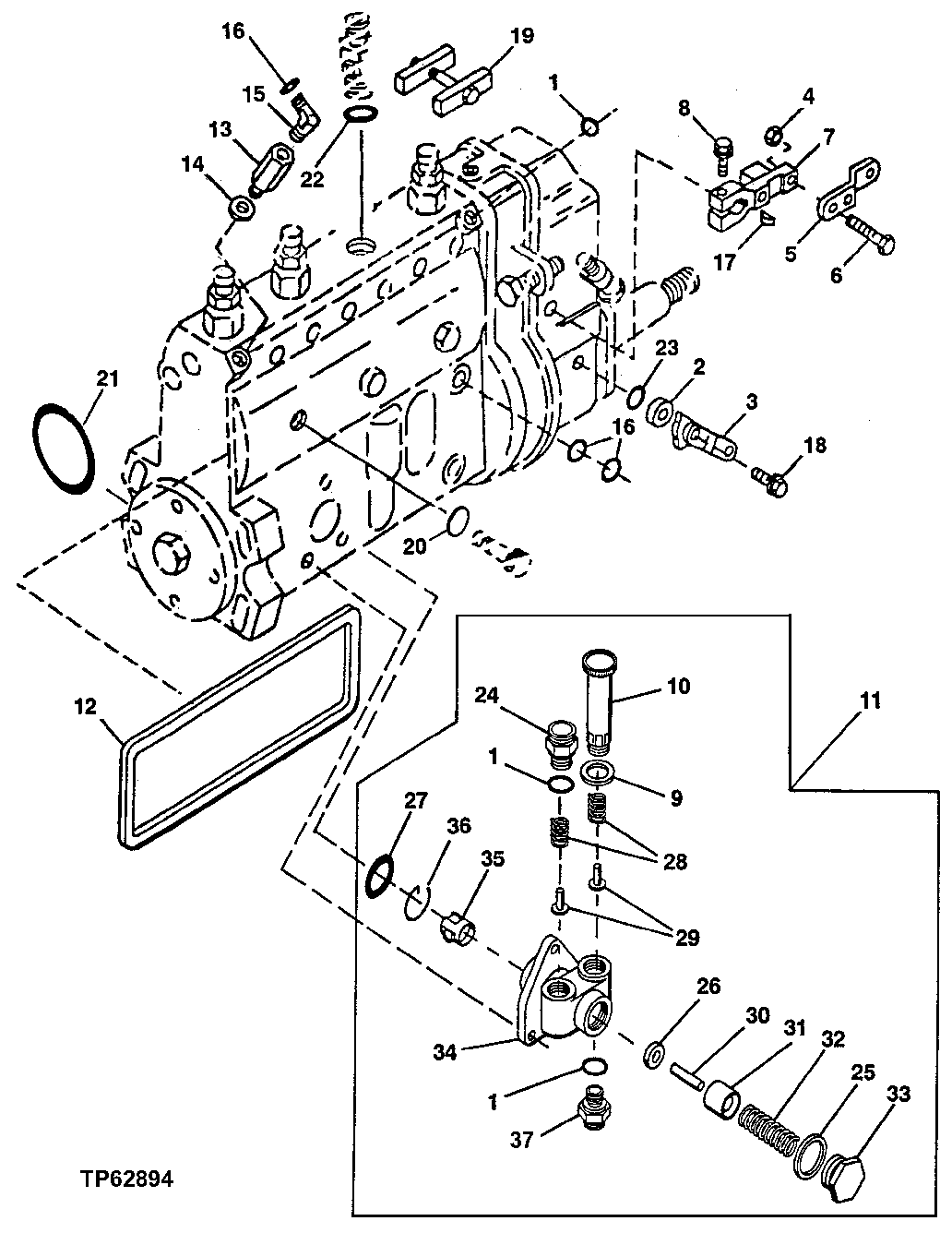

FUEL INJECTION PUMP LEVERS AND TRANSFER PUMP ( - 895935)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	51M7041	3	O-Ring	(DUBUQUE T0 ESN) 11.300 X 2.200 mm
2	R64995	1	Retainer	(DUBUQUE T0 ESN)
3	R135163	1	Lever	(DUBUQUE T0 ESN)
4	R64989	1	Lock Nut	(DUBUQUE T0 ESN)
5	R135874	1	Lever	(DUBUQUE T0 ESN)
6	R65437	1	Cap Screw	(DUBUQUE T0 ESN)
7	R64967	1	PRY Bar	(DUBUQUE T0 ESN)
8	R64969	1	Screw	(DUBUQUE T0 ESN)
9	R64854	1	Washer	(DUBUQUE T0 ESN)
10	RE500376	1	Hand Primer	(DUBUQUE T0 ESN)
11	RE500375	1	Fuel Pump	(DUBUQUE T0 ESN)
12	R500220	1	Gasket	(DUBUQUE T0 ESN)
13	RE500374	1	Control Valve	(DUBUQUE T0 ESN)
14	R64857	1	Washer	(DUBUQUE T0 ESN)
15	RE502173	1	Fitting	(DUBUQUE T0 ESN) (SUB FOR RE60185)
16	51M7039	2	O-Ring	(DUBUQUE T0 ESN) 8.100 X 1.600 mm
17	R64968	1	Shaft Key	(DUBUQUE T0 ESN)
18	R73885	1	Screw	(DUBUQUE T0 ESN)
19	R77536	1	Jaw	(DUBUQUE T0 ESN)
20	R78773	1	Packing	(DUBUQUE T0 ESN)
21	R73864	1	O-Ring	(DUBUQUE T0 ESN)
22	R73821	6	O-Ring	(DUBUQUE T0 ESN)
23	R64997	1	O-Ring	(DUBUQUE T0 ESN)
24	RE60031	1	Fitting	(DUBUQUE T0 ESN)
25	R64861	1	Washer	(DUBUQUE T0 ESN)
26	R502362	1	Seal	(DUBUQUE T0 ESN)
27	R64927	1	O-Ring	(DUBUQUE T0 ESN)
28	-	1	Part 28	(DUBUQUE T0 ESN)
29	-	1	Part 29	(DUBUQUE T0 ESN)
30	-	1	Part 30	(DUBUQUE T0 ESN)
31	-	1	Part 31	(DUBUQUE T0 ESN)
32	-	1	Part 32	(DUBUQUE T0 ESN)
33	-	1	Part 33	(DUBUQUE T0 ESN)
34	-	1	Part 34	(DUBUQUE T0 ESN)
35	-	1	Part 35	(DUBUQUE T0 ESN)
36	-	1	Part 36	(DUBUQUE T0 ESN)
37	38H5002	1	Adapter Fitting	(DUBUQUE T0 ESN)

FUEL INJECTION PUMP LEVERS AND TRANSFER PUMP ( - 895935)
