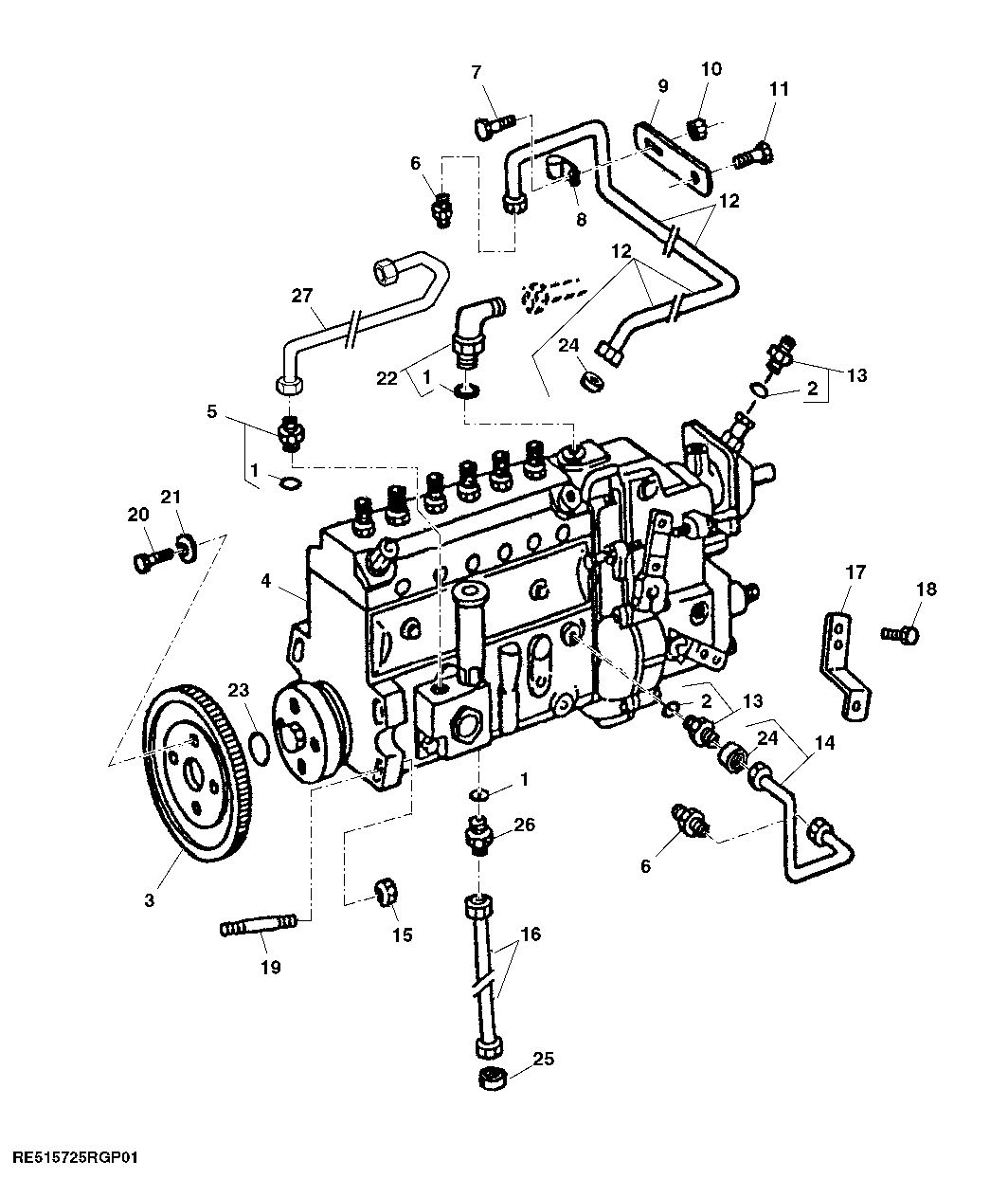

FUEL INJECTION PUMP AND LUBE LINES ( - 895935)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	51M7041	3	O-Ring	(DUBUQUE T0 ESN) 11.300 X 2.200 mm
2	51M7039	2	O-Ring	(DUBUQUE T0 ESN) 8.100 X 1.600 mm
3	R500084	1	Gear	(DUBUQUE T0 ESN) (Z=60)
4	RE59958	1	Fuel Injection Pump	(DUBUQUE T0 ESN) (AS2500) ( 24-V)
4	SE500845	1	Fuel Injection Pump Reman	(DUBUQUE T0 ESN) PKG 1, (REMAN FOR RE59958)
5	RE60031	1	Fitting	(DUBUQUE T0 ESN)
6	R63604	2	Fitting	(DUBUQUE T0 ESN)
7	19M7865	1	Screw	(DUBUQUE T0 ESN) M8 X 16
8	T74410	1	Clamp	(DUBUQUE T0 ESN)
9	R56588	1	Strap	(DUBUQUE T0 ESN)
10	14M7298	1	Flange Nut	(DUBUQUE T0 ESN) M8
11	19M8324	1	Cap Screw	(DUBUQUE T0 ESN) M10 X 16
12	RE60194	1	Aneroid Line	(DUBUQUE T0 ESN)
12	RE70285	1	Aneroid Line	(DUBUQUE T0 ESN)
12	RE506237	1	Aneroid Line	(DUBUQUE T0 ESN)
13	RE60028	2	Fitting	(DUBUQUE T0 ESN)
14	RE60064	1	Oil Line	(DUBUQUE T0 ESN)
15	14M7296	4	Flange Nut	(DUBUQUE T0 ESN) M10
16	RE44843	1	Fuel Line	(DUBUQUE T0 ESN)
16	R67092	1	Sealing Washer	(DUBUQUE T0 ESN)
17	R110195	1	Lever	(DUBUQUE T0 ESN)
18	19M8826	2	Screw	(DUBUQUE T0 ESN) M6 X 16
19	R134212	4	Stud	(DUBUQUE T0 ESN)
20	19H3336	4	Screw	(DUBUQUE T0 ESN) 3/8" X 7/8"
21	R63845	4	Washer	(DUBUQUE T0 ESN)
22	RE502174	1	Elbow Fitting	(DUBUQUE T0 ESN) (SUB FOR RE60187)
23	R73864	1	O-Ring	(DUBUQUE T0 ESN) 75 X 3 mm (2-61/64" X 0.118")
24	R51936	4	Sealing Washer	(DUBUQUE T0 ESN)
25	R67092	2	Sealing Washer	(DUBUQUE T0 ESN)
26	38H5002	1	Adapter Fitting	(DUBUQUE T0 ESN)
27	RE507882	1	Fuel Line	(DUBUQUE T0 ESN)

FUEL INJECTION PUMP AND LUBE LINES ( - 895935)
