Открытый узел

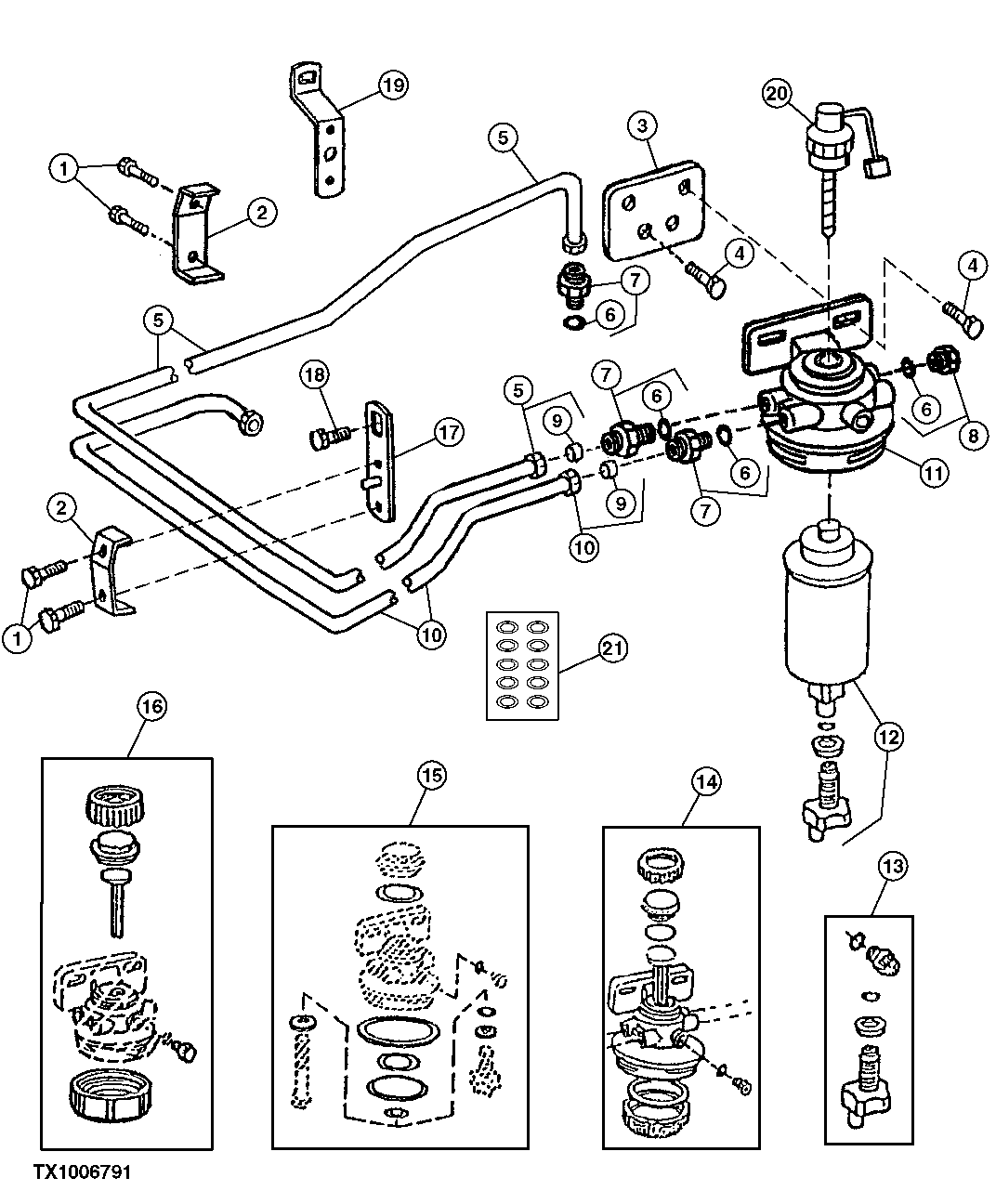

FINAL FUEL FILTER FUEL LINES,ELEMENT AND SERVICE KITS (895936 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7752	4	Cap Screw	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL)) M4 X 20
2	R136082	2	Clamp	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL))
3	R123566	1	Bracket	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL))
4	19M7784	4	Screw	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL)) M10 X 20
5	RE507774	1	Fuel Line	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL))
6	51M7040	4	O-Ring	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL)) 9.300 X 2.200 mm
6	R26286	1	O-Ring	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL)) (SAE)
7	RE60030	2	Fitting	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL))
8	RE46686	2	Fitting Plug	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL))
8	RE56323	1	Fitting Plug	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL)) (SAE)
9	R67092	4	Sealing Washer	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL))
10	RE507775	1	Fuel Line	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL))
11	-	1	Part 13	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL)) (ORDER RE70358)
12	RE62419	1	Filter Element	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL))
13	RE60854	1	Valve Kit	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL))
14	RE70358	1	Filter Head	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL))
15	RE516553	1	Seal Kit	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL)) (SUB FOR RE50752)
16	RE51649	1	Seal Kit	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL))
17	R503574	1	Bracket	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL))
18	19M7783	1	Screw	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL)) M10 X 16
19	R136079	1	Bracket	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL))
20	RE504134	1	Heater	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL)) (24V)
21	RE516513	1	Pump Repair Kit	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL)) (CONTAINS 10 ORINGS)
21	RE516512	1	O-Ring Kit	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL)) (CONTAINS 10 ORINGS)

FINAL FUEL FILTER FUEL LINES,ELEMENT AND SERVICE KITS (895936 - )
