Открытый узел

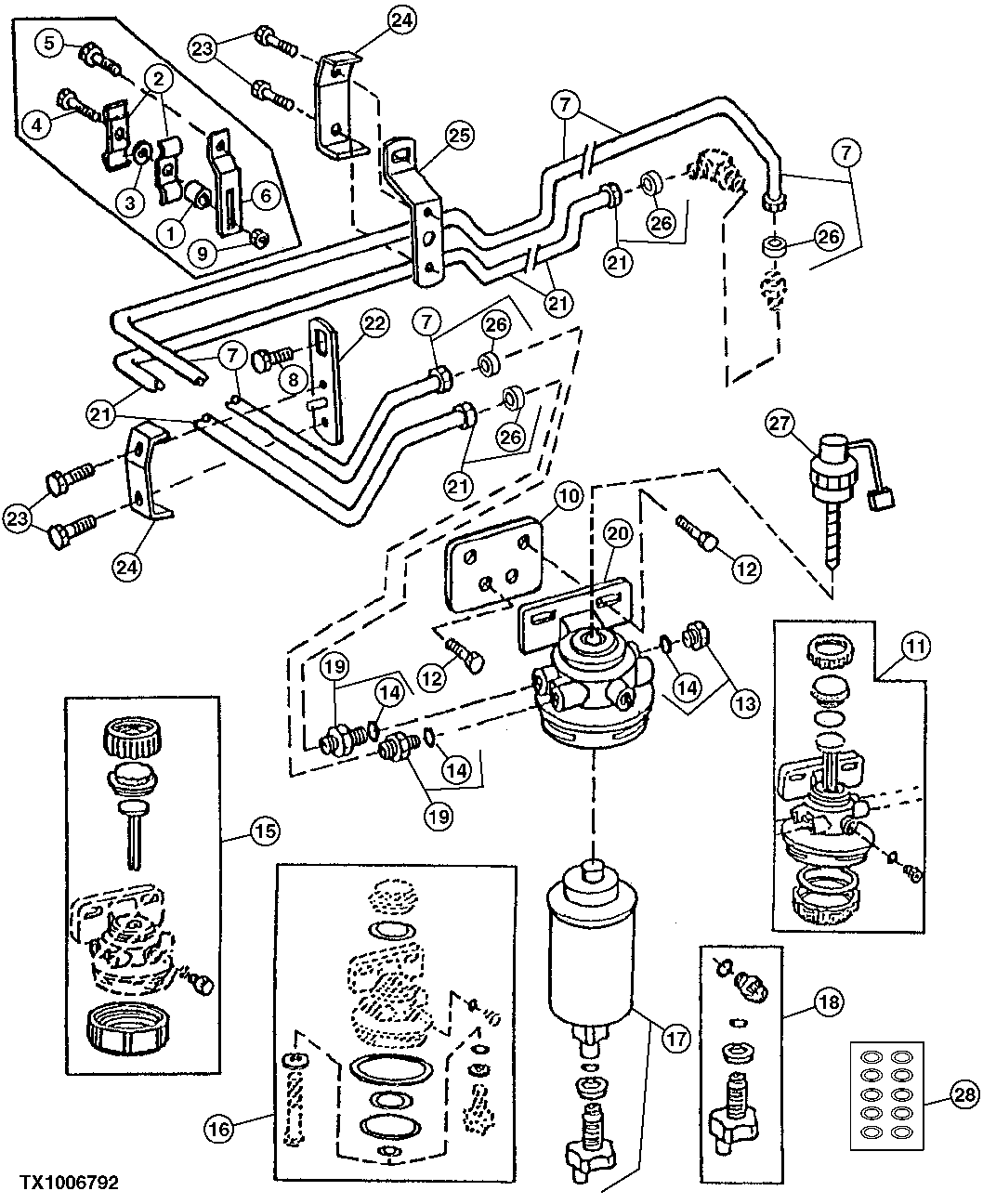

FINAL FUEL FILTER / FUEL LINE ( - 895935)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	28H1517	1	Washer	(DUBUQUE T0 ESN -895935) 0.493" X 0.675" X 1/4"
2	R81004	2	Clamp	(DUBUQUE T0 ESN -895935)
3	24M7096	1	Washer	(DUBUQUE T0 ESN -895935) 10.500 X 18 X 1.600 mm
4	19M7868	1	Screw	(DUBUQUE T0 ESN -895935) M8 X 30
5	19M7867	1	Screw	(DUBUQUE T0 ESN -895935) M8 X 25
6	R131881	1	Bracket	(DUBUQUE T0 ESN -895935)
7	RE60192	1	Fuel Line	(DUBUQUE T0 ESN -895935)
7	RE501182	1	Fuel Line	(DUBUQUE T0 ESN -895935)
8	19M7783	1	Screw	(DUBUQUE T0 ESN -895935) M10 X 16
9	14M7298	1	Flange Nut	(DUBUQUE T0 ESN -895935) M8
10	R123566	1	Bracket	(DUBUQUE T0 ESN -895935)
11	RE70358	1	Filter Head	(DUBUQUE T0 ESN -895935) FINAL
12	19M7784	4	Screw	(DUBUQUE T0 ESN -895935) M10 X 20
13	RE46686	2	Fitting Plug	(DUBUQUE T0 ESN -895935)
13	RE56323	1	Fitting Plug	(DUBUQUE T0 ESN -895935) (SAE)
14	R26286	1	O-Ring	(DUBUQUE T0 ESN -895935) (SAE)
14	51M7040	4	O-Ring	(DUBUQUE T0 ESN -895935) 9.300 X 2.200 mm
15	RE51649	1	Seal Kit	(DUBUQUE T0 ESN -895935)
16	RE516553	1	Seal Kit	(DUBUQUE T0 ESN -895935) (SUB FOR RE50752)
17	RE62419	1	Filter Element	(DUBUQUE T0 ESN -895935)
18	RE60854	1	Valve Kit	(DUBUQUE T0 ESN -895935)
19	RE60030	2	Fitting	(DUBUQUE T0 ESN -895935)
20	-	1	Part 23	(SUB RE500160 ) (ORDER RE70358)
21	RE501183	1	Fuel Line	(DUBUQUE T0 ESN -895935)
21	RE60193	1	Fuel Line	(DUBUQUE T0 ESN -895935)
22	R504730	1	Bracket	(DUBUQUE T0 ESN -895935) (SUB FOR R136081)
23	19M7752	4	Cap Screw	(DUBUQUE T0 ESN -895935) M4 X 20
24	R136082	2	Clamp	(DUBUQUE T0 ESN -895935)
25	R136079	1	Bracket	(DUBUQUE T0 ESN -895935)
26	R74012	4	Sealing Washer	(DUBUQUE T0 ESN -895935)
27	RE504134	1	Heater	(DUBUQUE T0 ESN -895935)
28	RE516513	1	Pump Repair Kit	(DUBUQUE T0 ESN -895935) (CONTAINS 10 ORINGS)
28	RE516512	1	O-Ring Kit	(DUBUQUE T0 ESN -895935) (CONTAINS 10 ORINGS)

FINAL FUEL FILTER / FUEL LINE ( - 895935)

Нет текстового описания
