Открытый узел

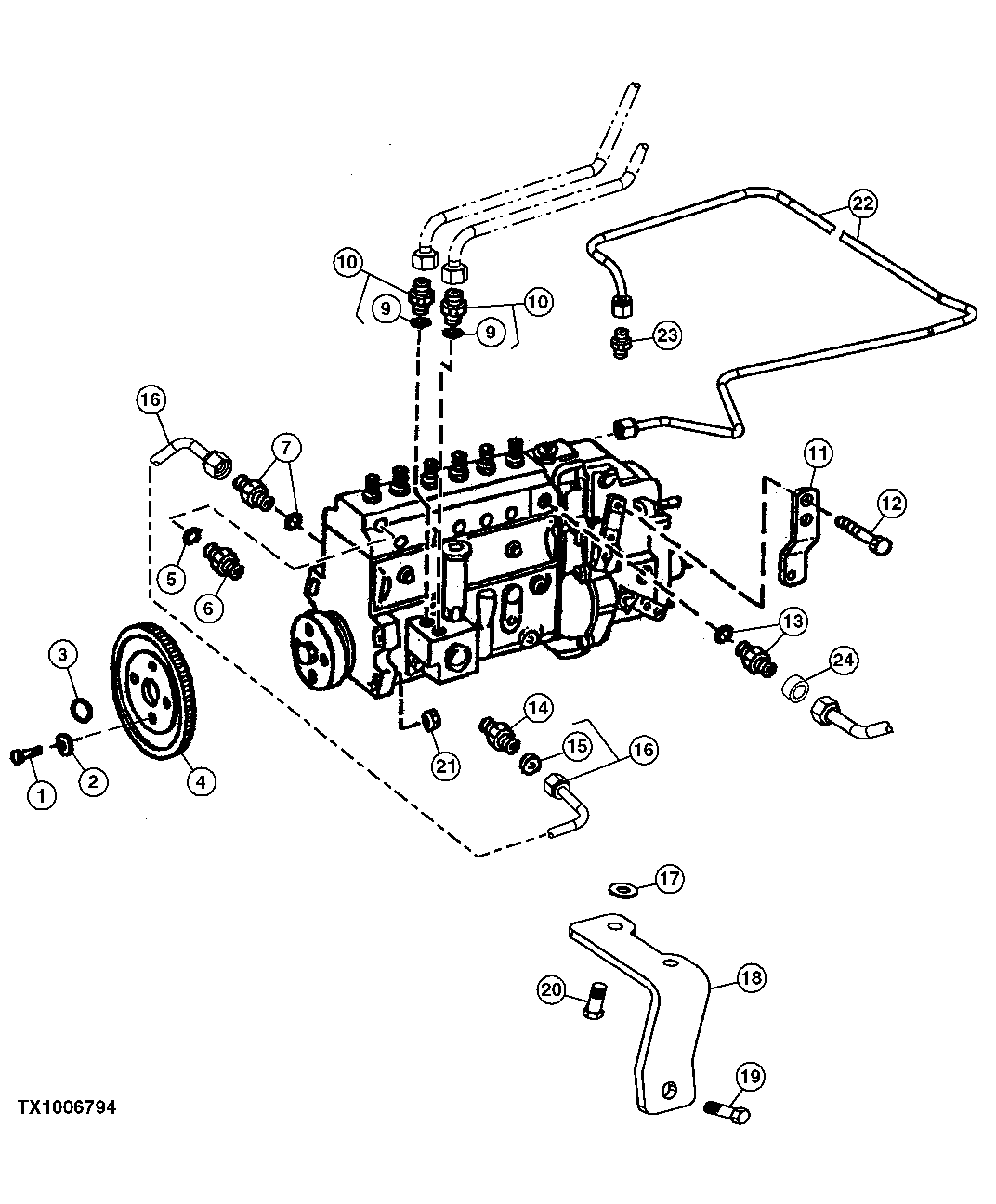

ANAEROID AND FUEL RETURN LINES - FUEL INJECTION PUMP (895936 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3336	4	Screw	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL)) 3/8" X 7/8"
2	R63845	4	Washer	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL))
3	R502143	1	O-Ring	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL))
4	R500084	1	Gear	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL)) (Z=60)
5	-	1	Part 5	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL))
6	RE506275	1	Bleed Valve	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL))
7	RE503797	1	Fitting	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL))
8	RE506150	1	Fuel Injection Pump	-
8	SE500471	1	Fuel Injection Pump	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL)) (REMAN FOR RE506150)
9	51M7041	2	O-Ring	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL)) 11.300 X 2.200 mm
10	RE60031	2	Fitting	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL))
11	R503716	1	Lever	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL))
12	19M8826	1	Screw	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL)) M6 X 16
13	RE506276	1	Fitting	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL))
14	R63604	1	Fitting	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL))
15	R51936	2	Sealing Washer	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL))
16	RE506198	1	Oil Line	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL))
17	R115823	1	Washer	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL))
18	R503575	1	Rail	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL))
19	19M8672	1	Screw	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL)) M14 X 25
20	RE71204	2	Cap Screw	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL))
21	14M7296	4	Flange Nut	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL)) M10
22	RE501558	1	Aneroid Line	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL))
23	R63604	1	Fitting	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL))
24	R67092	1	Sealing Washer	(DUBUQUE T0 ESN 895936-) (TORREON PE ESN (ALL))

ANAEROID AND FUEL RETURN LINES - FUEL INJECTION PUMP (895936 - )

Нет текстового описания
