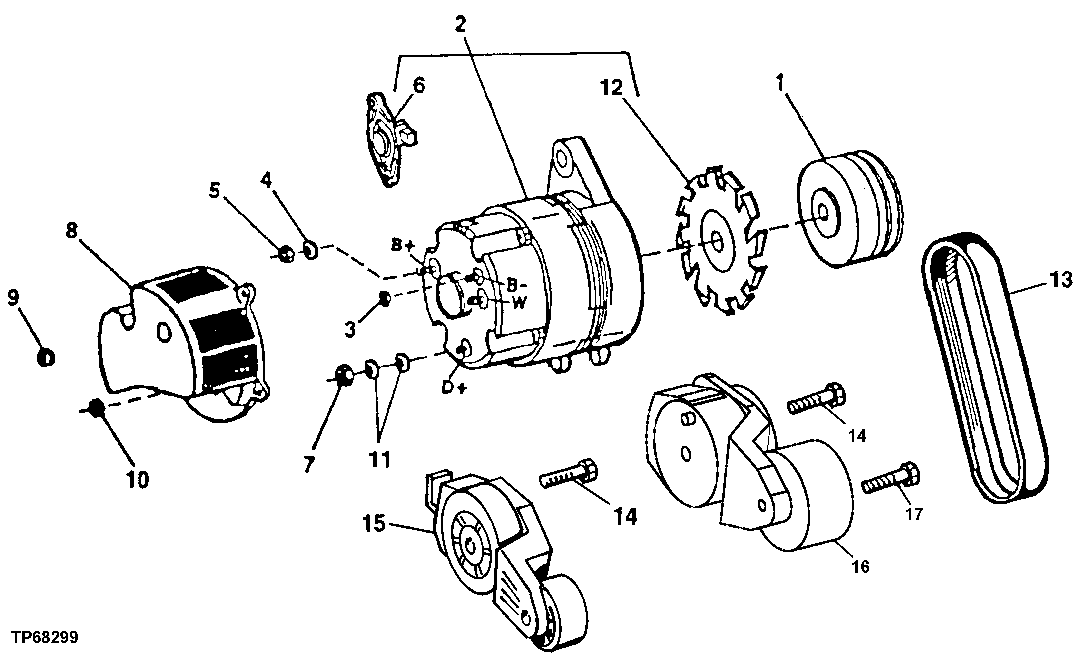

ALTERNATOR, PULLEY AND SCREEN (80 AMP)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T181325	1	Pulley	-
1	R128859	1	Pulley	(USE IF AVAILABLE), (SUB T181325)
2	TY25955	1	Alternator	(80 AMP) (24 VOLT) (W/ZENER DIODE) (CONVENIENCE ASSY) (REMAN), (SUB FOR TY6794)
2	K40015	1	Lock Nut	(FOR PULLEY) (NOT ILLUSTRATED)
2	24M7041	1	Washer	16 X 28 X 3 mm, (FOR PULLEY) (NOT ILLUSTRATED)
2	SE501348	1	Alternator Reman	(REMANUFACTURED FOR <service-part>TY25955</service-part>)
3	14M7303	1	Flange Nut	M6
4	12H325	1	Lock Washer	7/16"
5	14H849	1	Nut	7/16"
6	AT209198	1	Regulator	-
7	14M7100	1	Nut	M4
8	AT160704	1	Screen	-
9	R27180	1	Grommet	-
10	14M7375	4	Flange Nut	M5
11	24M7146	2	Washer	4.300 X 12 X 1 mm
12	T104212	1	Fan	-
13	R500240	1	Flat Belt	(USE IF AVAILABLE), (SUB <service-part qty="1">T178416</service-part> (WITH AIR CONDITIONING))
13	T178416	1	V-Belt	(2555MM) (WITH AIR CONDITIONING)
13	R500241	1	Seat Belt	(USE IF AVAILABLE), (WITHOUT AIR CONDITIONING)
13	T428725	1	V-Belt	(1640MM) (WITHOUT AIR CONDITIONING), SUB FOR T178417
14	19M8340	1	Screw	M10 X 65
14	19M8131	1	Screw	M10 X 70, (USE WITH RE70536)
15	RE69930	1	Idler	(WITH AIR CONDITIONING)
16	RE70536	1	Belt Tensioner	(WITHOUT AIR CONDITIONING)
17	R503813	1	Bolt	Left Hand Thread
18	AT209983	1	Kit	(WITHOUT AIR CONDITIONING) INCLUDES: ALTERNATOR, PULLEY, IDLER, BRACKET, STRAP, SPACER, BELT AND HARDWARE.

ALTERNATOR, PULLEY AND SCREEN (80 AMP)
