ALTERNATOR, PULLEY AND SCREEN (55 AMP)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H144095	1	Capacitor	-
2	14M7158	1	Nut	M16
3	T10745	1	Washer	-
5	T158584	1	Fan	-
6	TY26045	1	Alternator	(SUB FOR <service-part qty="1">AT207608</service-part>, <service-part qty="1">AT221116</service-part>, <service-part qty="1">AT228217</service-part > AND <service-part qty="1">TY6798</service-part>)(REMAN) (55 AMP)
6	SE501362	1	Alternator Reman	(REMAN FOR <service-part>TY26045</service-part>)
7	AT163156	1	Regulator	-
8	14M7375	1	Flange Nut	M5
9	12M7032	1	Lock Washer	8.400 mm, (SUB FOR 12H291)
10	14M7298	1	Flange Nut	M8
11	AH138291	1	Screen	(SUB FOR AT207952)
12	R27180	1	Grommet	-
13	14M7375	1	Flange Nut	M5
14	T428731	1	V-Belt	(USE IF AVAILABLE), (SUB <service-part qty="1">T178416</service-part> (WITH AIR CONDITIONING))
14	T178416	1	V-Belt	(2555MM) (WITH AIR CONDITIONING)
14	R500242	1	V-Belt	(USE IF AVAILABLE), (SUB <service-part qty="1">T178415</service-part> (WITHOUT AIR CONDITIONING))
14	T178415	1	V-Belt	(1590MM) (WITH OUT AIR CONDITIONING)
15	R94351	1	Bushing	-
16	19M8340	1	Screw	M10 X 65
16	19M8131	1	Screw	M10 X 70, (USE WITH RE70536)
17	RE69930	1	Idler	(WITH AIR CONDITIONING)
17	RE70536	1	Belt Tensioner	(SUB FOR <service-part qty="1">RE59702</service-part>)(WITHOUT AIR CONDITIONING)
4A	R94350	1	Pulley	-
4B	R501486	1	Pulley	-

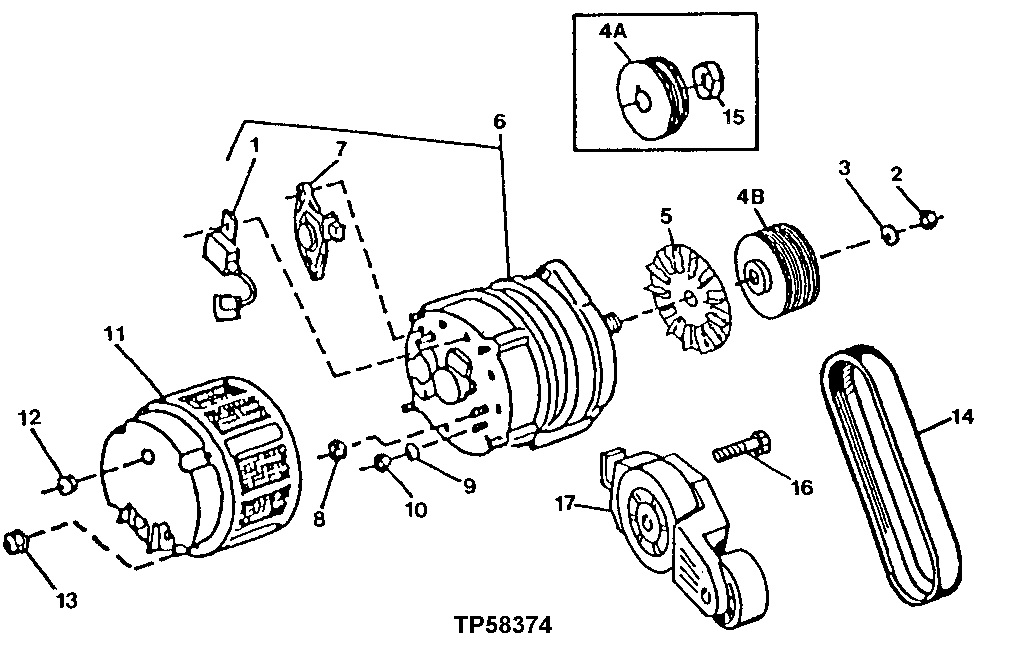

ALTERNATOR, PULLEY AND SCREEN (55 AMP)
