Открытый узел

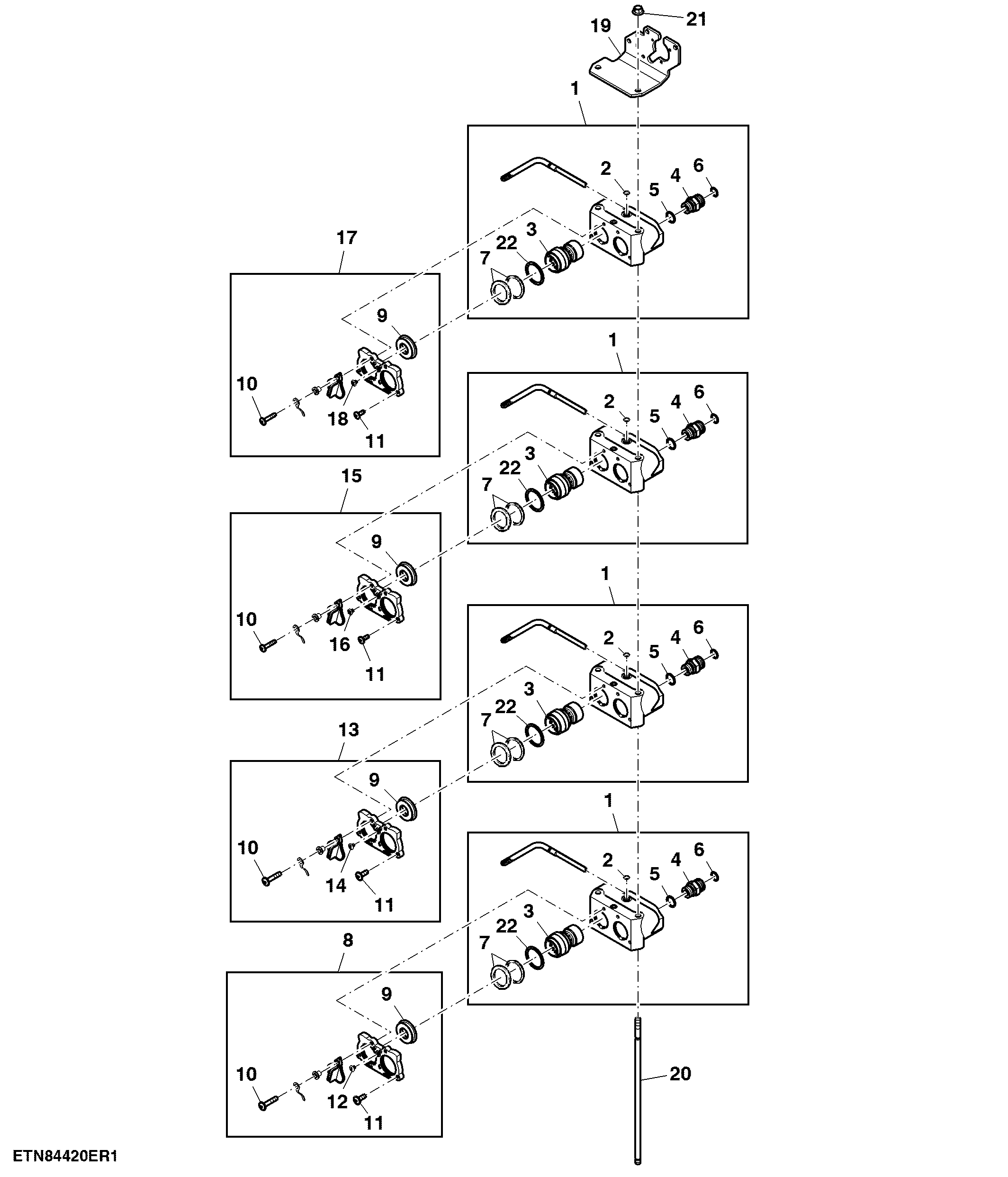

Hydraulic Quick Coupler Socket, Position I - IV

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL215772	4	Hydr. Quick Coupler Socket	-
2	A3917R	8	O-Ring	-
3	AL213391	8	Hydr. Quick Coupler Socket	INCLUDES L212120
4	38H5004	8	Adapter Fitting	-
5	51M7045	8	O-Ring	19.300 X 2.200 mm
6	T77932	8	O-Ring	-
7	AL205022	4	Seal Kit	Includes 10 O-rings and 10 Backup rings
8	AL212018	1	Cover	(Green) ORDER AL218597
8	AL217124	1	Cover	(Green) ORDER AL218597
8	AL218597	1	Cover	(Green)
9	L214847	8	Grommet	-
10	19M9178	8	Screw	M6 X 30
11	19M8648	8	Screw	M6 X 16
12	L170555	1	Plug	(Green)
13	AL217125	1	Cover	(Blue) ORDER AL218598
13	AL218598	1	Cover	(Blue)
13	AL212017	1	Cover	(Blue) ORDER AL218598
14	L170556	1	Plug	(Blue)
15	AL212016	1	Cover	(Brown) ORDER AL218599
15	AL217126	1	Cover	(Brown) ORDER AL218599
15	AL218599	1	Cover	(Brown)
16	L170557	1	Plug	(Brown)
17	AL212014	1	Cover	(Black) ORDER AL218600
17	AL217127	1	Cover	(Black) ORDER AL218600
17	AL218600	1	Cover	(Black)
18	L102157	1	Plug	(Black)
19	L212361	1	Bracket	-
20	L222810	2	Stud	SUB FOR L214521
21	14M7648	2	Flange Nut	M10
22	L212120	8	Snap Ring	-

Hydraulic Quick Coupler Socket, Position I - IV
