Wiring Harness, Electrical Midstack SCV, W/ Premium Front Hitch, W/O 3-Pin Socket (977139 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L171496	1	Clamp	-
2	57M12234	6	Elec. Connector Accessory	-
3	14M7298	2	Flange Nut	M8
4	L207210	3	Block Clamp	-
5	R213663	2	Clamp	-
6	AL230246	1	Wiring Harness	-
7	19M9006	1	Screw	M8 X 35
8	L210257	1	Tie Band	-
9	R215302	3	Clip	-
10	L214273	1	Retainer	-
11	AL223361	1	Wiring Harness	-
12	AH89557	3	Clip	-
13	L172406	1	Clip	-
14	AH89486	1	Clip	-
15	AL232271	1	Wiring Harness	-
16	57M7260	1	Elec. Connector Housing	Remote Control Switch of Front Hitch, X981F
16	57M7291	1	Electrical Connector Assy	-
16	57M9215	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
16	57M10770	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
17	57M7255	1	Elec. Connector Housing	Sensor for Front Hitch Position, X980F
17	57M10770	3	Elec. Connector Terminal	Cavity A, B, C
17	57M9215	3	Elec. Connector Seal	Cavity A, B, C
17	57M7290	1	Elec. Connector Accessory	-
18	57M7281	1	Elec.Connect Locking Device	-
18	57M7259	1	Elec. Connector Seal	Cavity C
18	57M9215	5	Elec. Connector Seal	Cavity E, F, G, H, K
18	57M7252	5	Elec. Connector Terminal	Cavity E, F, G, H, K
18	57M7258	2	Elec. Connector Seal	Cavity D, J
18	57M11342	2	Elec. Connector Terminal	Cavity D, J
18	57M9546	2	Elec. Connector Terminal	Cavity A, B
18	57M7265	1	Elec. Connector Housing	Connection Point between Harnesses W752 and W731, X1134M
18	57M9214	2	Elec. Connector Seal	Cavity A, B
19	57M10297	1	Elec. Connector Housing	Connection Point between Harnesses W752 and W753, X923F
19	57M8565	2	Elec. Connector Terminal	Cavity 1, 8
19	57M8545	9	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 7, 9, 10, 13
19	57M8543	1	Elec. Connector Terminal	Cavity 14
19	57M8572	2	Elec. Connector Cavity Plug	Cavity 11, 12
19	57M12118	1	Elec. Connector Accessory	-
20	57M9813	9	Elec. Connector Terminal	Cavity 1, 2, 3, 5, 6, 8, 9, 10, 11
20	57M10336	2	Elec. Connector Cavity Plug	Cavity 4, 7
20	57M10603	1	Elec. Connector Terminal	Cavity 12
20	57M9805	1	Elec. Connector Housing	Connection Point between Harnesses W291 and W752, X1168M
21	57M8069	1	Elec. Connector Housing	Connection Point between Harnesses W291 and W752, X921M
21	57M9042	15	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
21	57M7400	15	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
21	57M7399	1	Elec. Connector Seal	Cavity 16
21	57M8075	1	Elec. Connector Seal	-
21	57M8082	1	Elec. Connector Accessory	-
22	L116273	1	Elec. Connector Accessory	-
22	57M7296	1	Elec. Connector Accessory	-
22	57M9214	5	Elec. Connector Seal	Cavity A, B, C, E, G
22	57M7494	5	Elec. Connector Terminal	Cavity A, B, C, E, G
22	57M7261	1	Elec. Connector Housing	Connection Point between Harnesses W752 and W791, X1169F
22	57M7259	3	Elec. Connector Seal	Cavity D, F, H
23	57M7328	1	Elec. Connector Housing	Connector for Front Loader Dampening, X1278F
23	57M10770	2	Elec. Connector Terminal	Cavity A, B
23	57M9215	2	Elec. Connector Seal	Cavity A, B
23	57M7289	1	Elec.Connect Locking Device	-
24	57M9215	5	Elec. Connector Seal	Cavity E, F, G, H, K
24	57M7281	1	Elec.Connect Locking Device	-
24	57M7259	1	Elec. Connector Seal	Cavity C
24	57M7258	2	Elec. Connector Seal	Cavity D, J
24	57M9214	2	Elec. Connector Seal	Cavity A, B
24	57M10770	5	Elec. Connector Terminal	Cavity E, F, G, H, K
24	57M9541	2	Elec. Connector Terminal	Cavity D, J
24	57M7494	2	Elec. Connector Terminal	Cavity A, B
24	57M7262	1	Elec. Connector Housing	Connection Point between Harnesses W752 and W731, X1134F
25	57M7260	1	Elec. Connector Housing	Connector for Diverter Valve / Memo Function, X1268F
25	57M10770	5	Elec. Connector Terminal	Cavity A, B, D, E, F
25	57M9215	5	Elec. Connector Seal	Cavity A, B, D, E, F
25	57M7259	1	Elec. Connector Seal	Cavity C
25	57M7291	1	Electrical Connector Assy	-
26	57M10298	1	Elec. Connector Housing	Connection Point between Harnesses W752 and W753, X923M
26	57M10524	9	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 7, 9, 10, 13
26	57M8572	5	Elec. Connector Cavity Plug	Cavity 1, 8, 11, 12, 14
27	57M10466	1	Elec. Connector Housing	Stepper Motor for E-SCV XII, X251F
27	L219630	1	Elec. Connector Accessory	-
27	57M7830	2	Elec. Connector Terminal	Cavity A, B
27	57M7829	2	Elec. Connector Terminal	Cavity C, D
28	57M7534	1	Elec. Connector Housing	Commutation Valve of Front Hitch, X1007F
28	57M7546	2	Elec. Connector Terminal	Cavity 1, 2
28	57M8022	1	Elec.Connect Locking Device	-
29	57M10466	1	Elec. Connector Housing	Stepper Motor for E-SCV XI, X318F
29	57M7830	2	Elec. Connector Terminal	Cavity A, B
29	57M7829	2	Elec. Connector Terminal	Cavity C, D
29	L219630	1	Elec. Connector Accessory	-
30	57M7829	2	Elec. Connector Terminal	Cavity C, D
30	L219630	1	Elec. Connector Accessory	-
30	57M7830	2	Elec. Connector Terminal	Cavity A, B
30	57M10466	1	Elec. Connector Housing	Stepper Motor for E-SCV XIII, X252F
31	57M10466	1	Elec. Connector Housing	Stepper Motor for E-SCV X, X253F
31	57M7830	2	Elec. Connector Terminal	Cavity A, B
31	57M7829	2	Elec. Connector Terminal	Cavity C, D
32	57M10466	1	Elec. Connector Housing	Stepper Motor for E-SCV XIV, X254F
32	57M7830	2	Elec. Connector Terminal	Cavity A, B
32	57M7829	2	Elec. Connector Terminal	Cavity C, D
33	57M7534	1	Elec. Connector Housing	Commutation Valve for Front Hitch, Rerouting the Oil from Coupler XIV to Coupler XV, X982F-1
33	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
33	57M7620	1	Electrical Connector Assy	-
33	57M11230	1	Elec. Connector Accessory	-

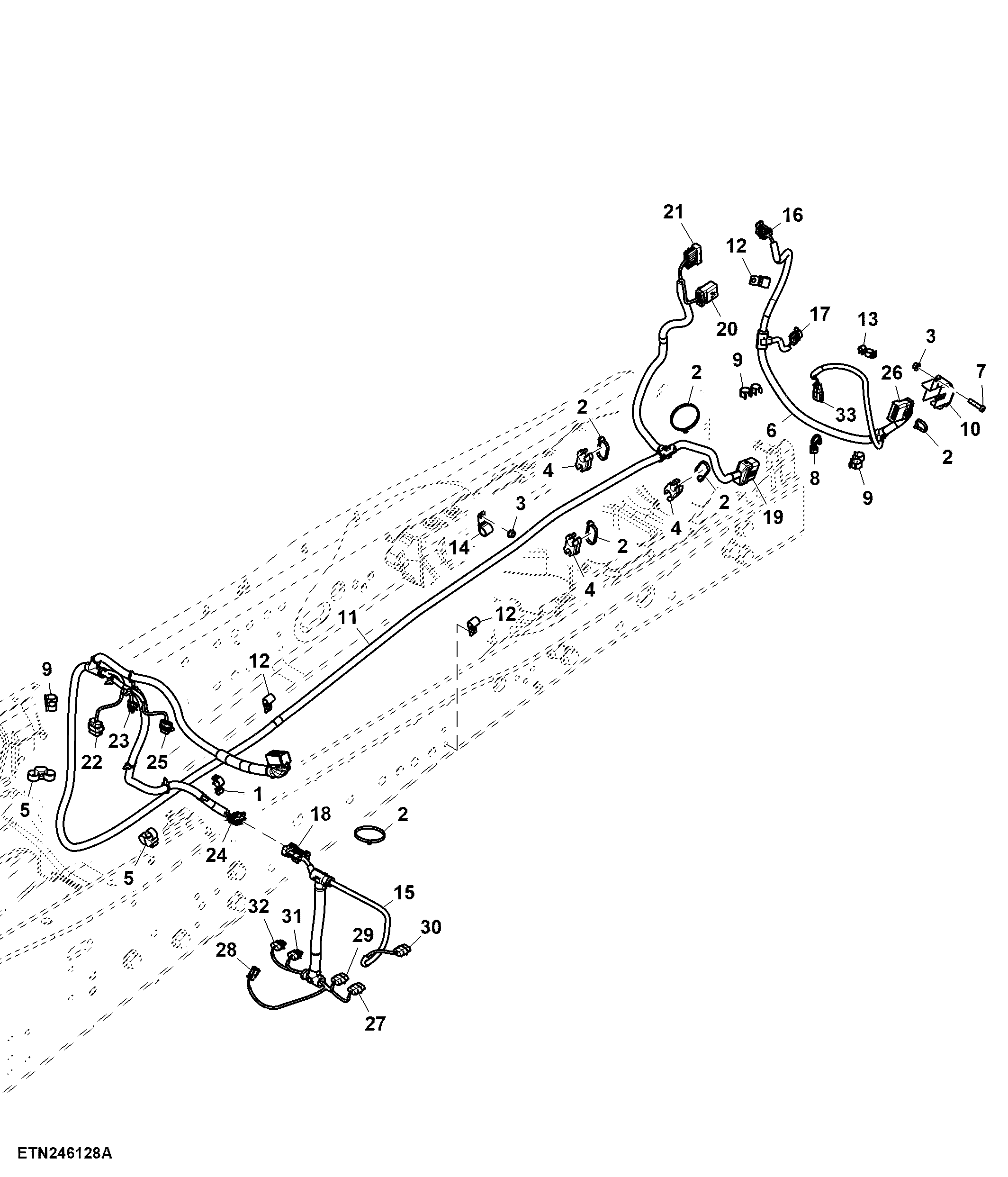

Wiring Harness, Electrical Midstack SCV, W/ Premium Front Hitch, W/O 3-Pin Socket (977139 - )
