№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R537805	1	Bezel	-
2	AL221901	1	Wiring Harness	-
3	RE566688	1	Wiring Harness	-
4	57M7789	1	Elec. Connector Housing	Connection Point between Harnesses W251 and W253, X240F
4	57M7501	3	Elec. Connector Terminal	Cavity A, B, D
4	57M7724	2	Electrical Connector Assy	-
5	57M7470	1	Elec. Connector Housing	Control Unit, CommandARM™, X143F-5
5	57M11967	4	Elec. Connector Terminal	Cavity 1, 6, 9, 10
5	57M7437	2	Elec. Connector Terminal	Cavity 2, 4
5	57M7474	1	Elec. Connector Terminal	-
6	57M7716	1	Electrical Connector Assy	Control Unit, CommandARM™, X143F-1
6	57M11967	7	Elec. Connector Terminal	Cavity 1, 3, 6, 7, 10, 11, 12
6	57M7437	2	Elec. Connector Terminal	Cavity 4, 5
6	57M7721	1	Electrical Connector Assy	-
7	57M11471	1	Elec. Connector Housing	Paddle Pot, SCV 5 and SCV 6, X151F
8	57M11967	3	Elec. Connector Terminal	Cavity 1, 2, 4
8	57M7718	1	Electrical Connector Assy	-
8	57M7712	1	Electrical Connector Assy	Hitch Control Switch Module, X156F
9	57M7716	1	Electrical Connector Assy	House Controls, X188F
9	57M11967	9	Elec. Connector Terminal	Cavity 1, 2, 4, 6, 7, 9, 10, 11, 12
9	57M7721	1	Electrical Connector Assy	-
10	57M11471	1	Elec. Connector Housing	Paddle Pot, SCV 9 and SCV 10, X153F
11	57M11471	1	Elec. Connector Housing	Paddle Pot, SCV 7 and SCV 8, X152F
12	57M11471	1	Elec. Connector Housing	Paddle Pot, SCV 3 and SCV 4, X150F
13	57M8802	1	Elec. Connector Housing	Module with Button for Transport Lock of the E-SCVs and Button for ISOBUS, X145F
13	57M11967	7	Elec. Connector Terminal	Cavity 1, 2, 3, 5, 6, 7, 8
13	57M8783	1	Elec. Connector Housing	-
14	57M11471	1	Elec. Connector Housing	Paddle Pot, SCV 1 and SCV 2, X149F
15	57M7718	1	Electrical Connector Assy	-
15	57M11967	3	Elec. Connector Terminal	Cavity 1, 2, 4
15	57M7712	1	Electrical Connector Assy	Engine Speed Control Module, X146F
16	57M7788	1	Electrical Connector Assy	Front PTO Switch W/ CommandARM™, X172M
16	57M7500	3	Elec. Connector Terminal	Cavity A, B, C
16	57M7727	1	Electrical Connector Assy	-
16	M76268	1	Clip	-
17	57M7789	1	Elec. Connector Housing	Rear PTO Switch W/ CommandARM™, X173F
17	57M8293	3	Elec. Connector Terminal	Cavity A, B, C
17	57M7724	2	Electrical Connector Assy	-
18	57M7712	1	Electrical Connector Assy	Hitch Control Switch Module, X187F
18	57M11967	3	Elec. Connector Terminal	Cavity 1, 2, 4
18	57M7718	1	Electrical Connector Assy	-
19	57M7065	1	Elec. Connector Housing	2-Terminal Power Outlet Socket, X843F
19	57M7431	2	Elec. Connector Terminal	Cavity 1, 2
20	57M7550	3	Elec. Connector Terminal	Cavity 1, 13, 16
20	57M7722	1	Electrical Connector Assy	-
20	57M7437	5	Elec. Connector Terminal	Cavity 2, 3, 4, 7, 8
20	57M7717	1	Electrical Connector Assy	Control Unit, CommandARM™, X143F-2A
21	57M8857	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W201 and W251, X193M
21	57M8862	5	Elec. Connector Terminal	Cavity A, H, J, M, S
21	57M8861	2	Elec. Connector Terminal	Cavity C, P
21	57M8863	3	Elec. Connector Terminal	Cavity D, E, R
21	57M8859	2	Elec.Connect Locking Device	-
21	57M8860	1	Elec.Connect Locking Device	-
21	57M9555	1	Clip	-
22	57M7788	1	Electrical Connector Assy	Connection Point between Harnesses W251 and W253, X240M
22	57M7500	3	Elec. Connector Terminal	Cavity A, B, D
22	57M7727	1	Electrical Connector Assy	-
23	57M7712	1	Electrical Connector Assy	Navigation Bar, X147F
23	57M7437	3	Elec. Connector Terminal	Cavity 1, 2, 4

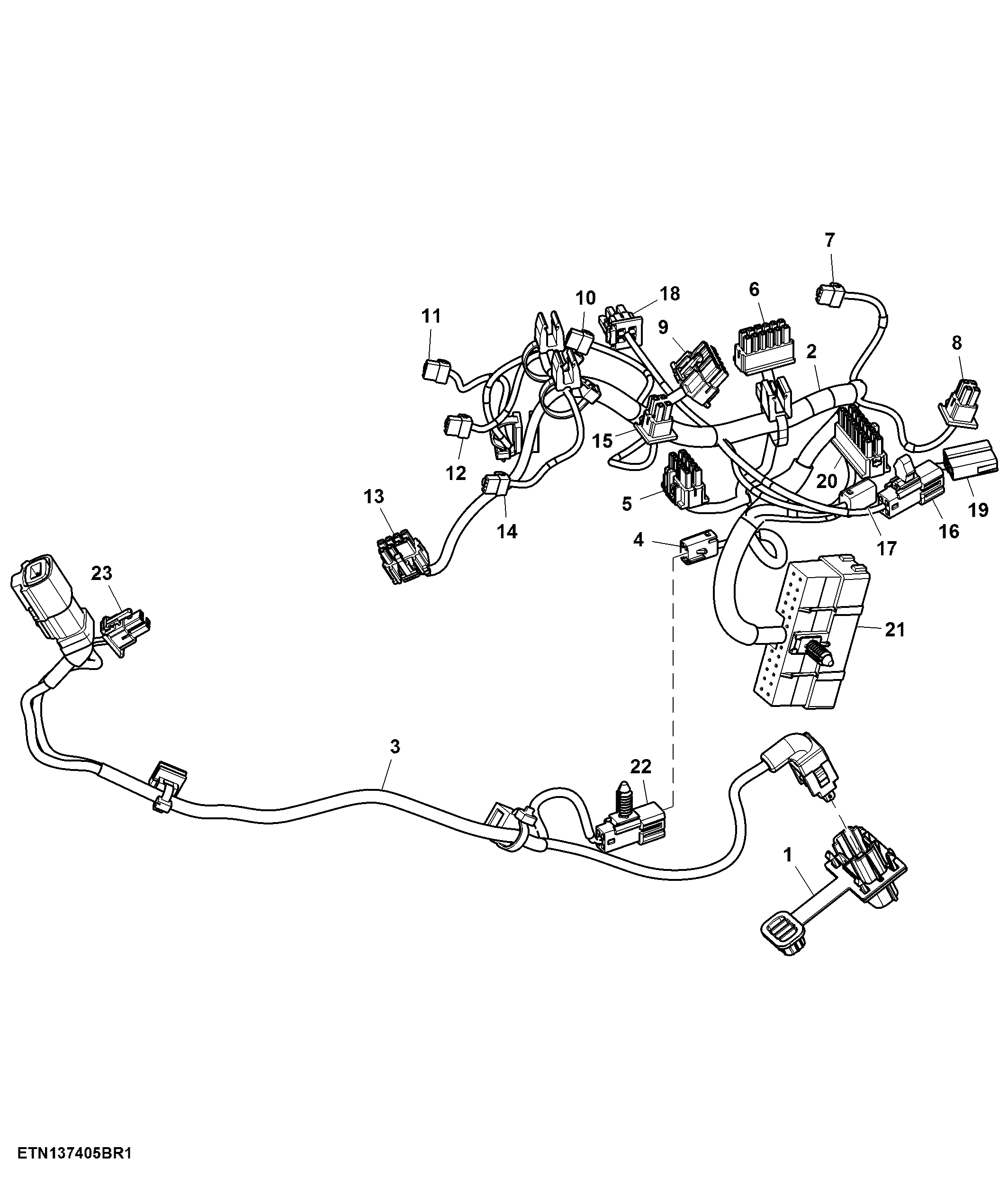

Wiring Harness, Armrest, CommandARM™, W/O CommandPRO™
