Wiring Harness, Armrest, CommandARM™, W/ CommandPRO™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R537805	1	Bezel	-
2	AL222738	1	Wiring Harness	-
3	RE566688	1	Wiring Harness	-
4	57M9555	1	Clip	-
4	57M8860	1	Elec.Connect Locking Device	-
4	57M8859	2	Elec.Connect Locking Device	-
4	57M8863	6	Elec. Connector Terminal	Cavity D,E,F,G,N,R
4	57M8861	2	Elec. Connector Terminal	Cavity C,P
4	57M8862	6	Elec. Connector Terminal	Cavity A,B,H,J,M,S
4	57M8857	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W201 and W251, X193M
5	57M7789	1	Elec. Connector Housing	Connection Point between Harnesses W251 and W253, X240F
5	57M7501	3	Elec. Connector Terminal	Cavity A,B,C
5	57M7724	2	Electrical Connector Assy	-
6	57M7470	1	Elec. Connector Housing	Control Unit, CommandARM™, X143F-5
6	57M11967	4	Elec. Connector Terminal	Cavity 1,6,9,10
6	57M7437	1	Elec. Connector Terminal	Cavity 3
6	57M7474	1	Elec. Connector Terminal	-
7	57M7716	1	Electrical Connector Assy	Control Unit, CommandARM™, X143F-1
7	57M7721	1	Electrical Connector Assy	-
7	57M7437	2	Elec. Connector Terminal	Cavity 4, 5
7	57M11967	7	Elec. Connector Terminal	Cavity 1,3,6,7,10,11,12
8	57M11471	1	Elec. Connector Housing	Paddle Pot, SCV 5 and SCV 6, X151F
9	57M9524	1	Elec. Connector Housing	Rear PTO Switch W/ CommandARM™, X173F-1
9	57M8609	5	Elec. Connector Terminal	Cavity 1,2,3,4,6
10	57M7712	1	Electrical Connector Assy	Hitch Control Switch Module, X187F
10	57M11967	3	Elec. Connector Terminal	Cavity 1,2,4
10	57M7718	1	Electrical Connector Assy	-
11	57M7716	1	Electrical Connector Assy	House Controls, X188F
11	57M11967	9	Elec. Connector Terminal	Cavity 1,2, 4,6,7,9,10,11,12
11	57M7721	1	Electrical Connector Assy	-
12	57M11471	1	Elec. Connector Housing	Paddle Pot, SCV 9 and SCV 10, X153F
13	57M11471	1	Elec. Connector Housing	Paddle Pot, SCV 7 and SCV 8, X152F
14	57M11471	1	Elec. Connector Housing	Paddle Pot, SCV 3 and SCV 4, X150F
15	57M8802	1	Elec. Connector Housing	Module with Button for Transport Lock of the E-SCVs and Button for ISOBUS, X145F
15	57M8783	1	Elec. Connector Housing	-
15	57M11967	7	Elec. Connector Terminal	Cavity 1,2,3,5,6,7,8
16	57M7717	1	Electrical Connector Assy	Control Unit, CommandARM™, X143F-2A
16	57M7550	3	Elec. Connector Terminal	Cavity 1,13,16
16	57M7437	5	Elec. Connector Terminal	Cavity 2,3,4,7,8
16	57M7722	1	Electrical Connector Assy	-
17	57M7712	1	Electrical Connector Assy	Engine Speed Control Module, X146F
17	57M11967	3	Elec. Connector Terminal	Cavity 1,2, 4
17	57M7718	1	Electrical Connector Assy	-
18	57M8609	5	Elec. Connector Terminal	Cavity 1,2,3,4,6
18	57M9524	1	Elec. Connector Housing	Front PTO Switch, CommandARM™, X172F-1
19	57M7712	1	Electrical Connector Assy	Hitch Control Switch Module, X156F
19	57M11967	3	Elec. Connector Terminal	Cavity 1,2,4
19	57M7718	1	Electrical Connector Assy	-
20	57M7716	1	Electrical Connector Assy	Control Unit, CommandARM™, X143F-3A
20	57M7437	4	Elec. Connector Terminal	Cavity 2,6,11,12
20	57M7721	1	Electrical Connector Assy	-
21	57M7470	1	Elec. Connector Housing	Control Unit, CommandARM™, X143F-3B
21	57M7474	1	Elec. Connector Terminal	-
21	57M7437	3	Elec. Connector Terminal	Cavity 1,4,5
22	57M7065	1	Elec. Connector Housing	2-Terminal Power Outlet Socket, X843F
22	57M7431	2	Elec. Connector Terminal	Cavity 1,2
23	57M7717	1	Electrical Connector Assy	CommandPRO™ Joystick, X196F
23	57M7437	11	Elec. Connector Terminal	Cavity 1,2,5,6,8,9,10,11,12,13,16
23	57M7550	1	Elec. Connector Terminal	Cavity 15
23	57M7722	1	Electrical Connector Assy	-
24	57M7788	1	Electrical Connector Assy	Connection Point between Harnesses W251 and W253, X240M
24	57M7500	3	Elec. Connector Terminal	Cavity A,B,D
24	57M7727	1	Electrical Connector Assy	-
24	57M9555	1	Clip	-
25	57M7712	1	Electrical Connector Assy	Navigation Bar, X147F
25	57M7437	3	Elec. Connector Terminal	Cavity 1,2,4
25	57M7718	1	Electrical Connector Assy	-

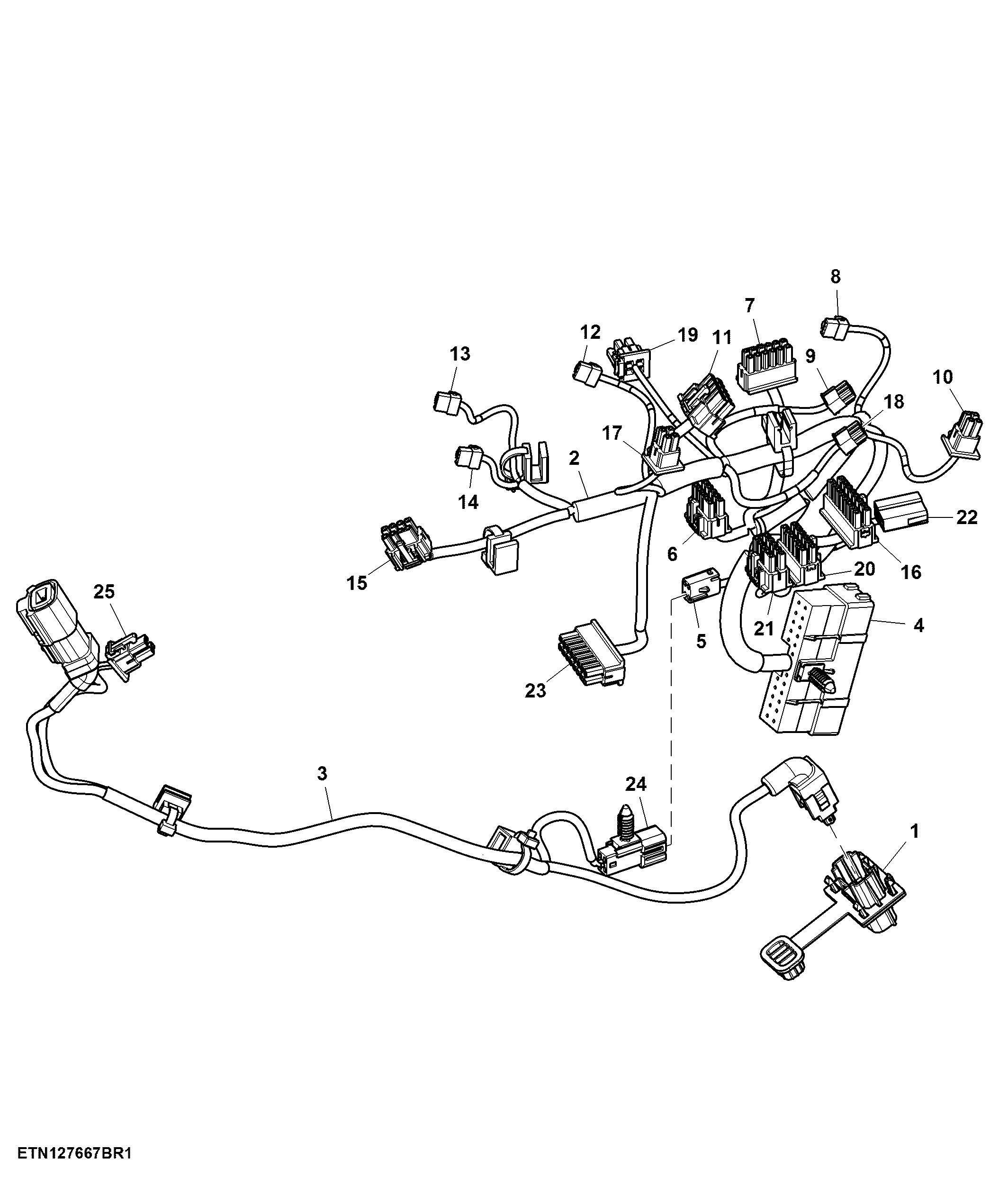

Wiring Harness, Armrest, CommandARM™, W/ CommandPRO™
