Открытый узел

Switch, Loader, W/ Quick Unlatch Function, W/O Loader Working Lights

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL226108	1	Wiring Harness	SUB FOR AL221632
2	AL219579	1	Toggle/Rocker Switch	-
3	57M12234	2	Elec. Connector Accessory	-
4	L207722	1	Plug	-
5	L40924	1	Nut	SUB FOR L205661 APPL
6	L222109	1	Tie Band	-
7	57M9817	1	Elec. Connector Housing	Connection Point on Wiring Harness W781, X445F
7	57M10631	3	Elec. Connector Terminal	Cavity 1,2,3
7	57M10336	1	Elec. Connector Cavity Plug	Cavity 4
7	57M9848	1	Elec. Connector Accessory	-
8	57M8234	2	Elec. Connector Terminal	Cavity 1,2
8	57M11297	1	Elec. Connector Accessory	40 A, Relay for Hydraulic Quick Release, Front Loader, K070
8	57M11184	2	Elec. Connector Seal	Cavity 3,5
8	57M8237	2	Elec. Connector Seal	Cavity 1,2
8	57M11856	2	Elec. Connector Terminal	Cavity 3,5
8	57M8232	1	Elec. Connector Housing	Relay for Hydraulic Quick Release, Front Loader, X441F
9	57M8542	1	Elec. Connector Housing	Switch for Hydraulic Quick Release, Front Loader, X411F
9	57M8571	2	Elec. Connector Terminal	Cavity 1,3
9	57M7938	2	Elec. Connector Terminal	Cavity 1,3
9	57M7743	1	Elec. Connector Cable Seal	Cavity 2
10	57M7256	1	Elec. Connector Housing	Switch for Front Loader Worklights, X450M
10	57M7289	1	Elec.Connect Locking Device	-
10	R104919	2	Elec. Connector Terminal	Cavity A,B
10	57M9215	2	Elec. Connector Seal	Cavity A,B
11	57M7328	1	Elec. Connector Housing	Connection Point on Wiring Harness W781, X037F-8
11	57M10770	2	Elec. Connector Terminal	Cavity A,B
11	57M9215	2	Elec. Connector Seal	Cavity A,B
11	57M7289	1	Elec.Connect Locking Device	-
12	57M7289	1	Elec.Connect Locking Device	-
12	57M9215	2	Elec. Connector Seal	Cavity A,B
12	R104919	2	Elec. Connector Terminal	Cavity A,B
12	57M7985	1	Electrical Connector Assy	Connection Point on Wiring Harness W781, X037M-8
13	57M7256	1	Elec. Connector Housing	Connection Point on Wiring Harness W781, X037M-6
13	57M11342	2	Elec. Connector Terminal	Cavity A,B
13	57M7258	2	Elec. Connector Seal	Cavity A,B
13	57M7289	1	Elec.Connect Locking Device	-
14	57M7254	1	Elec. Connector Housing	Connection Point on Wiring Harness W781, X037F-6
14	57M9541	2	Elec. Connector Terminal	Cavity A,B
14	57M7258	2	Elec. Connector Seal	Cavity A,B
14	57M7289	1	Elec.Connect Locking Device	-

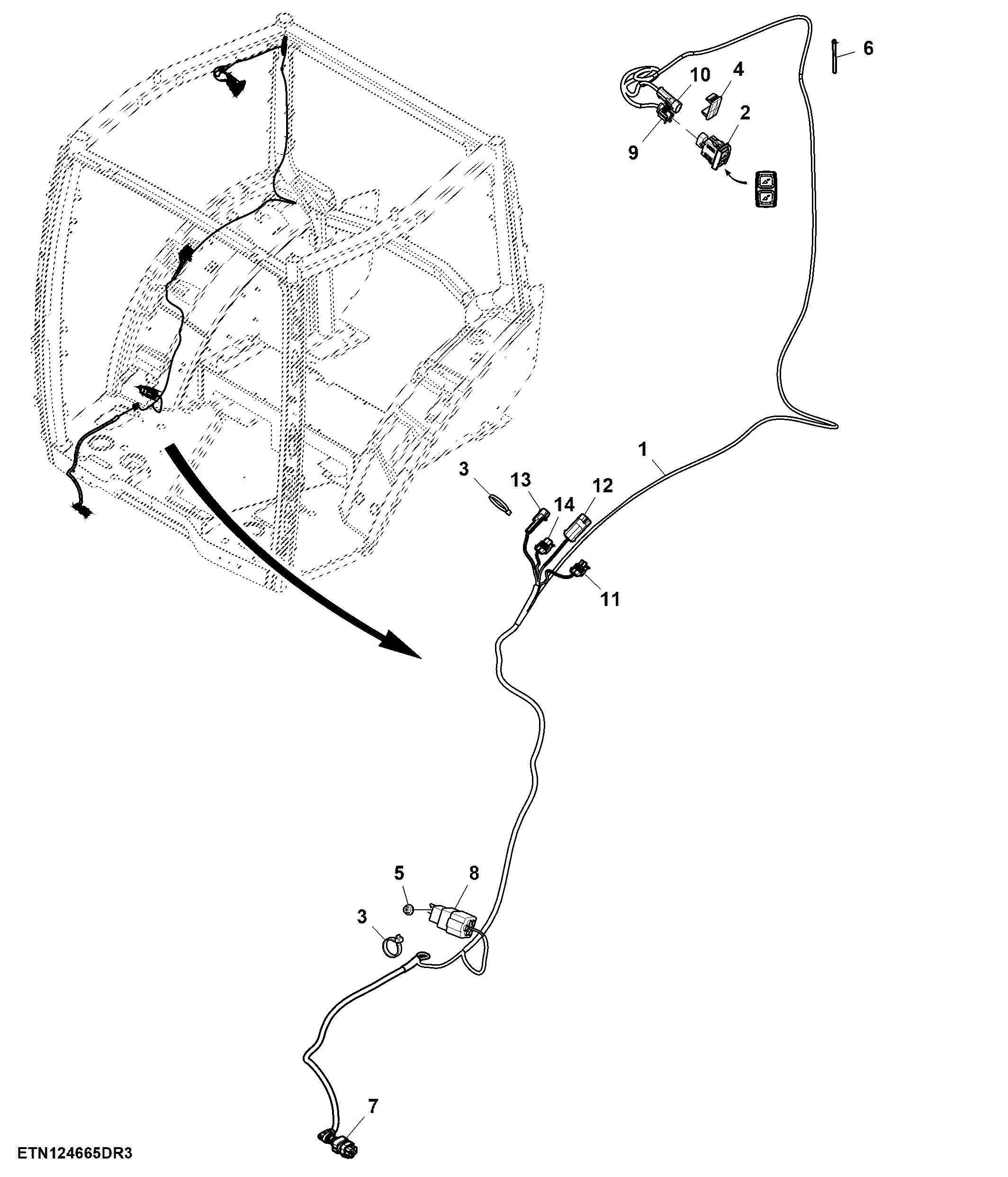

Switch, Loader, W/ Quick Unlatch Function, W/O Loader Working Lights
