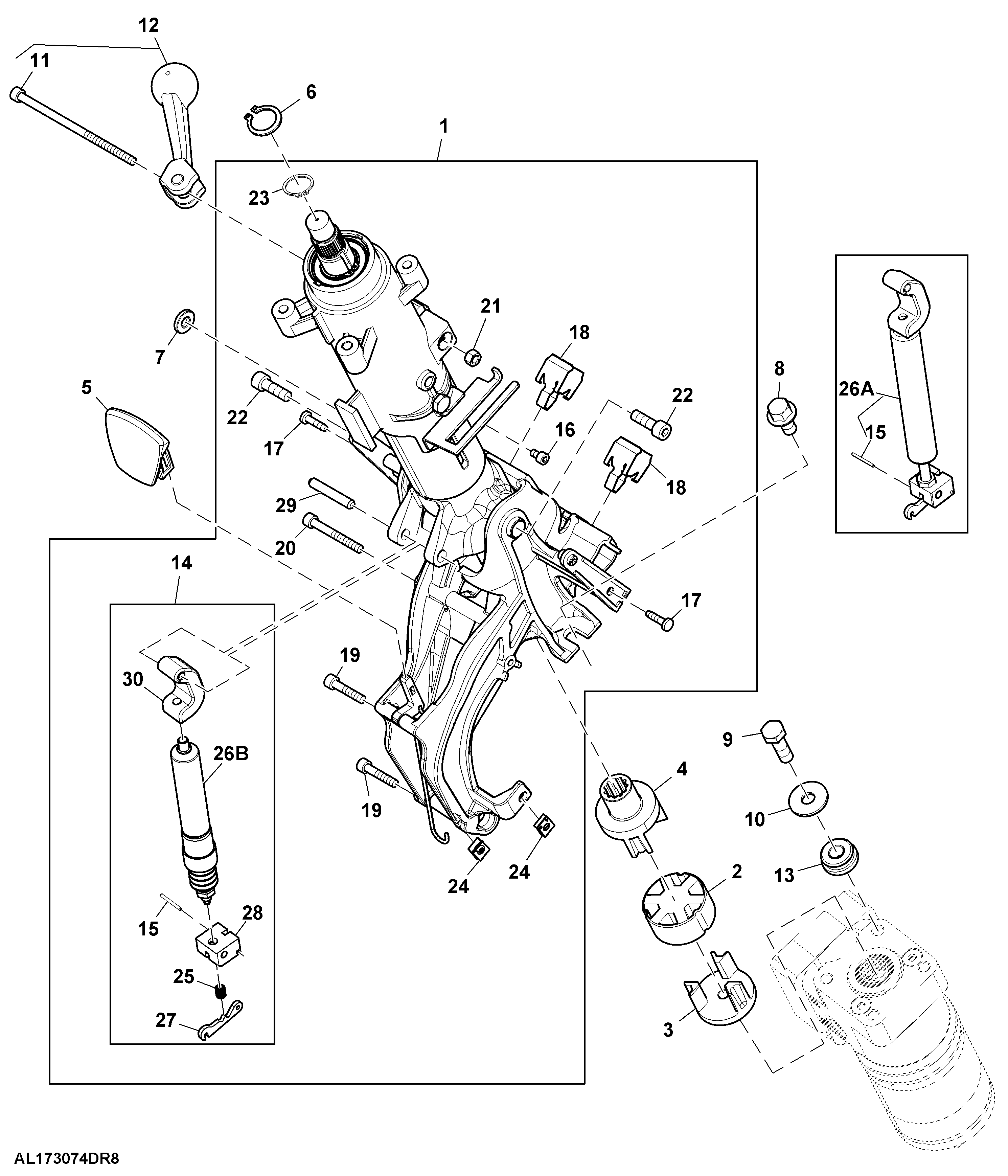

Steering Column, Tiltable ( - 947640)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL223637	1	Steering Column	ALSO ORDER AL157856, R126641 AND R126640
1	AL204322	1	Steering Column	ORDER AL223637, AL157856, R126641 AND R126640
2	AL157856	1	Isolator	-
3	R126641	1	Splined Coupling	-
4	R126640	1	Splined Coupling	-
5	L170060	1	Knob	-
6	R114841	1	Snap Ring	TK = 2.00 mm
7	L167390	2	Washer	-
8	19M7784	3	Screw	M10 X 20
9	19M7168	4	Cap Screw	M10 X 30
10	24M7178	4	Washer	10.500 X 30 X 2.500 mm
11	19M9167	1	Screw	M6 X 120
12	AL168306	1	Lever	-
13	AL154960	4	Isolator	-
14	AL172623	1	Gas Operated Cylinder	ORDER L219665, L226311, L219663, L219664, L219662 AND 34M7083
14	AL204376	1	Gas Operated Cylinder	ORDER L219665, L226311, L219663, L219664, L219662 AND 34M7083
14	AL223588	1	Gas Operated Cylinder	ORDER L219665, L226311, L219663, L219664, L219662 AND 34M7083
15	L219457	1	Screw	USE WITH L218660
15	34M7083	1	Spring Pin	3 X 30 mm, USE WITH L226311
16	19M9476	1	Screw	M5 X 8
17	37M7428	2	Screw	M5 X 20
18	L153768	2	Clip	-
19	19M8263	2	Screw	M6 X 30
20	19M8265	4	Screw	M6 X 50
21	14M7528	1	Lock Nut	M6
22	19M7657	2	Screw	M8 X 25
23	40M7195	1	Snap Ring	TK = 1.20 mm
24	L156275	2	Nut	-
25	L219665	1	Compression Spring	-
27	L220248	1	Lever	USE WITH L218660
27	L219664	1	Lever	USE WITH L226311
28	L219662	1	Support	-
29	44M7053	1	Dowel Pin	8 X 55 mm
30	L219663	1	Holder	-
26A	L218660	1	Gas Operated Cylinder	-
26B	L226311	1	Gas Operated Cylinder	-

Steering Column, Tiltable ( - 947640)
