Module, Instrument Panel, W/ CommandPRO™ (673929 - 924526)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL227797	1	Module	SUB FOR AL225236, AL226219
2	AL76568	1	Knob	-
3	21M7265	8	Screw	M5 X 12
4	R44165	1	Lock Nut	ORDER H204146
4	H204146	1	Nut	-
5	R115974	1	Nut	-
6	L170131	2	Screw	-
7	RE189712	1	Boot	ORDER L221355
7	L221355	1	Boot	-
8	AL209398	1	Lever	Turn Signal
9	AL166429	1	Switch	Wiper Switch
10	AL220958	1	Rotary Switch	Rotary Switch
11	L170129	3	Screw	-
12	19M9166	1	Screw	M3 X 6
13	AL222536	1	Module	-
14	L170130	12	Screw	-
15	L169291	1	Guard	-
16	L217036	1	Housing	-
17	RE270408	1	Rotary Switch	Ignition Switch
18	R164403	1	Knob	-
19	L219323	1	Guide	-
20	AL223364	1	Control	Left Hand Reverser
21	AL223602	1	Wiring Harness	-
22	19M7555	3	Screw	M8 X 30
23	AL218342	1	Shield	-
24	L167915	3	Clamp	-
25	AL172312	1	Panel	-
26	L167579	2	Washer	-
27	L166804	2	Plug	-
28	57M7400	14	Elec. Connector Seal	Cavity 8, 11, 12, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24
28	57M7401	5	Elec. Connector Cavity Plug	Cavity 4, 7, 9, 10, 13
28	57M7399	5	Elec. Connector Seal	Cavity 1, 2, 3, 5, 6
28	57M8946	5	Elec. Connector Terminal	Cavity 1, 2, 3, 5, 6
28	57M8732	14	Elec. Connector Terminal	Cavity 8, 11, 12, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24
28	57M8076	1	Elec. Connector Terminal	-
28	57M8084	1	Elec. Connector Accessory	-
28	57M8070	1	Elec. Connector Housing	Connection Point between Harnesses W211 and W231, X735M-1
29	L78202	1	Elec. Connector Housing	Key Switch, S012F
29	57M7089	6	Elec. Connector Terminal	Cavity 1, 3, 4, 5, 6, 7
30	57M9578	1	Elec. Connector Housing	Turn-Signal Lever, X732F, S127
30	57M9580	8	Elec. Connector Terminal	Cavity 1, 3, 4, 5, 6, 7, 8, 9
31	57M8721	1	Elec. Connector Accessory	Instrument Unit (AutoPowr™/IVT™ Transmission and CommandPRO™ Joystick), X733F, A168
31	57M8719	18	Elec. Connector Terminal	Cavity 7, 10, 11, 12, 13, 15, 16, 21, 22, 23, 25, 26, 27, 28, 29, 30, 31, 32
32	57M9579	1	Elec. Connector Housing	Switch for Windshield and Rear Window Wipers, X734F, S128
32	57M9580	11	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 9, 10, 11, 12, 13, 16

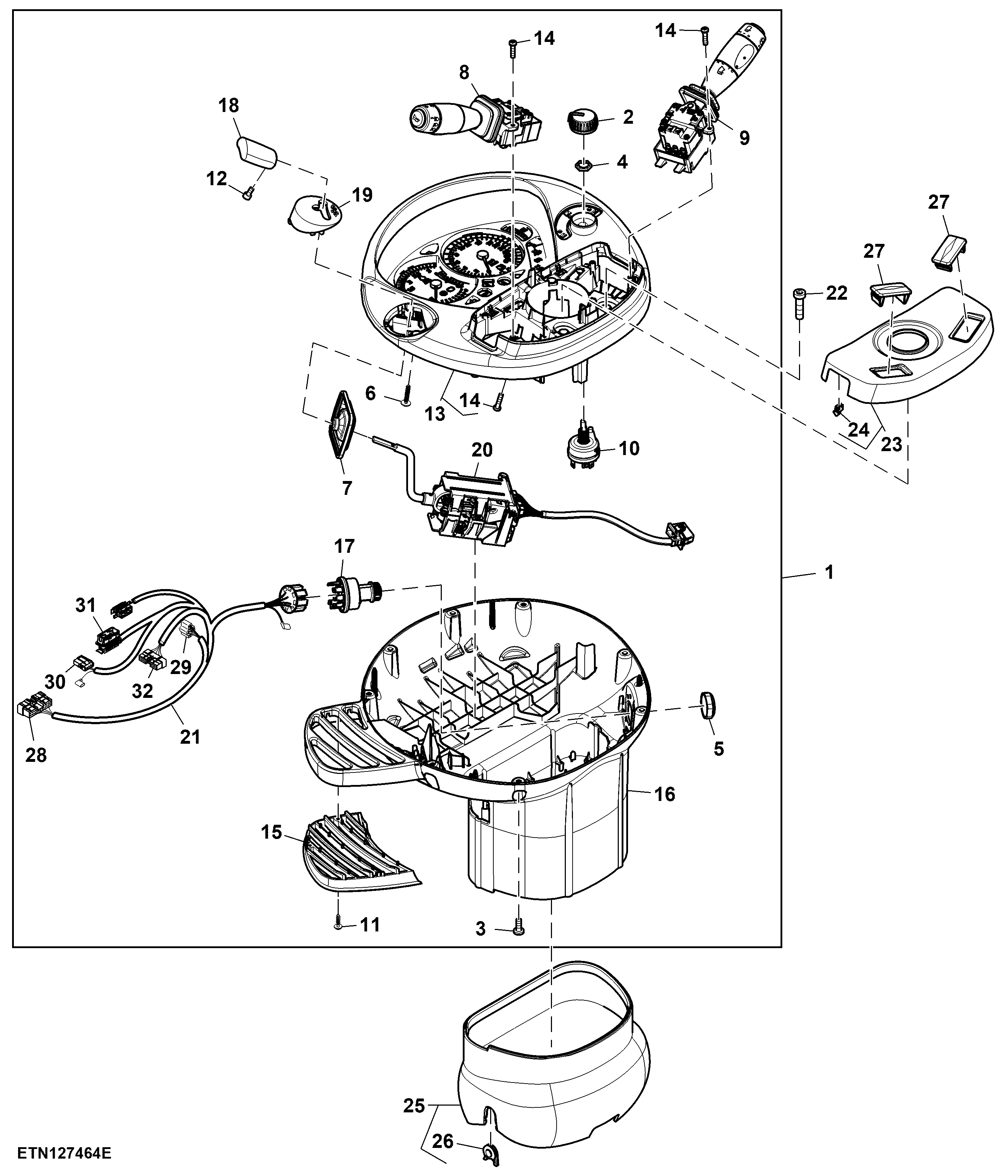

Module, Instrument Panel, W/ CommandPRO™ (673929 - 924526)
