GEAR SHIFTING (POWRQUAD WITH REVERSER CONTROL AT STEERING COLUMN)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L150446	1	Insert	-
2	19M7560	1	Cap Screw	M6 X 16
3	24M7139	1	Washer	6.400 X 18 X 1.600 mm
4	L116840	1	Knob	-
5	19M8866	5	Screw	(OPEN OPERATOR'S STATION) M5 X 16
5	L115292	5	Bolt	(CAB)
6	AL111490	1	Panel	(WITH 16-SPEED TRANSMISSION) (OPEN OPERATOR'S STATION) INCL KEY 7
6	AL173545	1	Panel	(WITH 16-SPEED TRANSMISSION) (CAB) INCL KEY 7
7	L111878	3	Nut	-
8	L102357	3	Nut	-
9	R198159	1	Bushing	SUB FOR L77978
10	24M7024	1	Washer	9 X 28 X 3 mm
11	AL119584	1	Screw	(OPEN OPERATOR'S STATION)
12	L112469	4	Shim	-
13	L101929	1	Bushing	-
14	AL157674	1	Shifter Rod	-
15	34M7172	1	Spring Pin	6 X 30 mm
16	L111191	1	Bushing	-
17	AL150667	1	Bracket	-
18	19M7865	2	Screw	M8 X 16
19	14M7416	2	Flange Nut	M8
20	L114032	1	Pin Fastener	-
21	AL111491	1	Panel	(WITH 20 OR 24-SPEED TRANSMISSION) (OPEN OPERATOR'S STATION) INCL KEY 7
21	AL173546	1	Panel	(WITH 20 OR 24-SPEED TRANSMISSION) (CAB) INCL KEY 7
22	AL201409	1	Indicator	(CAB) (SUB FOR AL175725)
23	M78508	2	Cap Screw	-
24	L111480	1	Push Nut	-
25	AL218299	1	Bracket	SUB FOR AL150667 APPL
26	L203687	1	Nut	-

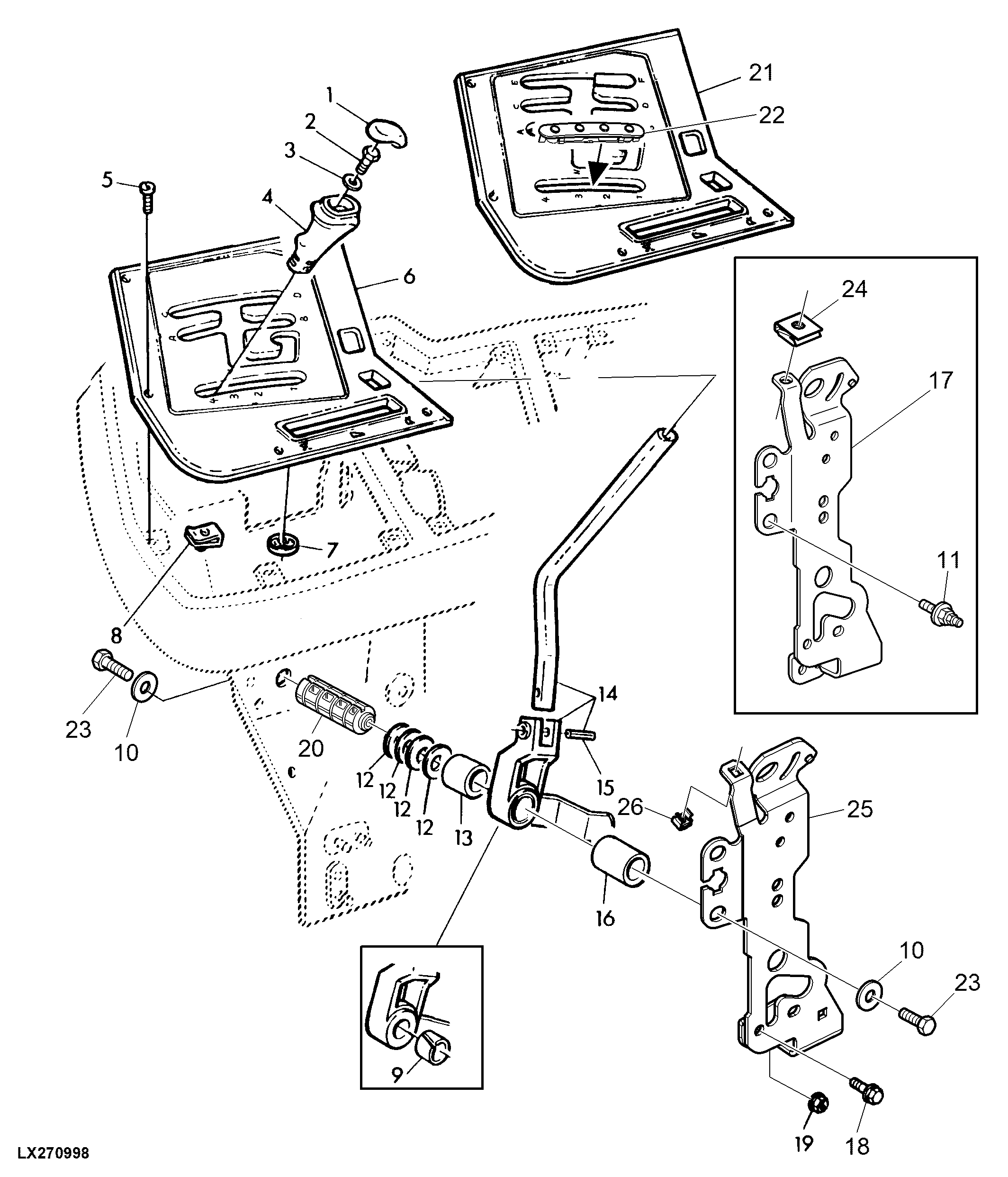

GEAR SHIFTING (POWRQUAD WITH REVERSER CONTROL AT STEERING COLUMN)

Нет текстового описания
