Открытый узел

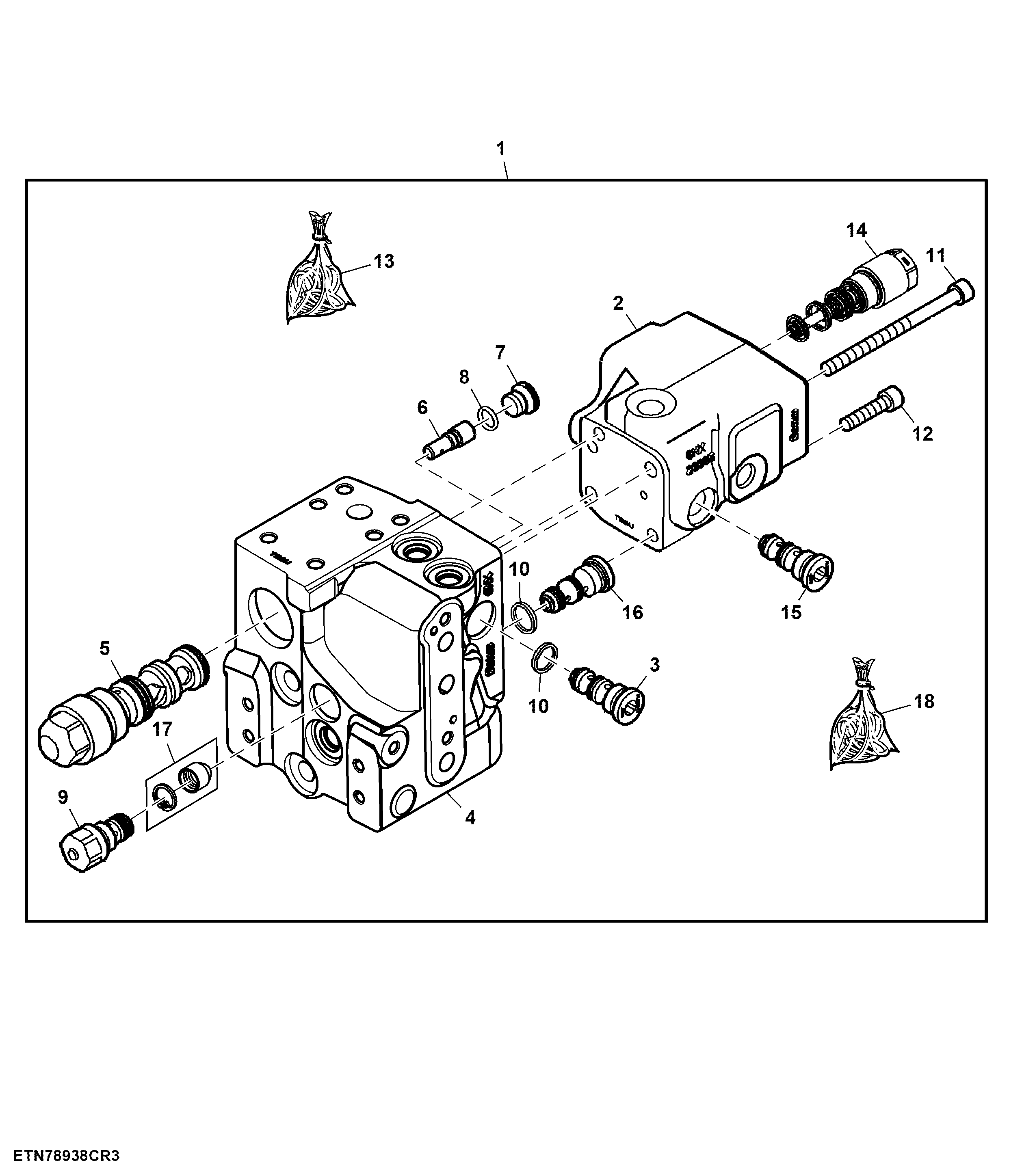

Valve, Priority 2 + 3, W/ PFC-Hydraulics, W/ Power Fill Brake

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL227259	1	Valve	ORDER AL231585
1	AL231261	1	Valve	ORDER AL231585
1	AL233954	1	Valve	SUB FOR AL231585
1	AL207590	1	Valve	ORDER AL231585
2	AL207638	1	Valve	INCLUDES AL165597; USE WITH AL207754
2	AL207640	1	Valve	ORDER AL232767 ; INCLUDES AL165597 AND AL178658; USE WITH AL227581
2	AL232767	1	Valve	INCLUDES AL165597, AL232237 AND AL222495; USE WITH AL227581
3	AL165597	1	Valve	Shuttle Valve, Priority Circuit 1 - 2 V6
4	AL207641	1	Valve	ORDER AL227266; INCLUDES AL207754, AL207788, 15M7076, 51M7041, AL177096, (2) 51M7040, (2) AL165597 AND AL207509
4	AL227266	1	Valve	ORDER AL231264, INCLUDES AL227581, AL226351, 15M7076, 51M7041, AL222498, (2) 51M7040, (2) AL165597 AND AL207509
4	AL231264	1	Valve	ORDER AL231588 ; INCLUDES AL227581, AL226351, 15M7076, 51M7041, AL222498, (2) 51M7040, (2) AL165597 AND AL231703
4	AL233957	1	Valve	SUB FOR AL231588, INCLUDES AL227581, AL226351, 15M7076, 51M7041, AL222498, (2) 51M7040, (2) AL165597, AL231703 AND AL207509
5	AL207754	1	Control Valve	ORDER AL227581 , MARKED AL207754, SUB FOR AL180293 APPL
5	AL227581	1	Control Valve	Priority 3 Valve MARKED AL227581 ; V5
6	AL226351	1	Flow Control Hyd. Valve	-
6	AL207788	1	Flow Control Hyd. Valve	ORDER AL226351
7	15M7076	1	Drain Plug	-
8	51M7041	1	O-Ring	11.300 X 2.200 mm
9	AL209234	1	Pressure Relief Valve	LGTH = 72 mm
9	AL177096	1	Pressure Relief Valve	LGTH = 47.9 mm, LS Pressure Limiting Valve SUB FOR AL222498, V9
10	51M7040	2	O-Ring	9.300 X 2.200 mm
11	L170303	2	Screw	-
12	19M8819	2	Screw	M8 X 35
13	AL207509	1	Seal Kit	-
14	AL178658	1	Control Valve	Priority 2 Valve ORDER AL222495 ; USE WITH AL207640; V3
14	AL222495	1	Control Valve	Priority 2 Valve USE WITH AL207640 AND AL232767; V3
15	AL165597	1	Valve	Shuttle Valve, Steering Valve - Foot Brake Valve V4
16	AL165597	1	Valve	Shuttle Valve, Priority Circuit 1/2 - 3 V7
17	AL231703	1	Screen Kit	-
18	AL232237	1	Seal Kit	USE WITH AL232767

Valve, Priority 2 + 3, W/ PFC-Hydraulics, W/ Power Fill Brake
