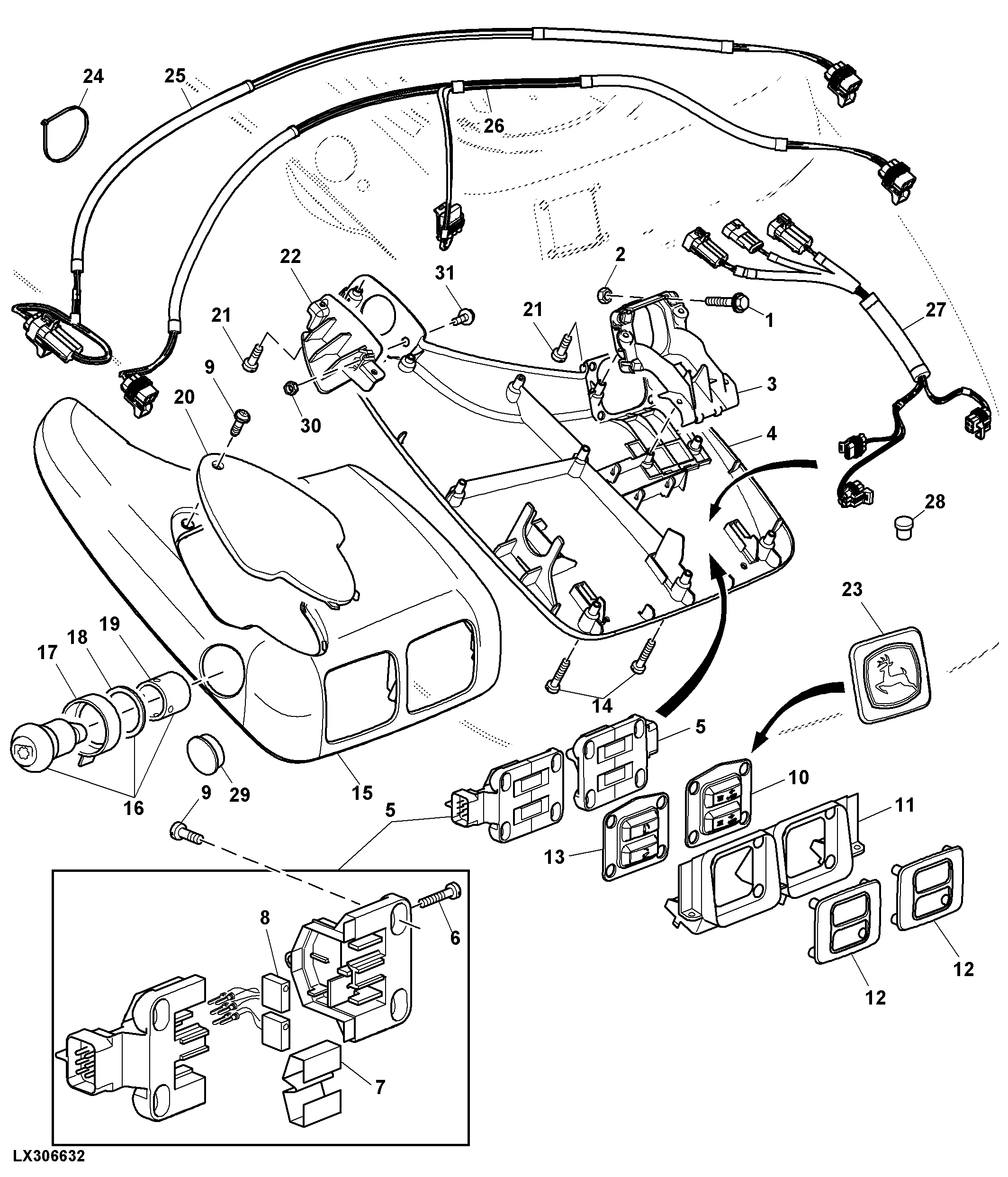

REMOTE CONTROL UNIT LH/RH, ROCKSHAFT, PTO, E-SCSV POS. 3

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7862	2	Screw	M6 X 20
1	19M7077	1	Cap Screw	M6 X 20, (10.9)
2	14M7303	1	Flange Nut	M6
3	L170409	1	Adapter Fitting	LH
3	L170417	1	Adapter Fitting	RH
4	L170405	1	Housing	LH
4	L170413	1	Housing	RH
5	AL172871	1	Control	LH,RH (SUB FOR AL170735)
6	37M7235	1	Screw	-
7	L168608	1	Clip	-
8	AL81777	2	Elec. Connector Terminal	-
9	37M7411	1	Screw	-
10	L174213	1	Boot	(WITH REMOTE CONTROL ELECTR. OPERATED VALVE POS. 3) (SUB FOR L168859)
11	L170410	1	Adapter Fitting	LH
11	L170418	1	Adapter Fitting	RH
12	R234273	1	Frame	-
13	L154458	1	Boot	(WITH REMOTE CONTROL ROCKSHAFT)
14	37M7269	9	Screw	-
15	L170404	1	Housing	LH
15	L170412	1	Housing	RH
16	AL208892	1	Switch	(WITH REMOTE CONTROL PTO)
16	AL112561	1	Switch	(WITH REMOTE CONTROL PTO)
17	L170419	1	Adapter Fitting	RH
17	L170411	1	Adapter Fitting	LH
18	L112914	1	Washer	USE WITH AL112561
18	L217105	2	Washer	USE WITH AL208892
19	L112854	1	Half Sleeve	FOR AL112561
19	L217104	2	Sleeve	USE WITH AL208892
20	L170420	1	Cover	LH
20	L170421	1	Cover	RH
21	37M7286	4	Screw	-
22	L170408	1	Adapter Fitting	LH
22	L170416	1	Adapter Fitting	RH
23	L170422	1	Cover	-
24	L222109	1	Tie Band	-
25	AL175710	1	Wiring Harness	-
26	AL178170	1	Wiring Harness	-
27	AL174449	2	Wiring Harness	(WITH REMOTE CONTROL ROCKSHAFT)
28	99M7043	1	Plug	-
29	99M7056	1	Plug	-
30	14M7272	2	Nut	M6
31	19M7862	2	Screw	M6 X 20
..	AL174743	1	Socket	FI,RH,CNLA (ORD AL201583)
..	AL174742	1	Module	FI,LH,CNLA (ORD AL201583)
..	AL174741	1	Control	FI,CNLA (ORD AL201582)
..	AL201582	1	Control	FI
..	AL201583	1	Module	FI

REMOTE CONTROL UNIT LH/RH, ROCKSHAFT, PTO, E-SCSV POS. 3
