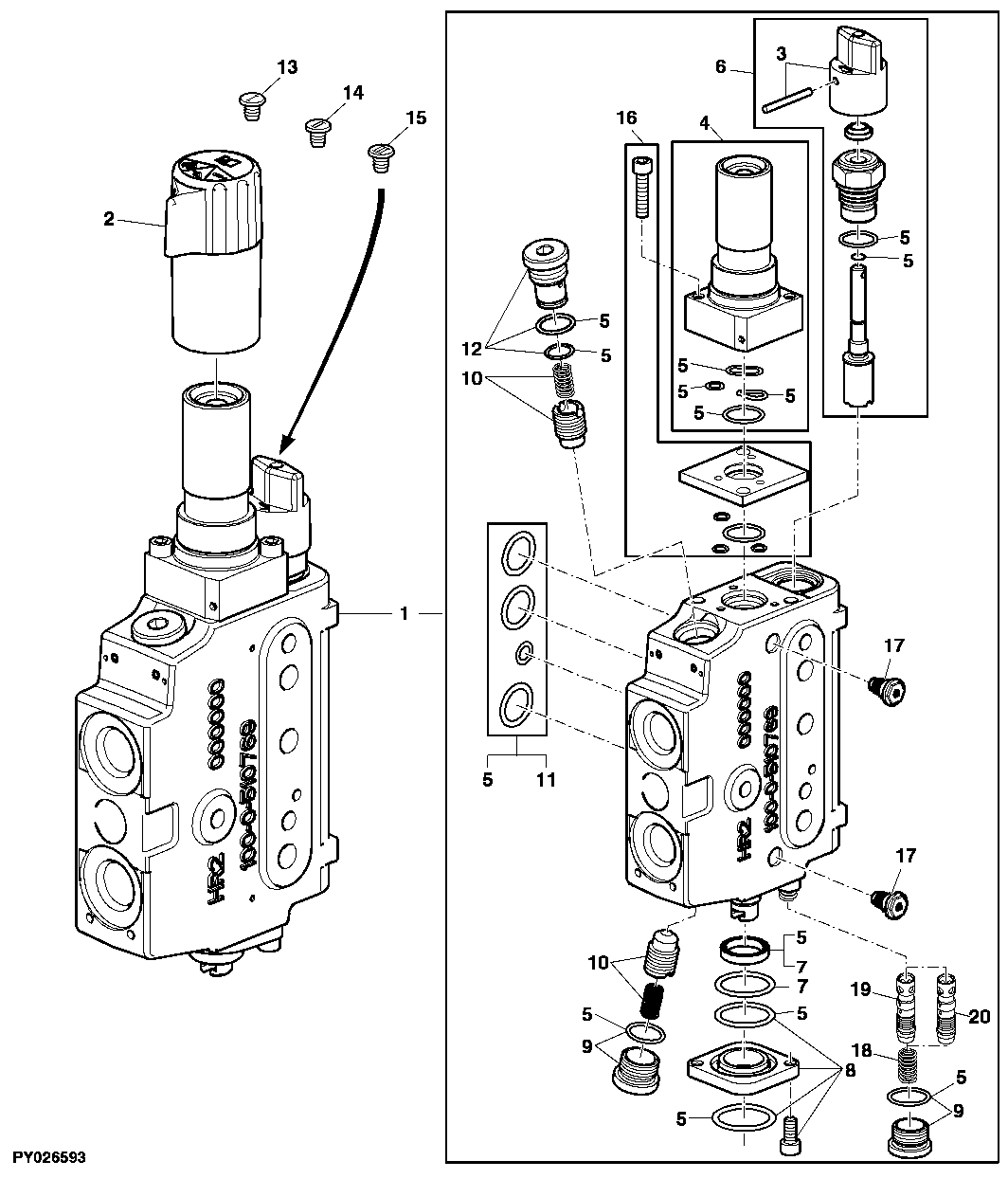

MECHANICALLY OPERATED SELECTIVE CONTROL VALVE (M-SCV) 350 SERIES

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL206036	1	Valve	W/O KEY 2
2	L169977	1	Knob	-
3	AL177612	1	Knob	-
4	AL178285	1	Detent Kit	ORDER AL203286
4	AL203286	1	Detent Kit	ORDER AL235814
4	AL235814	1	Detent Kit	-
5	AL203572	1	Seal Kit	ORDER AL207508, SUB FOR AL172963
5	AL207508	1	Seal Kit	-
6	AL177613	1	Repair Kit	ORDER AL207507
6	AL207507	1	Repair Kit	-
7	AL203292	1	Seal Kit	SUB FOR L170240
8	AL172966	2	Flange Kit	-
9	AL172974	1	Fitting Plug	-
10	AL214530	2	Spool Kit	SUB FOR AL204321 APPL
11	AL172964	1	Seal Kit	ORDER AL207509
11	AL207509	1	Seal Kit	-
12	AL172973	1	Assembly Line Parts	ORDER AL200946
12	AL200946	1	Check Valve	-
13	L170555	1	Plug	MARKED I
14	L170556	1	Plug	MARKED II
15	L170557	1	Plug	MARKED III
16	AL203293	1	Adapter Kit	-
17	AL180447	2	Check Valve	-
18	L203821	1	Compression Spring	-
19	AL200965	1	Valve Spool	-
20	AL204988	1	Valve Spool	(FOR REDUCED LOAD SENSE FLOW) ORDER AL200965
..	AL207613	1	Selective Control Valve	(INCLUDES 1 M-SCV 350 SERIES AND 2 QUICK DISCONNECT COUPLERS DELUXE) (INCLUDES 1 DUST PROTECTION HOUSING AND LEAK-OFF-OIL PARTS) (INCLUDES M-SCV CONTROL) FI

MECHANICALLY OPERATED SELECTIVE CONTROL VALVE (M-SCV) 350 SERIES
