Открытый узел

CONNECTOR, FOR ENGINES

CONNECTOR, FOR ENGINES

CONNECTOR, FOR ENGINES

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

CONNECTOR, FOR ENGINES

Нет текстового описания

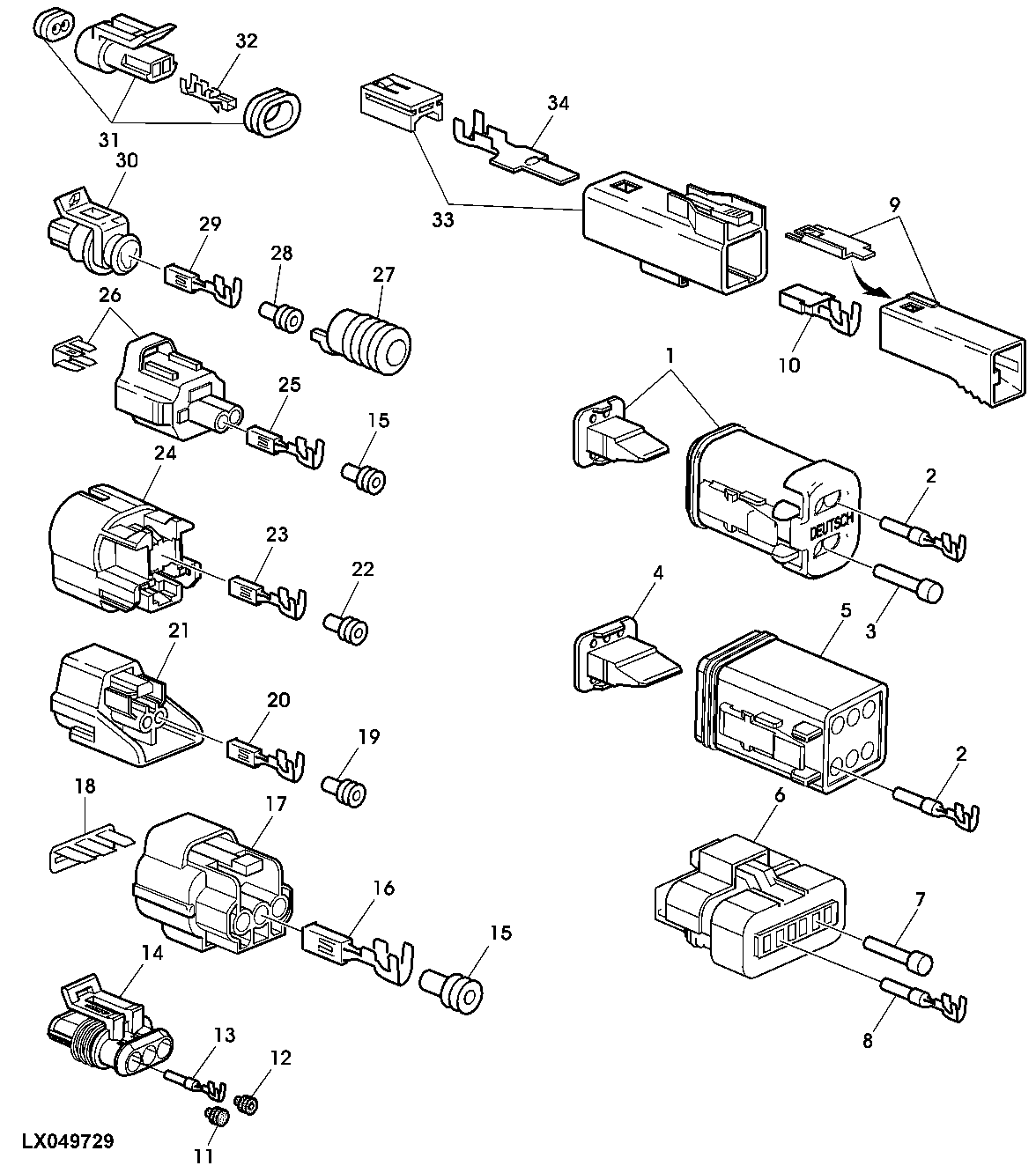

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M8635	1	Elec. Connector Housing	-
2	57M7546	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 0.2-0.75MM²
3	R78069	1	Elec. Connector Cavity Plug	-
4	57M7677	1	Elec. Connector Terminal	-
5	57M7630	1	Electrical Connector Assy	-
6	57M8552	1	Elec. Connector Housing	-
7	57M8555	1	Elec. Connector Seal	-
8	57M8598	5	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 0.2-0.75MM²
9	57M9566	1	Electrical Connector Assy	-
10	57M8225	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 10MM² /8MM
11	57M7401	1	Elec. Connector Cavity Plug	-
12	57M7938	2	Elec. Connector Terminal	-
13	57M8571	2	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 0.75-1MM²
14	57M8542	1	Elec. Connector Housing	-
15	57M8568	1	Elec. Connector Seal	(CABLE GAUGE PLUG WIDTH) -0.75MM²
15	57M7833	1	Elec. Connector Seal	(CABLE GAUGE PLUG WIDTH) -1MM²
16	57M8558	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 0.5-1MM²
17	57M8407	1	Elec. Connector Housing	-
18	57M8247	1	Electrical Connector Assy	-
19	57M8405	2	Elec. Connector Terminal	-
20	57M8404	2	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) -1MM²
21	57M8403	1	Elec. Connector Housing	-
22	57M8603	1	Elec. Connector Seal	-
23	57M8613	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) -0.5MM²
24	57M8612	1	Elec. Connector Housing	-
25	57M8402	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 0.75-1MM²
26	57M8400	1	Electrical Connector Assy	-
27	57M9039	1	Elec. Connector Accessory	-
28	57M8566	1	Elec. Connector Seal	-
28	57M8603	1	Elec. Connector Seal	-
29	57M8613	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 0.75-1MM²
29	57M8618	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 0.35-05MM²
30	57M8557	1	Elec. Connector Housing	-
31	57M7379	1	Elec. Connector Housing	-
32	57M9572	2	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 0.8-1MM² / 1.5MM
33	57M8230	1	Electrical Connector Assy	-
34	57M8229	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 10-16MM²/ 8MM
