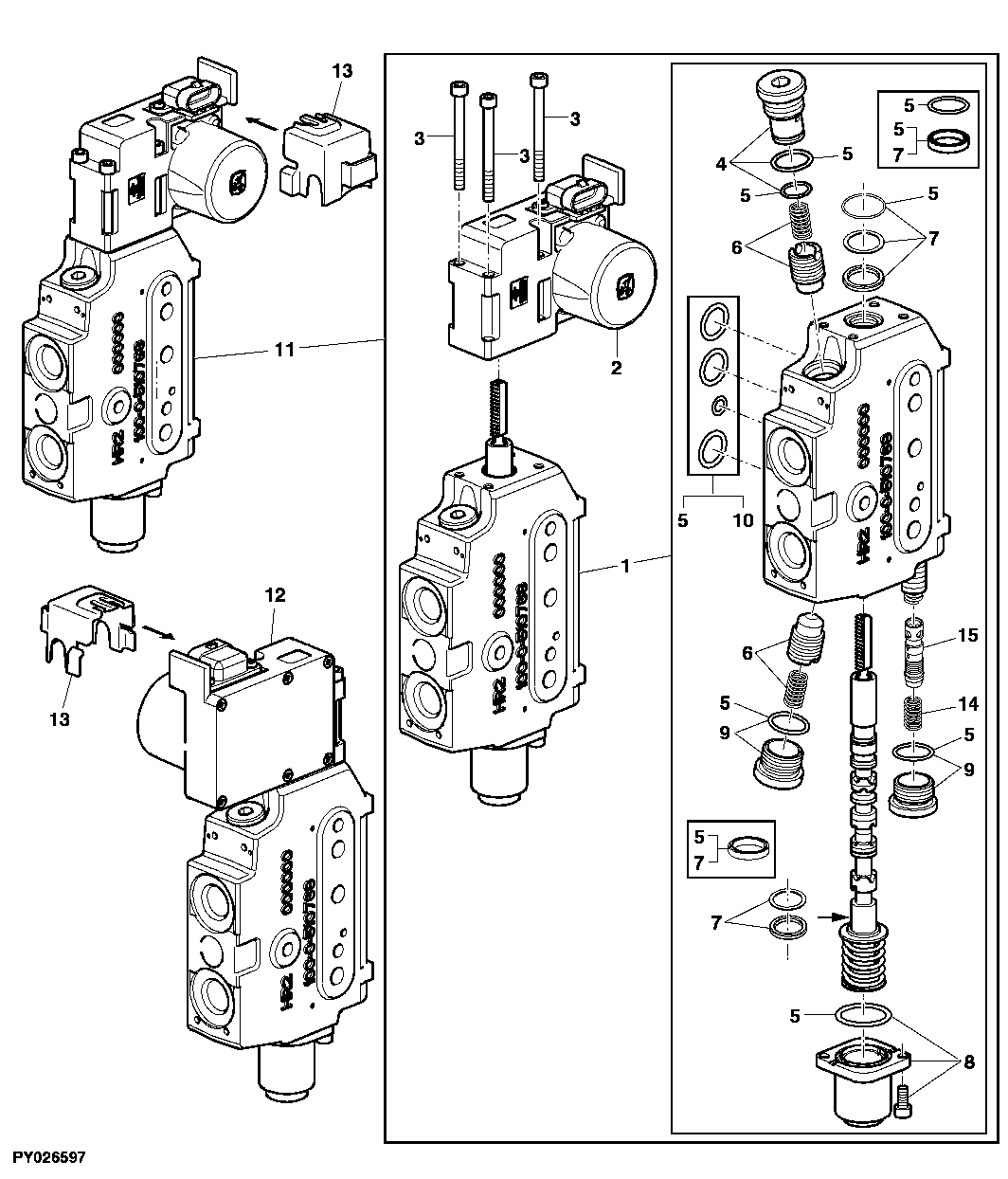

300 SERIES ELECTRONICALLY OPERATED SELECTIVE CONTROL VALVE (E-SCV)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL202028	1	Selective Control Valve	ORDER AL233592
1	AL206039	1	Selective Control Valve	ORDER AL233592
1	AL233592	1	Selective Control Valve	-
1	AL174922	1	Selective Control Valve	ORD AL202028, SUB FOR AL172560
2	AL170550	1	Motor	ORDER AL219124
2	AL205608	1	Motor	ORDER AL219124
2	AL219124	1	Motor	-
3	19M8705	3	Screw	M6 X 65
4	AL200946	1	Check Valve	(SUB FOR AL172973)
5	AL203572	1	Seal Kit	SUB FOR AL172963
6	AL172967	2	Valve Kit	FOR AL172560
6	AL200776	2	Spool Kit	FOR AL202028, AL174922
6	AL214530	2	Spool Kit	FOR AL206039, SUB FOR AL204321 APPL
7	AL203292	2	Seal Kit	-
7	L170240	2	V-Ring Seal	(FOR AL172967)
8	AL172968	1	Cap	-
9	AL172974	2	Fitting Plug	-
10	AL172964	1	Seal Kit	ORDER AL207509
10	AL207509	1	Seal Kit	-
11	AL174921	1	Control Valve	(ORD AL202027) (SUB FOR AL172554)
11	AL202027	1	Control Valve	ORDER AL206039, AL219124 AND (3) 19M8705
12	AL174920	1	Selective Control Valve	(ORD AL202026) (SUB FOR AL172555)
12	AL202026	1	Selective Control Valve	ORDER AL206039, AL219124 AND (3) 19M8705
13	L172896	1	Elec. Connector Accessory	-
14	L203821	1	Compression Spring	(FOR AL174922)
15	AL200965	1	Valve Spool	(FOR AL202028)
..	AL176291	1	Selective Control Valve	(INCLUDES 1 E-SCV AND 2 QUICK DISCONNECT COUPLERS DELUXE) (INCLUDES 1 DUST PROTECTION HOUSING AND LEAK-OFF-OIL PARTS) (INCLUDES E-SCV CONTROL) MARKED III,FI,CNLA,(ORD AL204113)
..	AL176145	1	Selective Control Valve	(INCLUDES 1 E-SCV AND 2 QUICK DISCONNECT COUPLERS DELUXE) (INCLUDES 1 DUST PROTECTION HOUSING AND LEAK-OFF-OIL PARTS) (INCLUDES E-SCV CONTROL) MARKED IV,FI,CNLA,(ORD AL204112)
