Открытый узел

Wiring Harness, RH Console, W/ Processor 4100, W/ PowrQuad™ PLUS, W/ AutoQuad™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL215482	1	Wiring Harness	-
2	L173487	3	Clamp	-
3	L168124	1	Grommet	-
4	AL211967	1	Wiring Harness	-
5	R537804	1	Bezel	-
6	AH225363	1	Clip	-
7	L222109	2	Tie Band	-
8	AL215483	1	Wiring Harness	-
9	AL218444	1	Wiring Harness	SUB FOR AL215477
10	HXE21678	1	Cover	-
11	57M9229	1	Clip	-
12	L222108	1	Tie Band	-
13	57M7255	1	Elec. Connector Housing	Hand Throttle Potentiometer, X370F
13	57M9713	1	Elec. Connector Accessory	-
13	57M7494	3	Elec. Connector Terminal	Cavity A, B, C
13	57M9214	3	Elec. Connector Seal	Cavity A, B, C
14	57M8076	1	Elec. Connector Terminal	-
14	57M8084	1	Elec. Connector Accessory	-
14	57M7400	11	Elec. Connector Seal	Cavity 1, 2, 3, 4, 7, 10, 11, 13, 16, 20, 21
14	57M8732	11	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 7, 10, 11, 13, 16, 20, 21
14	57M8070	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W201 and W241, X761M
15	57M7255	1	Elec. Connector Housing	Hand Clutch, X910F-2
15	57M7317	1	Elec. Connector Accessory	-
15	57M7494	3	Elec. Connector Terminal	Cavity A, B, C
15	57M9214	3	Elec. Connector Seal	Cavity A, B, C
16	57M8416	1	Elec. Connector Housing	Declutch Gear Shift, X910F
16	57M7318	1	Elec. Connector Accessory	-
16	57M7494	2	Elec. Connector Terminal	Cavity A, B
16	57M10770	2	Elec. Connector Terminal	Cavity C, D
16	57M9214	2	Elec. Connector Seal	Cavity A, B
16	57M9215	2	Elec. Connector Seal	Cavity C, D
17	57M7289	1	Elec.Connect Locking Device	-
17	R104919	2	Elec. Connector Terminal	Cavity A, B
17	57M7256	1	Elec. Connector Housing	Park Switch, X503M
17	57M9214	2	Elec. Connector Seal	Cavity A, B
18	57M7257	1	Elec. Connector Housing	Front PTO Switch, X127M
18	57M9702	1	Elec. Connector Accessory	-
18	57M7252	3	Elec. Connector Terminal	Cavity A, B, C
18	57M9215	3	Elec. Connector Seal	Cavity A, B, C
19	57M7255	1	Elec. Connector Housing	Up Down Switch, X660F-2
19	57M9702	1	Elec. Connector Accessory	-
19	57M7494	2	Elec. Connector Terminal	Cavity A, B
19	57M10770	1	Elec. Connector Terminal	Cavity C
19	57M9214	2	Elec. Connector Seal	Cavity A, B
19	57M9215	1	Elec. Connector Seal	Cavity C
20	57M7437	2	Elec. Connector Terminal	Cavity 2, 4
20	57M7550	1	Elec. Connector Terminal	Cavity 1
20	57M7712	1	Electrical Connector Assy	Hitch Module, X016F
20	57M7718	1	Electrical Connector Assy	-
21	57M7065	1	Elec. Connector Housing	Cigarette Lighter, X128F
21	57M7430	2	Elec. Connector Terminal	Cavity 1, 2
22	57M10640	1	Elec. Connector Housing	Cab Switch Module, X996F
22	57M8609	6	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 7, 8
23	57M8084	1	Elec. Connector Accessory	-
23	57M7400	18	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 16, 17, 18, 19, 21, 22, 23, 24
23	57M9042	18	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 16, 17, 18, 19, 21, 22, 23, 24
23	57M8076	1	Elec. Connector Terminal	-
23	57M8070	1	Elec. Connector Housing	Connection Point on Harness W252, X422M
24	57M7257	1	Elec. Connector Housing	Rear PTO Switch, X125M
24	57M9702	1	Elec. Connector Accessory	-
24	57M7252	3	Elec. Connector Terminal	Cavity A, B, C
24	57M9215	3	Elec. Connector Seal	Cavity A, B, C
25	57M10362	2	Clamp	-
26	L206645	1	Tie Band	-

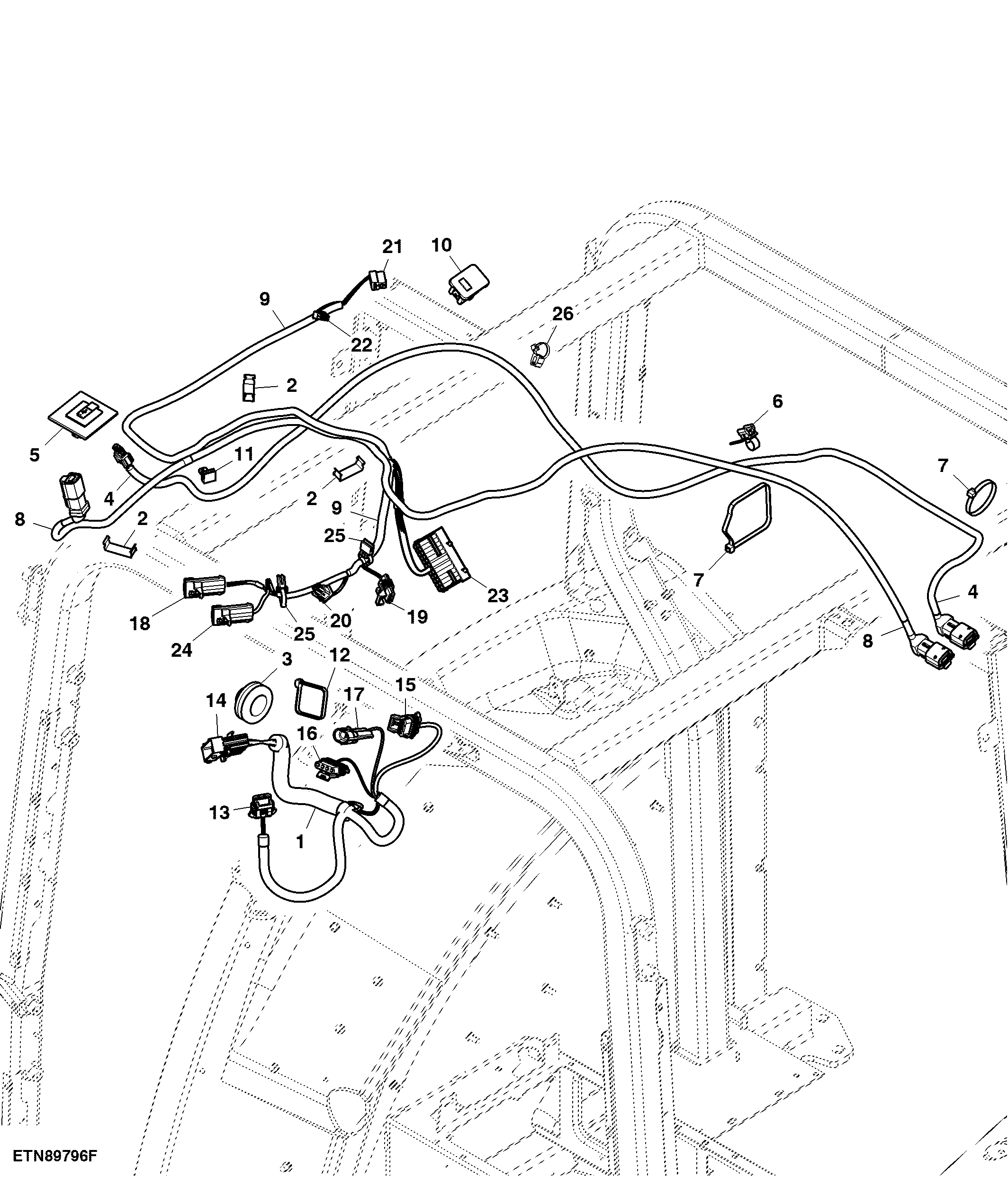

Wiring Harness, RH Console, W/ Processor 4100, W/ PowrQuad™ PLUS, W/ AutoQuad™
