Открытый узел

Wiring Harness / Control Switch, Front PTO, W/ CommandARM™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE576339	1	Toggle/Rocker Switch	-
2	AL221959	1	Wiring Harness	-
3	57M9800	1	Elec. Connector Housing	Connection Point between Harnesses W291 and W701, X1083F
3	57M9809	10	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 8, 9, 11, 12
3	57M10336	2	Elec. Connector Cavity Plug	Cavity 7, 10
4	57M8069	1	Elec. Connector Housing	Connection Point between Harnesses W291 and W511, X1018M
4	57M8075	1	Elec. Connector Seal	-
4	57M8082	1	Elec. Connector Accessory	-
4	57M9042	4	Elec. Connector Terminal	Cavity 2, 5, 9, 10
4	57M7399	2	Elec. Connector Seal	Cavity 1, 16
4	57M7400	4	Elec. Connector Seal	Cavity 2, 5, 9, 10
4	57M7401	10	Elec. Connector Cavity Plug	Cavity 3, 4, 6, 7, 8, 11, 12, 13, 14, 15
5	57M10514	2	Elec. Connector Terminal	Cavity A1, B1
5	57M10334	2	Elec. Connector Cavity Plug	Cavity L3, M3
5	57M10333	27	Elec. Connector Cavity Plug	Cavity A2, A3, A4, B3, B4, C1, C2, C3, D1, D2, D3, D4, E1, E2, E3, E4, F1, F3, F4, G1, G2, G3, G4, H1, H2, H3, J1
5	57M10331	4	Elec. Connector Terminal	Cavity L4, M1, M2, M4
5	57M10617	2	Elec. Connector Housing	Cavity L1, L2
5	57M10330	11	Elec. Connector Terminal	Cavity B2, C4, F2, H4, J2, J3, J4, K1, K2, K3, K4
5	57M10613	1	Elec. Connector Housing	-
5	57M10614	1	Elec. Connector Housing	Front Chassis Control Unit, X1322F
6	57M8416	1	Elec. Connector Housing	Connection Point between Harnesses W291 and W741, X002F
6	57M7318	1	Elec. Connector Accessory	-
6	R104846	4	Elec. Connector Terminal	Cavity A, B, C, D
6	57M9215	4	Elec. Connector Seal	Cavity A, B, C, D
7	57M7789	1	Elec. Connector Housing	-
7	57M7727	1	Electrical Connector Assy	-
7	57M7500	3	Elec. Connector Terminal	Cavity A, B, C
7	57M7788	1	Electrical Connector Assy	Cavity D

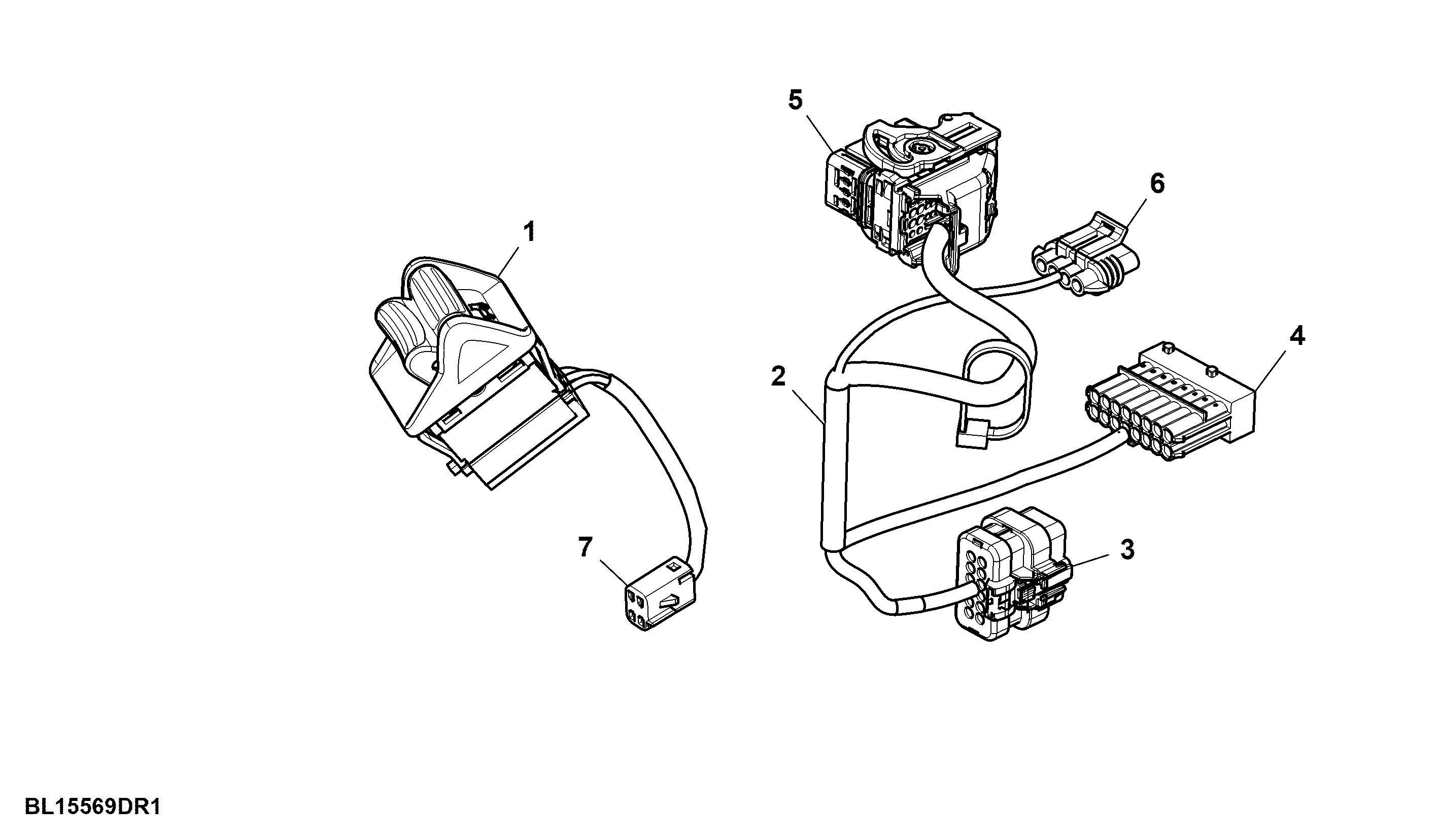

Wiring Harness / Control Switch, Front PTO, W/ CommandARM™
