Module, Instrument Panel, W/ CommandPRO™ (036001 - 977135)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL218342	1	Shield	-
2	L167915	3	Clamp	-
3	AL230802	1	Module	SUB FOR AL228146
4	AL166429	1	Switch	Wiper Switch
5	L219323	1	Guide	-
6	AL220958	1	Rotary Switch	Light Switch
7	AL228138	1	Lever	Turn Signal
8	L217036	1	Housing	-
9	R44165	1	Lock Nut	ORDER H204146
9	H204146	1	Nut	-
10	L169291	1	Guard	-
11	AL223602	1	Wiring Harness	-
12	L170130	12	Screw	-
13	RE189712	1	Boot	ORDER L221355
13	L221355	1	Boot	-
14	R164403	1	Knob	-
15	RE270408	1	Rotary Switch	Ignition Switch
16	AL222536	1	Module	-
17	19M9166	1	Screw	M3 X 6
18	AL223364	1	Control	Left Hand Reverser
19	21M7265	8	Screw	M5 X 12
20	AL76568	1	Knob	-
21	L170129	3	Screw	-
22	L166804	2	Plug	-
23	19M7555	3	Screw	M8 X 30
24	AL172312	1	Panel	-
25	L167579	2	Washer	-
26	R115974	1	Nut	-
27	57M7399	5	Elec. Connector Seal	Cavity 1,2,3,5,6
27	57M7401	5	Elec. Connector Cavity Plug	Cavity 4,7,9,10,13
27	57M7400	14	Elec. Connector Seal	Cavity 8,11,12,14,15,16,17,18,19,20,21,22,23,24
27	57M8946	5	Elec. Connector Terminal	Cavity 1,2,3,5,6
27	57M8732	14	Elec. Connector Terminal	Cavity 8,11,12,14,15,16,17,18,19,20,21,22,23,24
27	57M8076	1	Elec. Connector Terminal	-
27	57M8084	1	Elec. Connector Accessory	-
27	57M8070	1	Elec. Connector Housing	Connection Point between Harnesses W211 and W231, X735M-1
28	L78202	1	Elec. Connector Housing	Key Switch, S012F
28	57M7089	6	Elec. Connector Terminal	Cavity 1,3,4,5,6,7
29	57M9578	1	Elec. Connector Housing	Turn-Signal Lever, X732F, S127
29	57M9580	8	Elec. Connector Terminal	Cavity 1,3,4,5,6,7,8,9
30	57M8721	1	Elec. Connector Accessory	Instrument Unit (AutoPowr™/IVT™ Transmission and CommandPRO™ Joystick), X733F, A168
30	57M8719	18	Elec. Connector Terminal	Cavity 7,10,11,12,13,15,16,21,22,23,25,26,27,28,29,30,31,32
31	57M9579	1	Elec. Connector Housing	Switch for Windshield and Rear Window Wipers, X734F, S128
31	57M9580	11	Elec. Connector Terminal	Cavity 1,2,3,4,5,9,10,11,12,13,16
32	L222902	2	Screw	-

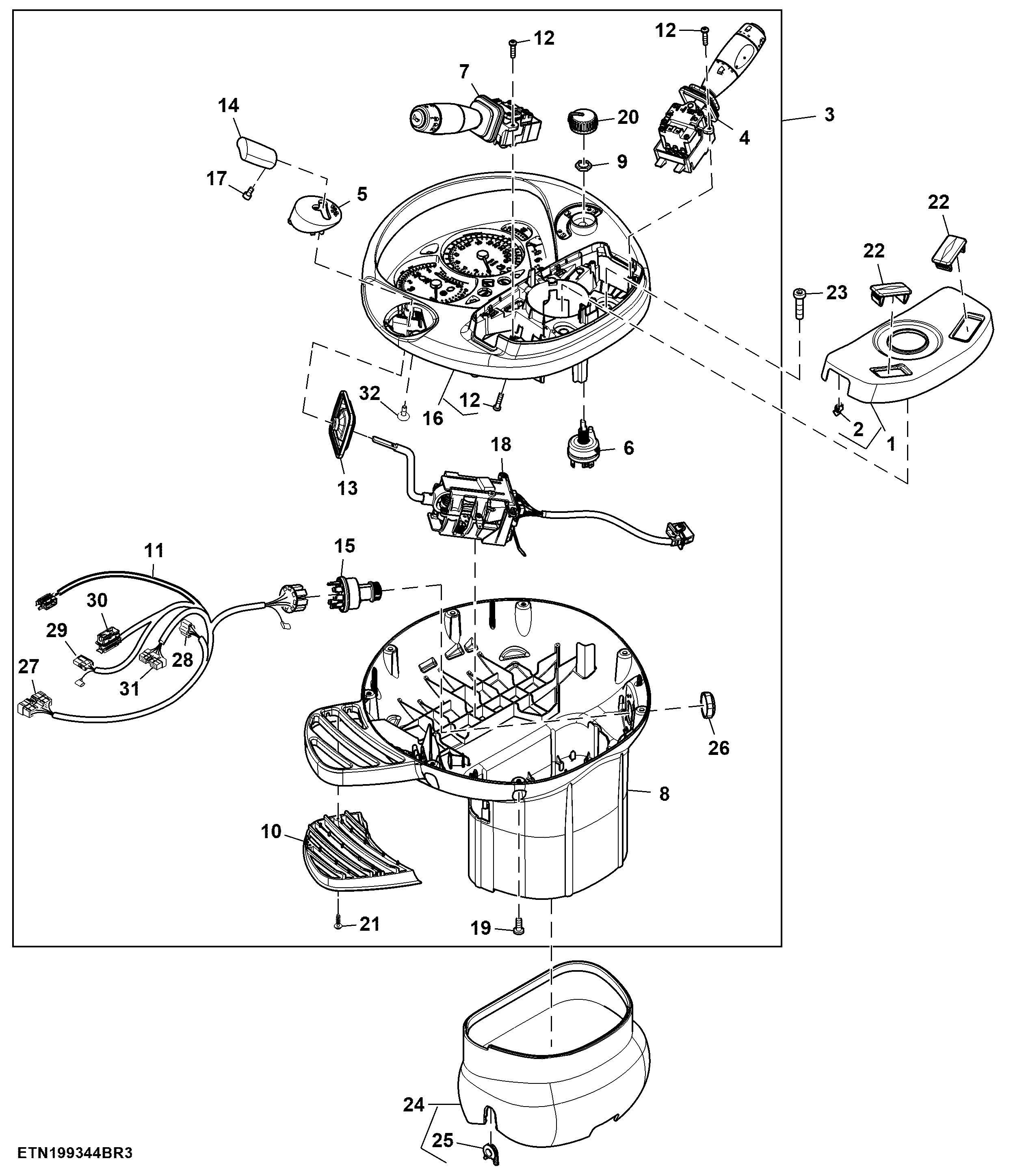

Module, Instrument Panel, W/ CommandPRO™ (036001 - 977135)
