Module, Instrument Panel, DirectDrive Transmission ( - 036000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL227796	1	Module	SUB FOR AL224071, AL226218
2	AL221808	1	Module	-
3	L170130	12	Screw	-
4	AL209398	1	Lever	Turn Signal
5	AL166429	1	Switch	Wiper Switch
6	AL206074	1	Wiring Harness	-
7	AL76568	1	Knob	-
8	RE270408	1	Rotary Switch	Ignition Switch
9	AL220958	1	Rotary Switch	Rotary Switch
10	L217036	1	Housing	-
11	L169291	1	Guard	-
12	R164403	1	Knob	-
13	RE189712	1	Boot	ORDER L221355
13	L221355	1	Boot	-
14	L170129	3	Screw	-
15	L170131	2	Screw	-
16	R115974	1	Nut	-
17	R44165	1	Lock Nut	ORDER H204146
17	H204146	1	Nut	-
18	21M7265	8	Screw	M5 X 12
19	19M9166	1	Screw	M3 X 6
20	L203679	1	Guide	-
21	40M7251	1	Snap Ring	-
22	40M7082	1	Snap Ring	-
23	34M7159	1	Spring Pin	3 X 12 mm
24	37M7215	3	Screw	-
25	19M7555	3	Screw	M8 X 30
26	AL218342	1	Shield	-
27	L167915	3	Clamp	-
28	AL172312	1	Panel	-
29	L167579	2	Washer	-
30	L166804	2	Plug	-
31	AL202652	1	Control	Left Hand Reverser
32	L78202	1	Elec. Connector Housing	Connector of Key Switch, S001F
32	57M7089	6	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6
33	57M8721	1	Elec. Connector Accessory	Connector of Instrument Cluster, X733F
33	57M8719	17	Elec. Connector Terminal	Cavity 7, 10, 11, 12, 13, 15, 16, 21, 22, 23, 25, 26, 27, 28, 29, 31, 32
34	57M9578	1	Elec. Connector Housing	Connector of Turn Signal Lever, X732F
34	57M9580	8	Elec. Connector Terminal	Cavity 1, 3, 4, 5, 6, 7, 8, 9
35	57M8070	1	Elec. Connector Housing	Connection Point on Harness W231, X735M-1
35	57M7401	6	Elec. Connector Cavity Plug	Cavity 6, 7, 9, 10, 13, 18
35	57M8076	1	Elec. Connector Terminal	-
35	57M7399	5	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5
35	57M7400	13	Elec. Connector Seal	Cavity 8, 11, 12, 14, 15, 16, 17, 19, 20, 21, 22, 23, 24
35	57M8946	5	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5
35	57M8943	1	Elec.Connect Locking Device	-
36	57M8758	1	Elec. Connector Housing	Connector of Light Switch, X774F
36	57M9582	5	Elec. Connector Terminal	Cavity B, 1, 2, 3, 4
36	57M8757	4	Elec.Connect Locking Device	-
36	57M8759	1	Elec.Connect Locking Device	-
37	57M9579	1	Elec. Connector Housing	Connector of Switch for Windshield and Rear Window Wipers, X734F
37	57M9580	11	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 9, 10, 11, 12, 13, 16

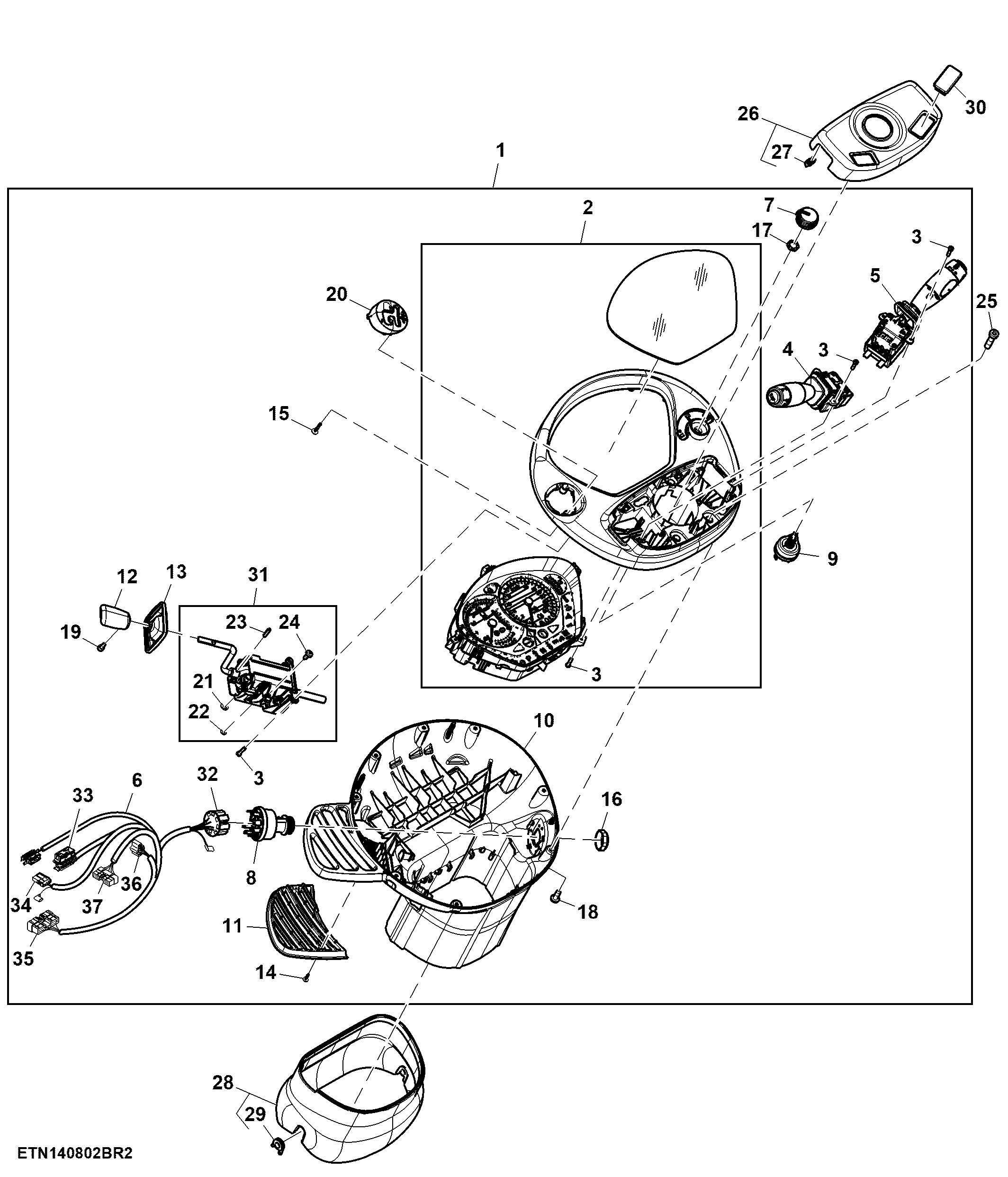

Module, Instrument Panel, DirectDrive Transmission ( - 036000)
