Открытый узел

Wiring Harness, 60A ISOBUS Socket, Front Hitch, Attachment

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL217644	1	Wiring Harness	-
2	AL218506	1	Wiring Harness	ORDER AL228356
2	AL228356	1	Wiring Harness	-
3	L219643	1	Bracket	-
4	19M7660	1	Screw	M8 X 20
5	RE210023	1	Electrical Connector Assy	Front Implement Socket, X840F-1
5	57M7614	2	Elec. Connector Terminal	Cavity 1, 3
5	57M8593	2	Elec. Connector Terminal	Cavity 2, 4
6	57M9033	1	Elec. Connector Housing	Front Implement Socket, X840F-2
6	57M7618	1	Electrical Connector Assy	-
6	57M8165	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
7	57M8170	1	Elec. Connector Accessory	Connection Point between Harnesses W431 and W432, X867M
7	57M8202	1	Elec. Connector Terminal	Cavity 2
7	57M8201	2	Elec. Connector Terminal	Cavity 1, 2
8	57M10302	1	Elec. Connector Housing	Connection Point between Harnesses W431 and W432, X865M
8	57M10525	2	Elec. Connector Terminal	Cavity 1, 2
8	57M10524	4	Elec. Connector Terminal	Cavity 3, 4, 5, 6
9	57M8169	1	Elec. Connector Housing	Connection Point between Harnesses W431 and W432, X867F
9	57M8200	2	Elec. Connector Terminal	Cavity 1, 2
9	57M8202	2	Elec. Connector Terminal	Cavity 1, 2
10	57M10301	1	Elec. Connector Housing	Connection Point between Harnesses W431 and W432, X865F
10	57M8545	4	Elec. Connector Terminal	Cavity 3, 4, 5, 6
10	57M8565	2	Elec. Connector Terminal	Cavity 1, 2
11	57M7175	1	Elec. Connector Terminal	Ground Point, XGND64
12	57M7263	1	Elec. Connector Housing	Connection Point between Harnesses W421 and W433, X805M-1
12	57M7291	1	Electrical Connector Assy	-
12	57M9555	1	Clip	-
12	57M7252	4	Elec. Connector Terminal	Cavity B, D, E, F
12	57M9215	4	Elec. Connector Seal	Cavity B, D, E, F
12	57M7259	2	Elec. Connector Seal	Cavity A, C
13	57M9042	2	Elec. Connector Terminal	Cavity 1, 3
13	57M7399	2	Elec. Connector Seal	Cavity 2, 4
13	57M7400	2	Elec. Connector Seal	Cavity 1, 3
13	57M10703	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W401 and W431, X744M
14	57M11093	1	Elec. Connector Housing	X1271F
15	57M10702	1	Elec. Connector Housing	Connector for Implement Socket, X744F-2
15	57M9585	1	Elec. Connector Accessory	-
15	57M8584	2	Elec. Connector Terminal	Cavity 1, 3
15	57M8585	2	Elec. Connector Terminal	Cavity 2, 4
15	57M7400	2	Elec. Connector Seal	Cavity 1, 3
15	57M7399	2	Elec. Connector Seal	Cavity 2, 4

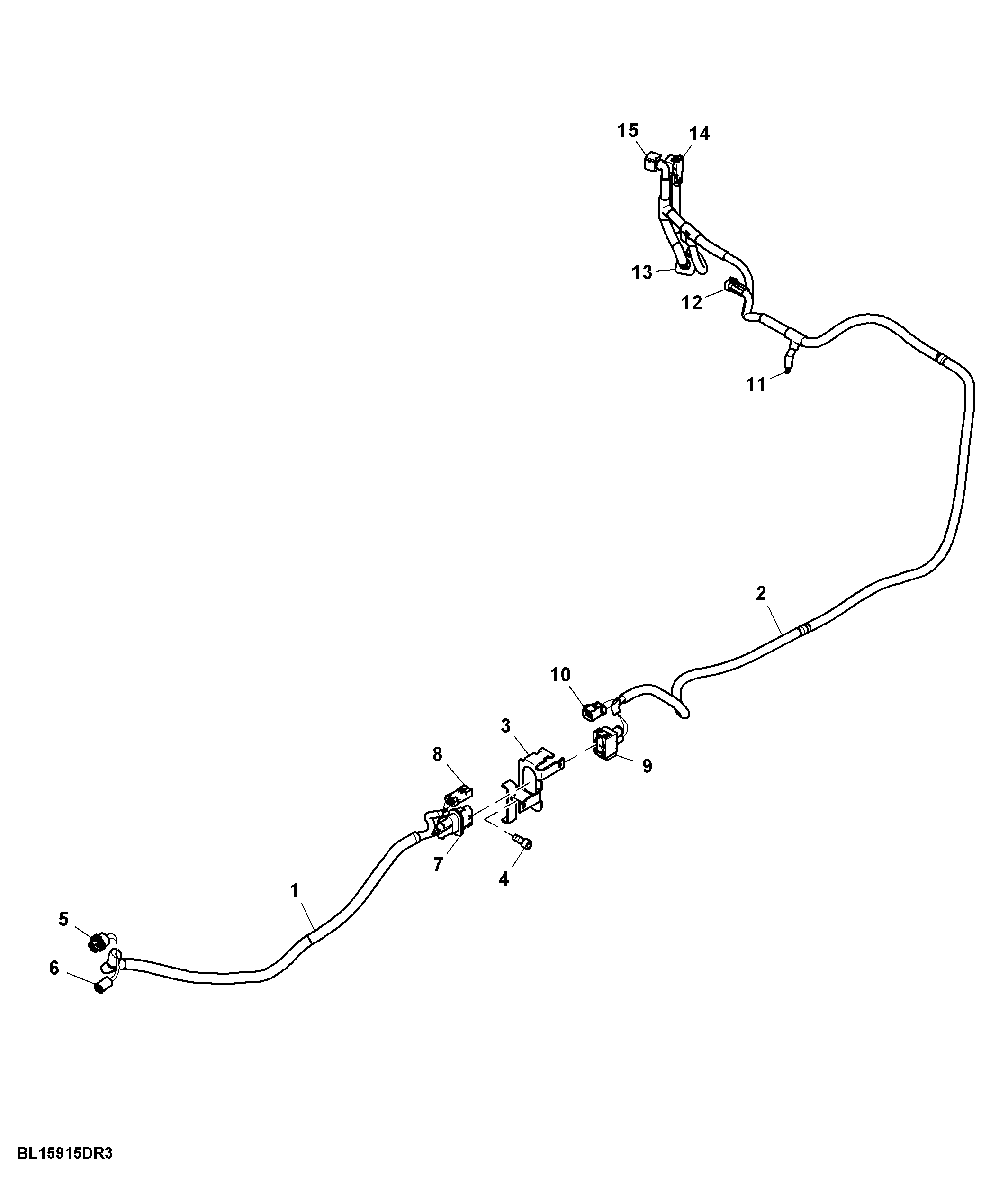

Wiring Harness, 60A ISOBUS Socket, Front Hitch, Attachment
