Wiring Harness / Switch Module, 2 Wire Can Bus, SDU

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

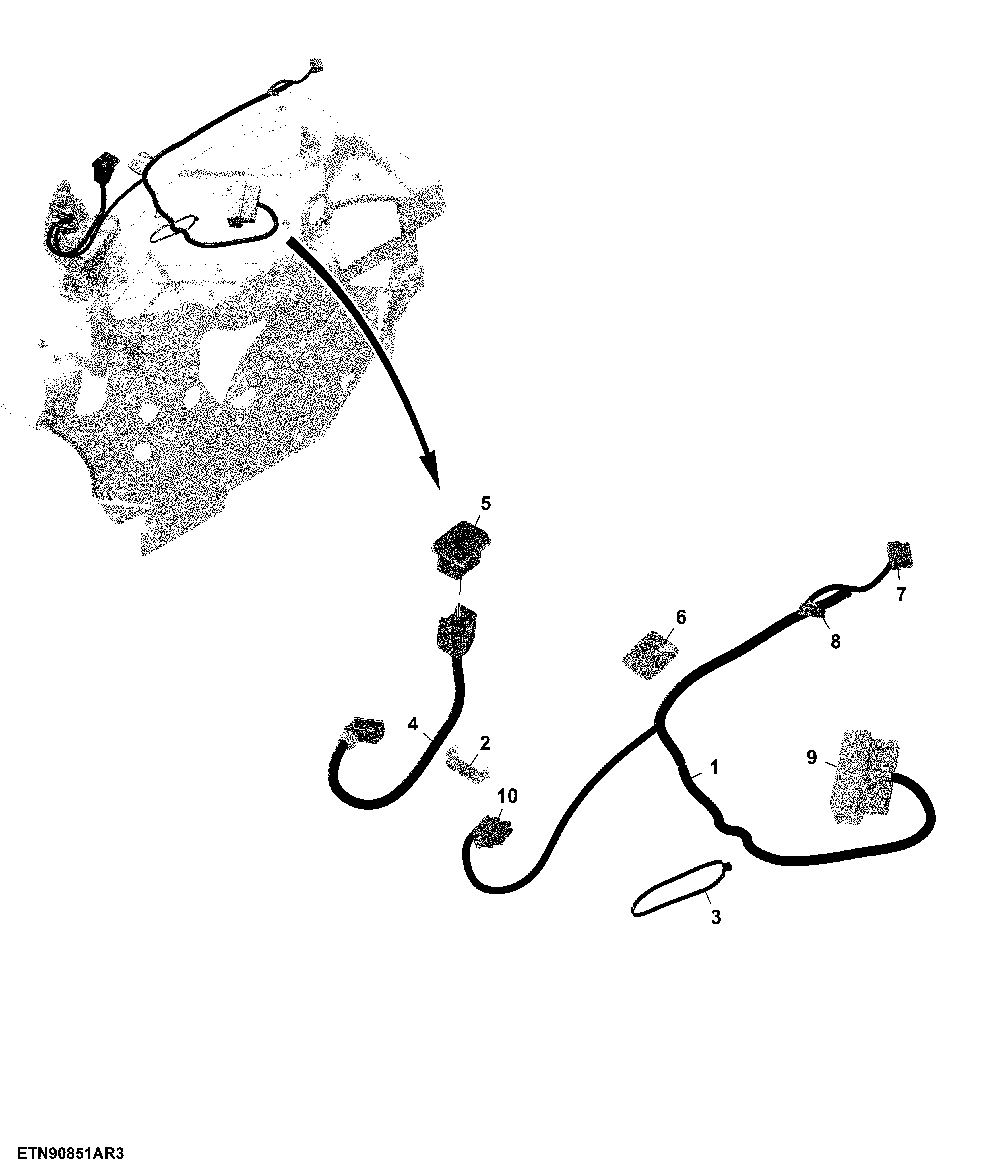

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL212144	1	Wiring Harness	-
2	L173487	1	Clamp	-
3	L41858	1	Tie Band	ORDER H77698
3	H77698	1	Tie Band	-
4	AL205685	1	Wiring Harness	-
5	AL205684	1	Electrical Connector Assy	-
6	L207646	1	Plug	-
7	57M7065	1	Elec. Connector Housing	Cigarette Lighter X128F-1
7	57M7430	2	Elec. Connector Terminal	Cavity A, B
8	57M8609	6	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 8
8	57M10640	1	Elec. Connector Housing	Hazard Switch X996F
9	57M8073	1	Elec. Connector Housing	Switch And SDU Harness X1014F
9	57M8084	1	Elec. Connector Accessory	-
9	57M7401	1	Elec. Connector Cavity Plug	-
9	57M9532	18	Elec. Connector Terminal	Cavity 1, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 23, 24
9	57M7400	18	Elec. Connector Seal	Cavity 1, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 23, 24
10	57M7470	1	Elec. Connector Housing	Secondary Display Unit X995F-1
10	57M7474	1	Elec. Connector Terminal	-
10	57M7437	5	Elec. Connector Terminal	Cavity 1, 2, 3, 9, 10
10	57M7550	3	Elec. Connector Terminal	Cavity 5, 6, 8

Wiring Harness / Switch Module, 2 Wire Can Bus, SDU
