Открытый узел

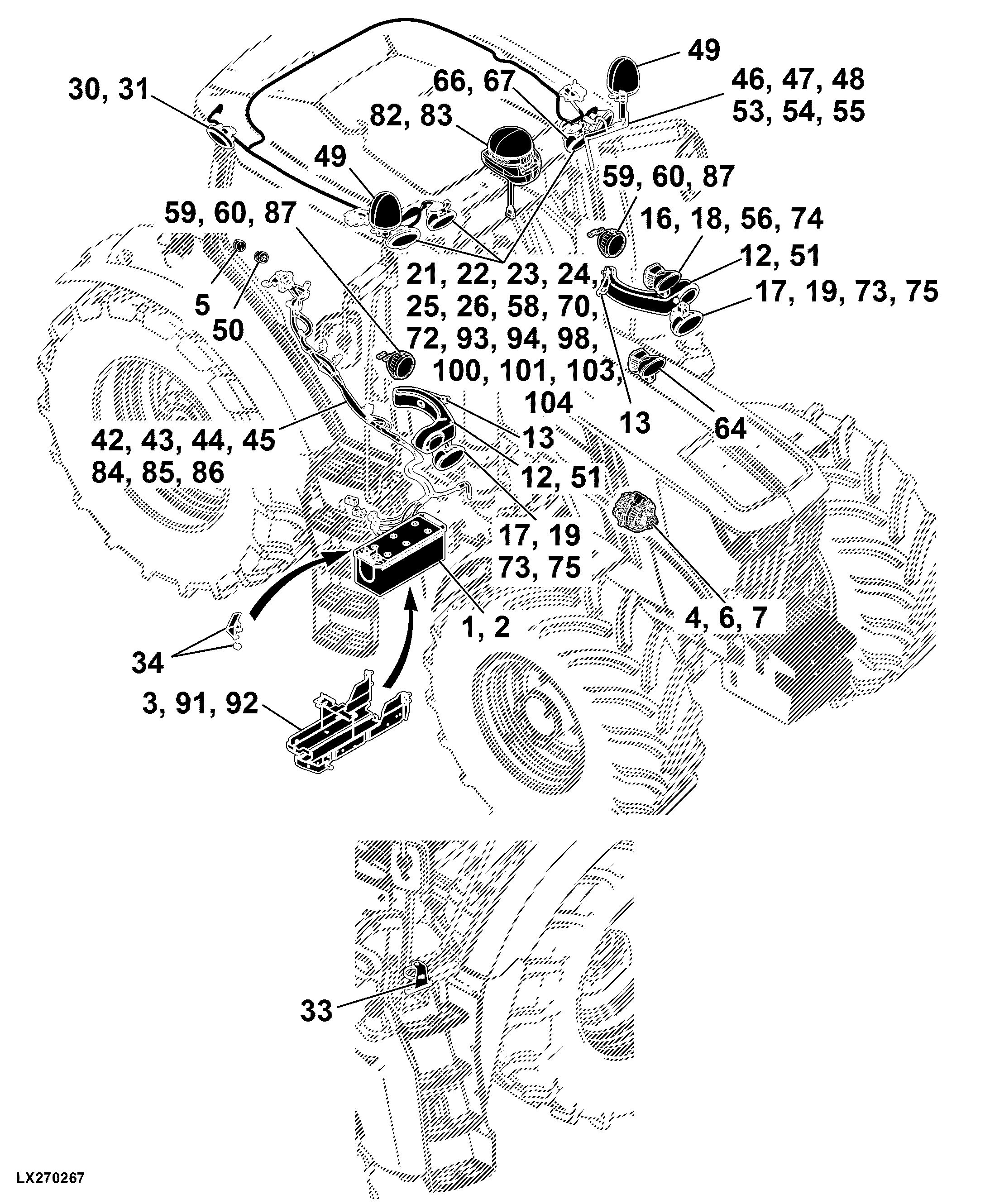

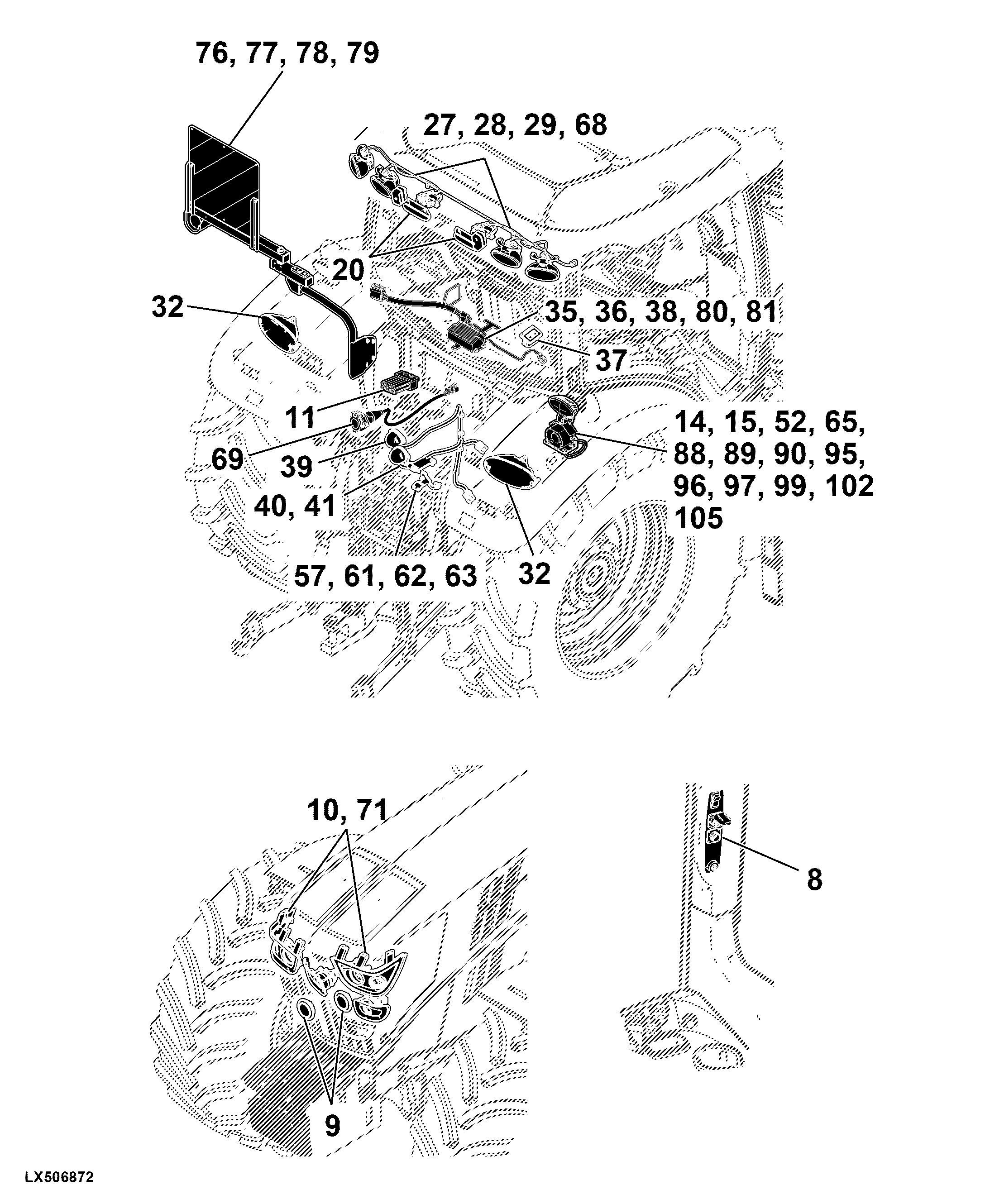

41 Electrical Components, Basic Equipment W/O Wiring Harnesses

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Push Buttons, Switch Module, W/O Beacon Light	-
-	-	1	Work Lights, 2 HB3, Cab Roof, Front	-
-	-	1	Work Lights, 2 HB3 / 4 LED / Wiring Harness, Cab Roof, Front	-
-	-	1	Work Lights, 2 H3, Panorama Cab Roof, Front	-
-	-	1	Work Light, Xenon, W/O Backup Alarm, Rear	-
-	-	1	Work Light, H3, Beacon Light Bracket, Attachment	-
-	-	1	Turn Signal Lights / Position Lights, Cab Front	-
-	-	1	Turn Signal Lights / Position Lights	-
-	-	1	Trailer Socket	-
-	-	1	Tail Lights	-
-	-	1	StarFire™ 3000, Position Receiver, W/ SF2 Activation	-
-	-	1	StarFire™ 3000, Position Receiver, W/ SF1 Activation	-
-	-	1	Splash Guard and Mounting Parts, Battery	-
-	-	1	Signal Socket, C-Post, Attachment	-
-	-	1	Work Lights, 2 HB3, Cab Roof, Rear	-
-	-	1	Push Buttons, Switch Module, W/ Beacon Light	-
-	-	1	Power Outlet Socket, 60A, Wiring Harness, Bracket, W/ Mechanical Center Link	-
-	-	1	Power Outlet Socket, 60A, Rear Wiring Harness, W/ Mechanical Center Link	-
-	-	1	Power Outlet Socket, 60A, Rear Wiring Harness, W/ Hydraulic Center Link	-
-	-	1	Power Outlet Socket, 60A, Rear Wiring Harness, Bracket, W/ Hydraulic Center Link	-
-	-	1	Power Outlet Socket / Converter, 230 V, W/O AutoTrac™	-
-	-	1	Power Outlet Socket / Converter, 230 V, W/ AutoTrac™	-
-	-	1	Plug, W/O Power Outlet Socket	-
-	-	1	Mounting Parts, Priority Block, W/O Center Link Holder	-
-	-	1	Mounting Parts, Connector Box Holder	-
-	-	1	Mounting Parts, Center Link Holder, W/ Air Trailer Brake	-
-	-	1	Mounting Parts, Center Link Holder	-
-	-	1	Work Lights, 6 HB3 / Wiring Harness, Cab Roof, Front	-
-	-	1	Work Lights, Xenon, W/ Backup Alarm	-
-	-	1	Work Lights, Xenon, Fender, Rear	-
-	-	1	Work Lights, Xenon, Cab Front, Hanging	-
-	-	1	Work Lights, LED, W/O Backup Alarm, W/O Extremity Lights, Rear	-
-	-	1	Work Lights, LED, W/ Backup Alarm, W/O Extremity Lights, Rear	-
-	-	1	Work Lights, LED, W/ Backup Alarm	-
-	-	1	Work Lights, LED, Fender, Rear, Attachment	-
-	-	1	Work Lights, HB3, W/ Backup Alarm, Rear	-
-	-	1	Work Lights, HB3, Fender, Rear	-
-	-	1	Work Lights, HB3, Cab Front, Upright	-
-	-	1	Work Lights, H3, W/ Backup Alarm	-
-	-	1	Work Lights, H3, Cab Front, Hanging	-
-	-	1	Mounting Parts, Beacon Light, RH	-
-	-	1	Work Lights, 4 LED / Wiring Harness, Cab Roof, Rear	-
-	-	1	Work Lights, 4 HB3, Cab Roof, Rear	-
-	-	1	Work Lights, 4 HB3, Cab Roof, Front	-
-	-	1	Work Lights, 4 H3, Panorama Cab Roof, Front	-
-	-	1	Work Lights, 2 Xenon / 4 H3 / Wiring Harness, Cab Roof, Front	-
-	-	1	Work Lights, 2 Xenon / 2 HB3 / Wiring Harness, Panorama Cab Roof, Front	-
-	-	1	Work Lights, 2 Xenon / 2 H3, Cab Roof, Rear	-
-	-	1	Work Lights, 2 Xenon / 2 H3 / Wiring Harness, Panorama Cab Roof, Front	-
-	-	1	Work Lights, 2 Xenon / 2 H3 / Wiring Harness, Cab Roof, Front	-
-	-	1	Work Lights, 2 LED, Cab Frame, Attachment	-
-	-	1	Work Lights, 2 LED / 2 H3, Cab Roof	-
-	-	1	Work Lights, 2 HB3, Cab Roof, Side	-
-	-	1	Attachment, Beacon Light, LH	-
-	-	1	Attachment, Work Lights, 2 Xenon / 2 H3, Cab Roof, Rear	-
-	-	1	Attachment, Work Lights, 2 Xenon / 2 H3 / Wiring Harness, Cab Roof, Front / Rear	-
-	-	1	Attachment, Work Lights, 2 LED, Cab Roof, Front, W/ Panorama	-
-	-	1	Attachment, Work Lights, 2 HB3 / Wiring Harness, Cab Roof	-
-	-	1	Attachment, Work Light, Xenon, Fender, Rear	-
-	-	1	Attachment, Work Light, HB3, W/ Backup Alarm	-
-	-	1	Attachment, Work Light, H3, Cab Front, Hanging	-
-	-	1	Attachment, Head Lights, H4, Cab Front, RH Traffic	-
-	-	1	Attachment, Head Lights, H4, Cab Front, LH Traffic	-
-	-	1	Attachment, Extra-Wide Vehicle Lighting, W/O Warning Sign, Extended Tread 2750 mm	-
-	-	1	Attachment, Extra-Wide Vehicle Lighting, W/ Warning Sign, Extended Tread 2750 mm-3000 mm	-
-	-	1	Attachment, Beacon Light, RH	-
-	-	1	Attachment, Work Lights, 2 Xenon, Panorama Cab Roof, Front	-
-	-	1	Attachment, Battery Splash Guard	-
-	-	1	Attachment, Adapter Standard Connector	-
-	-	1	Attachment, Adapter Cigarette Lighter Outlet	-
-	-	1	Attachment, Adapter 3 Pin	-
-	-	1	Attachment, 3-Pin Power Socket, C-Post, Wiring Harness	-
-	-	1	Alternator, W/ Decoupler, 14 V / 150 A	-
-	-	1	Alternator, 14 V / 200 A	-
-	-	1	Alternator, 14 V / 120 A	-
-	-	1	7-Pin Electric Socket / Center Link	-
-	-	1	7-Pin Electric Socket	-
-	-	1	7 - Pin Electric Socket, W/ Hydraulic Center Link	-
-	-	1	3-Terminal Power Outlet Socket / Wiring Harness, Attachment	-
-	-	1	Head Lights, LED, Cab Front, W/ Short Extremity Arms	-
-	-	1	Mounting Parts, Beacon Light, LH, RH	-
-	-	1	Mounting Parts, Beacon Light, LH	-
-	-	1	Mounting Parts, Battery 154 Ah / 174 Ah	-
-	-	1	Mounting Parts, Attachment, Head Lights, H4, Cab Front, RH Traffic	-
-	-	1	Light, Foot Step, RH	-
-	-	1	Light, Foot Step, LH	-
-	-	1	LED Work Lights, Oval, Roof, Attachment	-
-	-	1	Lamp, Licence Plate	-
-	-	1	Horn	-
-	-	1	Headlights	-
-	-	1	Headlights	-
-	-	1	Head Lights, Xenon, Cab Front	-
-	-	1	3-Terminal Power Outlet Socket / Wiring Harness	-
-	-	1	Extra-Wide Vehicle Lighting, W/O Warning Sign, Extended Tread 2750 mm	-
-	-	1	Extra-Wide Vehicle Lighting, W/ Warning Sign, Extended Tread 2750 mm-3000 mm	-
-	-	1	Cover, W/O Work Lights, Cab Roof, Side	-
-	-	1	Connectors, W/O Electrical SCV, W/O Electrical ICV	-
-	-	1	Brackets, Front, Turn Signal Lights / Work Lights	-
-	-	1	Beacon Lights	-
-	-	1	Battery, 174 Ah	-
-	-	1	Battery, 154 Ah	-
-	-	1	Backup Alarm, W/ Rear Working Light, W/O Extra-Wide Vehicle Warning Sign	-
-	-	1	Attachment, Worklight, H3, Cab Front, Upright	-
-	-	1	Attachment, Work Lights, Xenon, Cab Front, Upright	-
-	-	1	Attachment, Work Lights, Xenon, Cab Front, Hanging	-

41 Electrical Components, Basic Equipment W/O Wiring Harnesses
