Открытый узел

Wiring Harness, Switch, Identification Lights

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL229525	1	Bracket	-
2	57M9776	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W151 and W152, X276M
2	57M9837	1	Elec. Connector Accessory	-
2	57M9940	1	Elec. Connector Accessory	-
2	57M10603	2	Elec. Connector Terminal	Cavity 1, 2
3	AL213494	3	Lamp	-
4	L39134	9	Rivet	-
5	AL213874	1	Wiring Harness	-
6	14M7397	2	Lock Nut	M6
7	AT409841	1	Tie Band	-
8	AL213448	1	Toggle/Rocker Switch	Identification Lights Switch
9	57M7689	1	Fuse	10 A
10	SU49094	2	Plug	-
11	AL230599	1	Wiring Harness	-
12	L222108	4	Tie Band	-
13	57M9214	2	Elec. Connector Seal	Cavity D, E
13	57M7291	1	Electrical Connector Assy	-
13	L210722	1	Clip	-
13	57M7259	1	Elec. Connector Seal	Cavity C
13	R104919	5	Elec. Connector Terminal	Cavity A, B, D, E, F
13	57M7263	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W221 or W222 and W152, X181M-1
13	57M9215	3	Elec. Connector Seal	Cavity A, B, F
14	57M7291	1	Electrical Connector Assy	-
14	57M7259	1	Elec. Connector Seal	Cavity C
14	57M9214	2	Elec. Connector Seal	Cavity D, E
14	57M9215	3	Elec. Connector Seal	Cavity A, B, F
14	57M7494	2	Elec. Connector Terminal	Cavity D, E
14	57M10770	3	Elec. Connector Terminal	Cavity A, B, F
14	57M7260	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W152 and W821, X181F-1
15	57M7255	1	Elec. Connector Housing	Switch for Trailering Lights, XS077F
15	57M10770	3	Elec. Connector Terminal	Cavity A, B, C
15	57M9215	3	Elec. Connector Seal	Cavity A, B, C
15	57M7290	1	Elec. Connector Accessory	-
16	57M9772	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W151 and W152, X276F
16	57M10631	2	Elec. Connector Terminal	Cavity 1, 2
16	57M10155	1	Elec. Connector Accessory	-

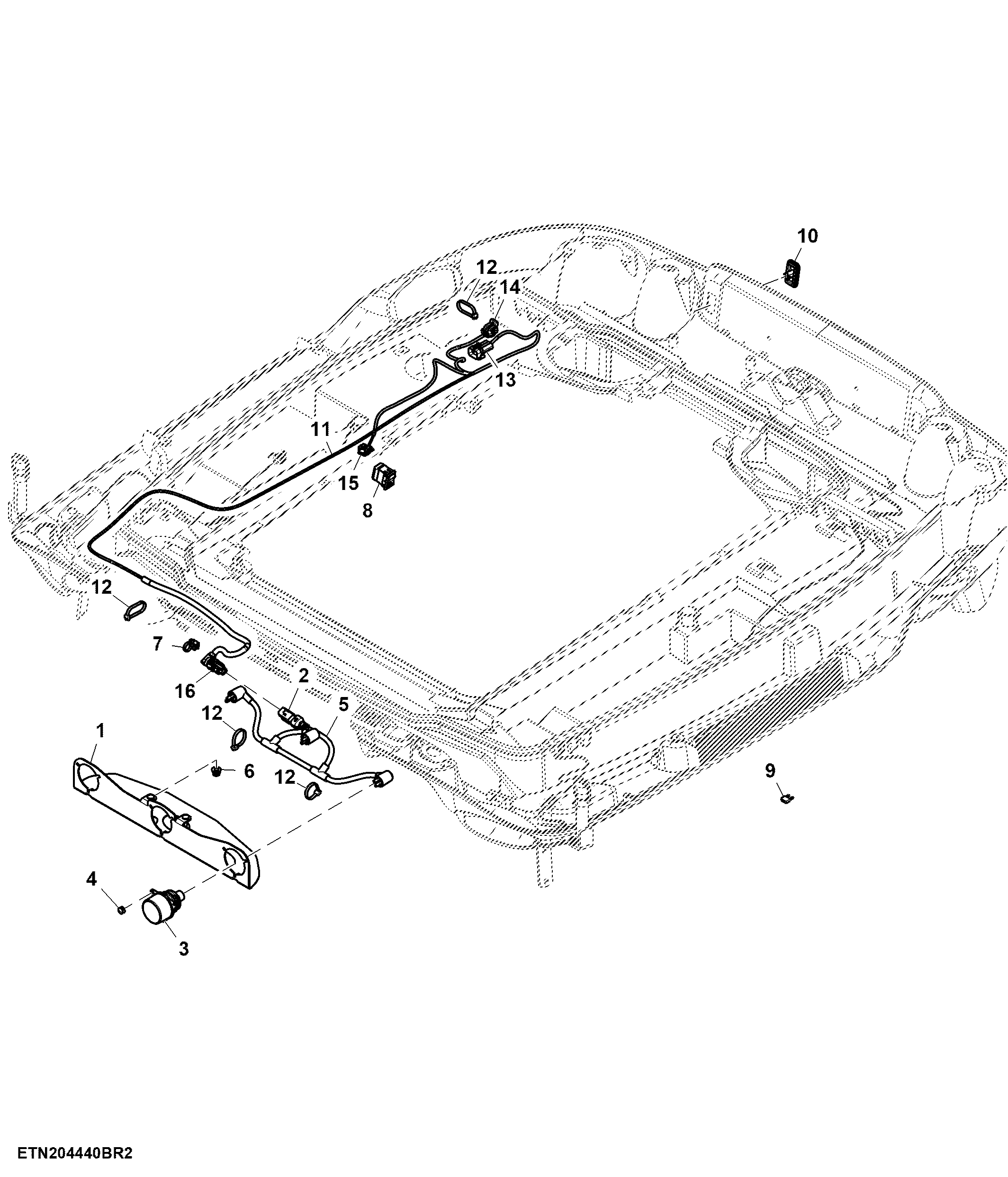

Wiring Harness, Switch, Identification Lights
