Открытый узел

Wiring Harness, RH Console, CommandQuad™,W/ Armrest

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L173487	2	Clamp	-
2	RE258807	1	Tie Band	-
3	57M9229	4	Clip	-
4	L222108	1	Tie Band	-
5	L225571	1	Bracket	SUB FOR L224881
6	AL232675	1	Wiring Harness	SUB FOR AL229112
7	57M7065	1	Elec. Connector Housing	Cigarette Lighter, XE005F
7	57M7430	2	Elec. Connector Terminal	Cavity 1, 2
8	57M10640	1	Elec. Connector Housing	Connector of Cab Switch Module Control Unit, XS175F
8	57M8609	6	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 7, 8
9	57M9214	4	Elec. Connector Seal	Cavity A, B, E, F
9	57M7291	1	Electrical Connector Assy	-
9	57M7259	2	Elec. Connector Seal	Cavity C, D
9	57M7252	4	Elec. Connector Terminal	Cavity A, B, E, F
9	57M7263	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W20X and W23X, X202M-3
10	57M13867	1	Elec. Connector Housing	USB Charging Socket (Side Panel), XA028F
11	57M7257	1	Elec. Connector Housing	Rear PTO Switch, XS021M
11	57M7252	3	Elec. Connector Terminal	Cavity A, B, C
11	57M9215	3	Elec. Connector Seal	Cavity A, B, C
11	57M9702	1	Elec. Connector Accessory	-
12	57M11471	1	Elec. Connector Housing	Reconfigurable Control Module for E-SCV III-IV (Side Console), XS051F
13	57M7290	1	Elec. Connector Accessory	-
13	57M9215	3	Elec. Connector Seal	Cavity A, B, C
13	57M7257	1	Elec. Connector Housing	Front PTO Switch, XS006M
13	57M7252	3	Elec. Connector Terminal	Cavity A, B, C
14	57M11471	1	Elec. Connector Housing	Reconfigurable Control Module for E-SCV I-II (Side Console), XS050F
15	57M7953	1	Electrical Connector Assy	Hand Throttle Potentiometer, XB096F-3
15	57M11775	6	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6
15	57M7955	6	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6
16	57M7256	1	Elec. Connector Housing	Start Gear Switch, XS029M
16	57M7252	2	Elec. Connector Terminal	Cavity A, B
16	57M9215	2	Elec. Connector Seal	Cavity A, B
16	57M7289	1	Elec.Connect Locking Device	-
16	L210722	1	Clip	-
17	57M8070	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W20X and W23X, X202M-2
17	57M8084	1	Elec. Connector Accessory	-
17	57M8076	1	Elec. Connector Terminal	-
17	57M7399	2	Elec. Connector Seal	Cavity 23, 24
17	57M7400	18	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 11, 12, 13, 16, 17, 18, 19, 20, 21, 22
17	57M9042	18	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 11, 12, 13, 16, 17, 18, 19, 20, 21, 22
18	57M7263	1	Elec. Connector Housing	Switch for Engine Set Speed, XS085M
18	57M7252	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
18	57M9214	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
18	57M7291	1	Electrical Connector Assy	-
18	L223370	1	Clip	-
19	57M10362	6	Clamp	-

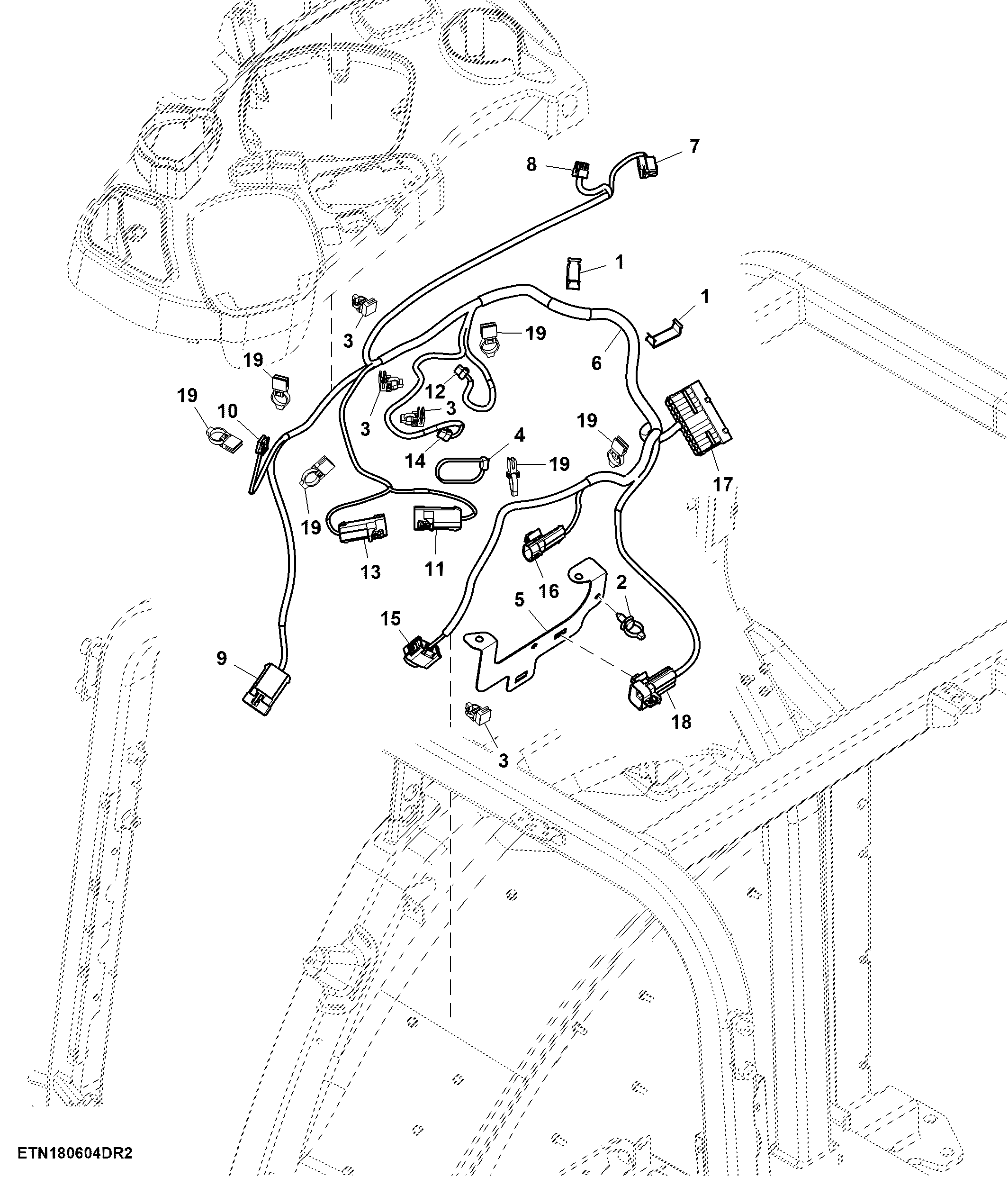

Wiring Harness, RH Console, CommandQuad™,W/ Armrest
