Открытый узел

Wiring Harness, RH Console, AutoPowr™ / IVT™, W/ CommandARM™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL231177	1	Wiring Harness	-
2	L222108	1	Tie Band	-
3	57M8073	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W20X and W23X, X202F-1
3	57M8084	1	Elec. Connector Accessory	-
3	57M9532	13	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 11, 12, 13, 16, 17, 20, 21, 22
3	57M8941	2	Elec. Connector Terminal	Cavity 23, 24
3	57M7400	13	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 11, 12, 13, 16, 17, 20, 21, 22
3	57M7399	2	Elec. Connector Seal	Cavity 23, 24
4	57M13867	1	Elec. Connector Housing	USB Charging Socket (Side Panel), XA028F
5	57M11471	1	Elec. Connector Housing	Reconfigurable Control Module for E-SCV III-IV (Side Console), XS051F
6	57M7065	1	Elec. Connector Housing	Cigarette Lighter, XE005F
6	57M7430	2	Elec. Connector Terminal	Cavity 1, 2
7	57M10640	1	Elec. Connector Housing	Connector of Cab Switch Module Control Unit, XS175F
7	57M8609	6	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 7, 8
8	57M11471	1	Elec. Connector Housing	Reconfigurable Control Module for E-SCV I-II (Side Console), XS050F
9	57M7257	1	Elec. Connector Housing	Front PTO Switch, XS006M
9	57M14238	1	Elec. Connector Accessory	-
9	57M7290	1	Elec. Connector Accessory	-
9	57M7252	3	Elec. Connector Terminal	Cavity A, B, C
9	57M9215	3	Elec. Connector Seal	Cavity A, B, C
10	57M7257	1	Elec. Connector Housing	Rear PTO Switch, XS021M
10	57M14238	1	Elec. Connector Accessory	-
10	57M9702	1	Elec. Connector Accessory	-
10	57M7252	3	Elec. Connector Terminal	Cavity A, B, C
10	57M9215	3	Elec. Connector Seal	Cavity A, B, C
11	57M10362	1	Clamp	-
12	AH225365	1	Clip	-
13	R44302	1	Tie Band	-
14	L206645	2	Tie Band	-

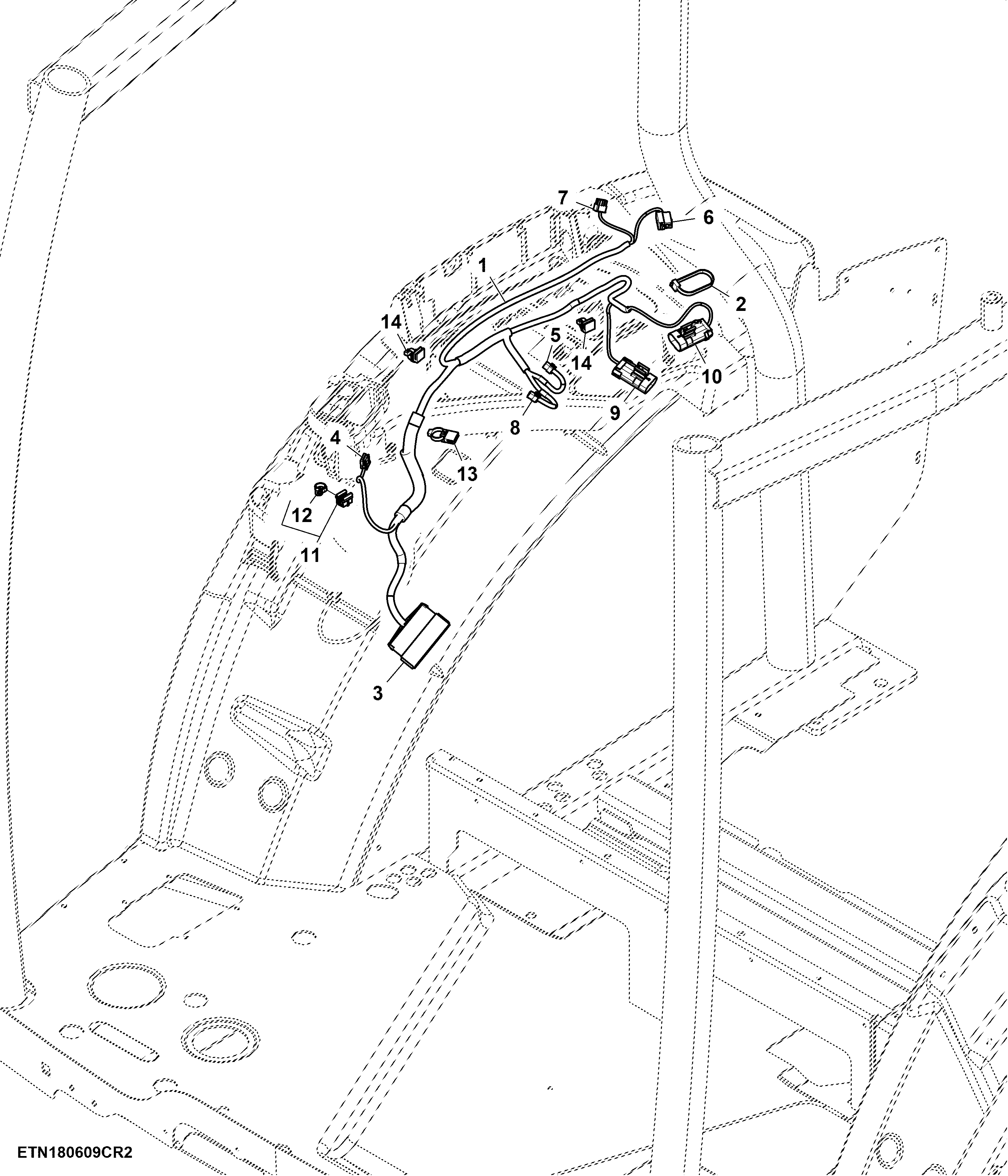

Wiring Harness, RH Console, AutoPowr™ / IVT™, W/ CommandARM™

Нет текстового описания
