Открытый узел

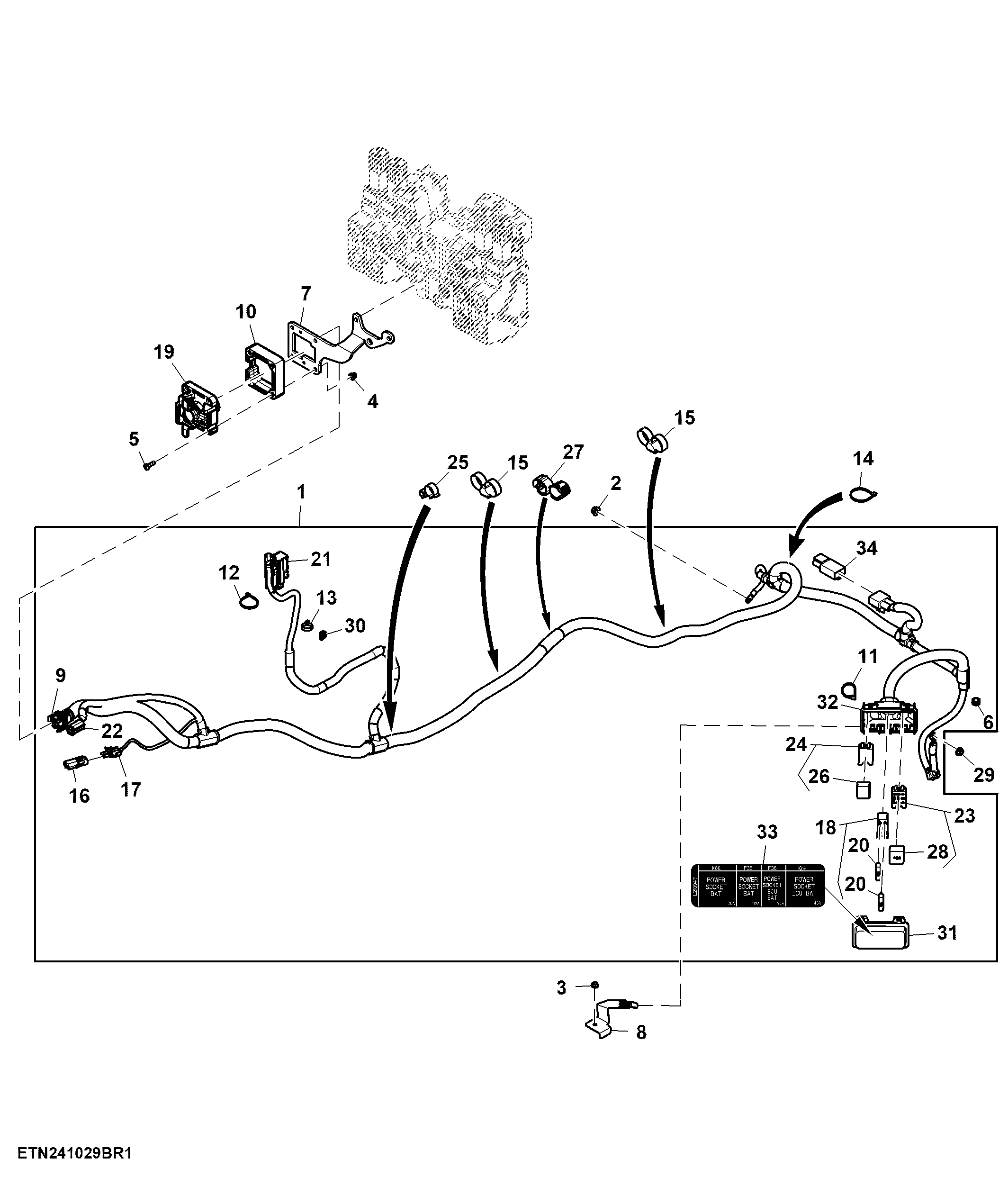

Wiring Harness, Power Outlet Socket, 60 A, Rear

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL230594	1	Wiring Harness	-
2	14M7298	1	Flange Nut	M8
3	14M7303	1	Flange Nut	M6
4	14M7397	4	Lock Nut	M6
5	19M9343	4	Screw	M6 X 55
6	57M10088	1	Elec. Connector Accessory	-
7	L215125	1	Bracket	-
8	L224245	1	Retainer	-
9	57M13652	1	Elec. Connector Housing	XA090F-1 , Rear Implemet Socket
9	57M7614	2	Elec. Connector Terminal	Cavity 1, 3
9	57M8593	2	Elec. Connector Terminal	Cavity 2, 4
10	L214190	1	Adapter	-
11	57M12231	1	Elec. Connector Accessory	-
12	57M12232	1	Elec. Connector Accessory	-
13	57M12234	2	Elec. Connector Accessory	-
14	57M13596	1	Elec. Connector Accessory	-
15	R213663	2	Clamp	-
16	R78053	1	Electrical Connector Assy	-
17	RE12363	1	Electrical Connector Assy	X574F, Implement Switch
17	R78060	2	Elec. Connector Terminal	Cavity A, B
17	57M9219	2	Elec. Connector Seal	Cavity A, B
17	R78064	2	Elec. Connector Cavity Plug	-
18	57M9607	1	Elec. Connector Accessory	PSB_FUSE, Power Socket Fuse Box
18	57M8966	2	Elec. Connector Terminal	Cavity 1, 3
18	57M8877	2	Elec. Connector Terminal	Cavity 2, 4
19	RE595191	1	Electrical Connector Assy	-
20	57M7623	2	Fuse	60 A
21	57M8196	1	Elec. Connector Housing	X404F, Inline Greenstar C Post
21	57M8097	1	Retainer	-
21	57M7403	26	Elec. Connector Cavity Plug	Cavity 9, 10, 11, 14, 15, 18, 19, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42
21	57M7401	6	Elec. Connector Cavity Plug	Cavity 3, 4, 5, 6, 7, 8
21	57M8241	4	Elec. Connector Terminal	Cavity 20, 21, 22, 23
21	57M7402	4	Elec. Connector Cable Seal	Cavity 12, 13, 16, 17
21	57M7398	8	Elec. Connector Terminal	Cavity 12, 13, 16, 17, 20, 21, 22, 23
21	57M8107	2	Elec. Connector Cavity Plug	Cavity 1, 2
22	57M9033	1	Elec. Connector Housing	XA090F-2, 60A Socket Rear
22	57M8165	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
22	57M7618	1	Electrical Connector Assy	-
23	57M9600	1	Elec. Connector Housing	K069, 20/40A Greenstar
23	57M9681	2	Elec. Connector Terminal	Cavity 2, 8
23	57M9679	2	Elec. Connector Terminal	Cavity 4, 6
24	57M9679	2	Elec. Connector Terminal	Cavity 4, 6
24	57M7724	1	Electrical Connector Assy	-
24	57M7071	2	Elec. Connector Terminal	Cavity 2, 8
24	57M9604	1	Elec. Connector Housing	K068, 70A Greenstar
25	Z102278	1	Clamp	-
26	AL207376	1	Relay	70 A
27	AL224003	1	Clamp	-
28	AL77324	1	Relay	40 A
29	14M7375	1	Flange Nut	M5
30	L205558	2	Clip	-
31	L207653	1	Cover	-
32	L207654	1	Cover	-
33	L210947	1	Label	PSB Box Label
34	57M14746	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W401 and W431, X406M

Wiring Harness, Power Outlet Socket, 60 A, Rear

Нет текстового описания
