Открытый узел

Wiring Harness, Hydraulic Quick Connect Coupler, W/ Loader Working Lights, W/ Loader Unlatch Function

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE258807	1	Tie Band	-
2	R241878	3	Clip	-
3	AL231615	1	Wiring Harness	-
4	57M9817	1	Elec. Connector Housing	Connection Point between Harnesses W911 and W912, X445F
4	57M10631	3	Elec. Connector Terminal	Cavity 1, 2, 3
4	57M10336	1	Elec. Connector Cavity Plug	Cavity 4
4	57M11335	1	Elec. Connector Accessory	-
5	57M9215	2	Elec. Connector Seal	Cavity A, B
5	57M7985	1	Electrical Connector Assy	-
5	57M7259	2	Elec. Connector Seal	-
5	57M7289	2	Elec.Connect Locking Device	-
5	R104846	2	Elec. Connector Terminal	Cavity A, B
5	57M7328	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W912 and W731 or W901, X1278F
6	57M7260	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W912 and W731 or W901, X1268F
6	R104846	4	Elec. Connector Terminal	Cavity A, B, D, E
6	57M9215	4	Elec. Connector Seal	Cavity A, B, D, E
6	57M7259	2	Elec. Connector Seal	Cavity C, F
6	57M7291	1	Electrical Connector Assy	-

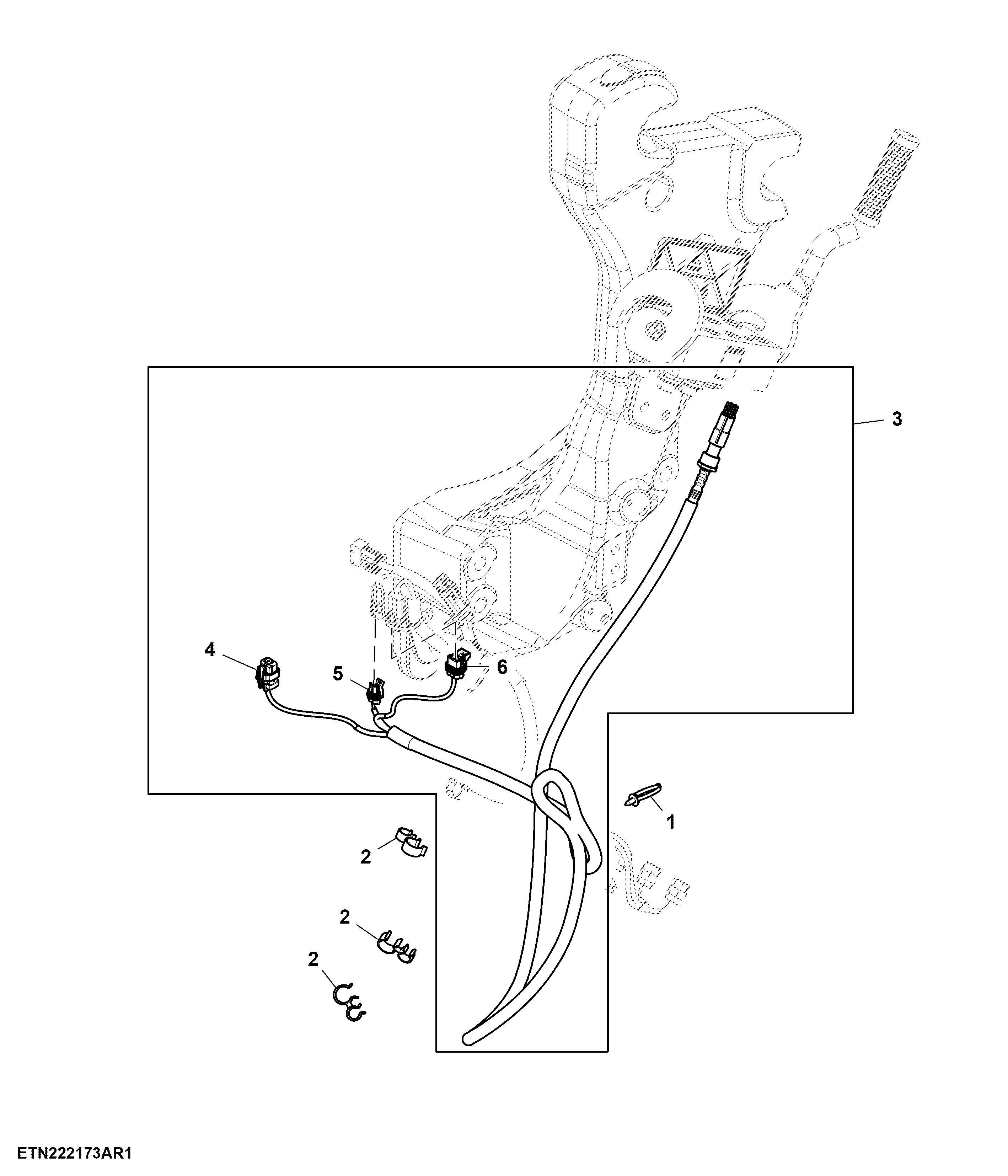

Wiring Harness, Hydraulic Quick Connect Coupler, W/ Loader Working Lights, W/ Loader Unlatch Function

Нет текстового описания
