Большое обновление пильных узлов

Смотреть

Тип техники

Бренд

Машина

Большое обновление пильных узлов

Смотреть

Открытый узел

Wiring Harness, Greenstar™, C-Post

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL229364	1	Wiring Harness	-
2	57M10614	1	Elec. Connector Housing	Connector for TEC Control Unit, XA004F
2	57M13590	1	Elec. Connector Accessory	-
2	57M10613	1	Elec. Connector Housing	-
2	57M10334	5	Elec. Connector Cavity Plug	Cavity L3, L4, M2, M3, M4
2	57M10331	3	Elec. Connector Terminal	Cavity L1, L2, M1
2	57M10514	8	Elec. Connector Terminal	Cavity A1, A2, B1, C1, D4, J3, J4, K3
2	57M10333	32	Elec. Connector Cavity Plug	Cavity A3, A4, B2, B3, B4, C2, C3, C4, D1, D2, D3, E1, E2, E3, E4, F1, F2, F3, F4, G1, G2, G3, G4, H1, H2, H3, H4, J1, J2, K1, K2, K4
3	57M7263	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W20X and W411, X535M-2
3	57M7252	5	Elec. Connector Terminal	Cavity A, B, C, E, F
3	57M9215	3	Elec. Connector Seal	Cavity A, B, C
3	57M9214	2	Elec. Connector Seal	Cavity E, F
3	57M7259	1	Elec. Connector Seal	Cavity D
3	57M7291	1	Electrical Connector Assy	-
3	57M9555	1	Clip	-
4	57M11342	1	Elec. Connector Terminal	Cavity K
4	57M9555	1	Clip	-
4	57M7281	1	Elec.Connect Locking Device	-
4	57M7258	1	Elec. Connector Seal	Cavity K
4	57M9215	4	Elec. Connector Seal	Cavity E, F, H, J
4	57M9214	5	Elec. Connector Seal	Cavity A, B, C, D, G
4	57M7252	4	Elec. Connector Terminal	Cavity E, F, H, J
4	57M7495	5	Elec. Connector Terminal	Cavity A, B, C, D, G
4	57M7265	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W20X and W411, X535M
5	57M9033	1	Elec. Connector Housing	Adapter Connector for Implement CAN Bus, X591F
5	R78065	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
5	57M7618	1	Electrical Connector Assy	-
6	AZ50832	1	Electrical Connector Assy	Adapter Connector for Implement CAN Bus, X591M
6	57M8164	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
6	57M7619	1	Elec.Connect Locking Device	-
7	57M7290	1	Elec. Connector Accessory	-
7	57M9215	3	Elec. Connector Seal	Cavity A, B, C
7	57M7255	1	Elec. Connector Housing	Connector for Power Supply to External Display, X689F
7	57M10770	3	Elec. Connector Terminal	Cavity A, B, C
8	R76873	1	Elec. Connector Terminal	Implement CAN Bus Socket in Cab, X888M
8	57M9410	3	Elec. Connector Terminal	Cavity 1, 7, 9
8	57M9409	6	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 8
9	57M9231	1	Elec. Connector Housing	Socket for GreenStar™ Display (C-Post), X978F
9	57M9230	7	Elec. Connector Terminal	Cavity L, M, N, P, R, U, V
9	57M9232	1	Elec. Connector Seal	-
10	57M7262	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W411 and W412, X1002F
10	57M7494	5	Elec. Connector Terminal	Cavity A, B, C, D, G
10	57M10770	5	Elec. Connector Terminal	Cavity E, F, H, J, K
10	57M9214	5	Elec. Connector Seal	Cavity A, B, C, D, G
10	57M9215	5	Elec. Connector Seal	Cavity E, F, H, J, K
10	57M7281	1	Elec.Connect Locking Device	-
11	57M8165	4	Elec. Connector Terminal	Cavity 2, 3, 4, 5
11	57M7677	1	Elec. Connector Terminal	-
11	57M7546	2	Elec. Connector Terminal	Cavity 1, 6
11	57M7630	1	Electrical Connector Assy	Relay for Implement CAN Bus Socket in Cab, XK060F
12	57M8198	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W401 and W411, X404M
12	57M9041	8	Elec. Connector Terminal	Cavity 12, 13, 16, 17, 20, 21, 22, 23
12	57M7402	5	Elec. Connector Cable Seal	Cavity 12, 13, 16, 17, 21
12	57M8241	3	Elec. Connector Terminal	Cavity 20, 22, 23
12	57M8096	1	Retainer	-
12	57M8098	1	Elec. Connector Terminal	-
12	57M13590	1	Elec. Connector Accessory	-
13	RE339329	1	Relay	ISO BUS Relay
14	L222109	2	Tie Band	-
15	L112549	2	Isolator	-
16	-	1	Part 61	CTL = 40 mm, MF L58448
17	L218766	1	Bracket	-
18	37M7435	4	Screw	-
19	L222108	1	Tie Band	-

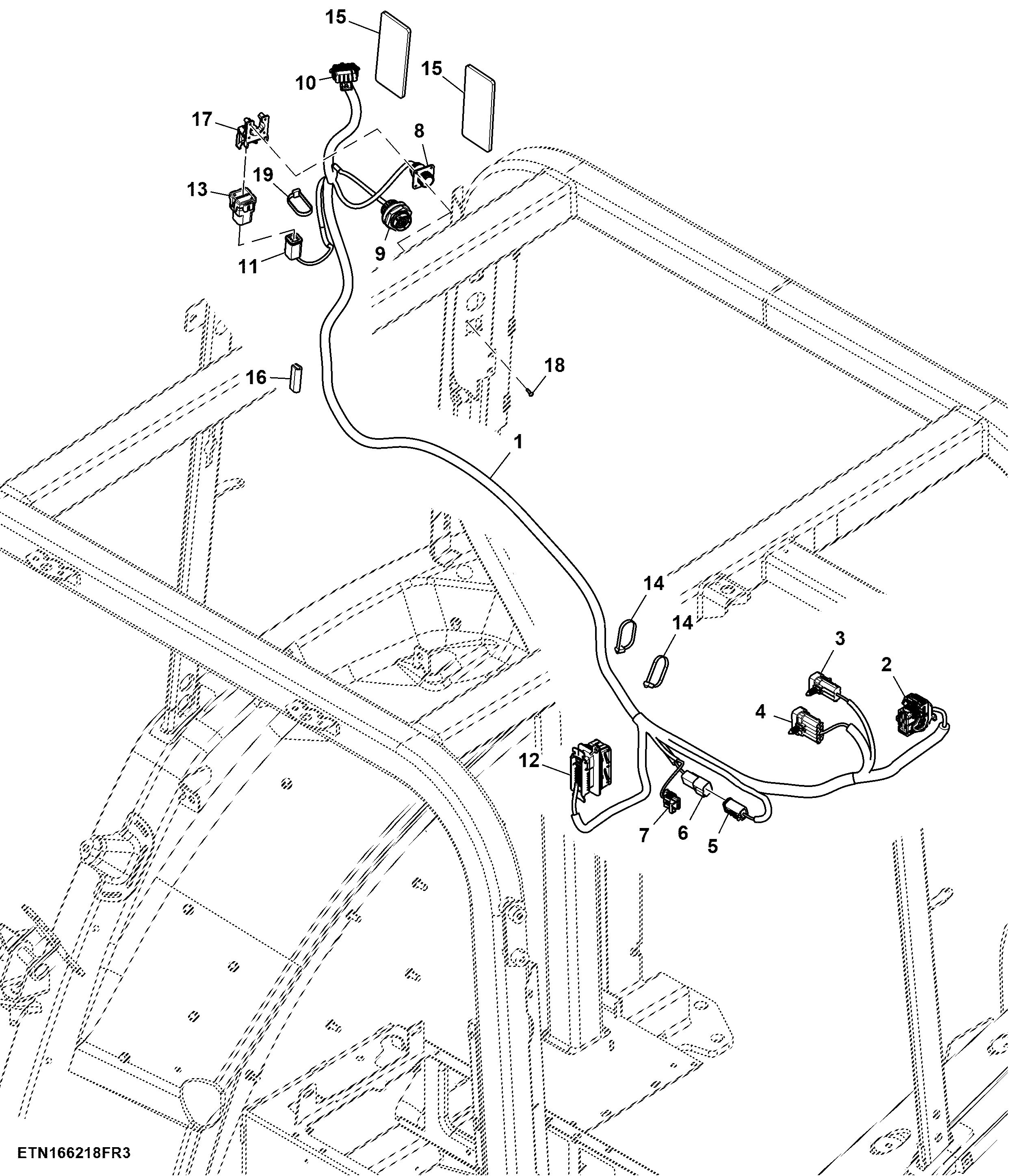

Wiring Harness, Greenstar™, C-Post

Нет текстового описания
