Wiring Harness, GreenStar™ / AutoTrac™ / Steering Control Unit, Attachment (4/5)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL230594	1	Wiring Harness	-
2	57M13652	1	Elec. Connector Housing	Implement Socket Rear, XA090F-1
2	57M8593	2	Elec. Connector Terminal	Cavity 2, 4
2	57M7614	2	Elec. Connector Terminal	Cavity 1, 3
3	57M9607	1	Elec. Connector Accessory	Power Socket Fuse Box, PSB_FUSE
3	57M8966	2	Elec. Connector Terminal	Cavity 1, 3
3	57M8877	2	Elec. Connector Terminal	Cavity 2, 4
3	57M7623	2	Fuse	60A
4	RE12363	1	Electrical Connector Assy	Connector for Implement Switch, X574F
4	R78060	2	Elec. Connector Terminal	Cavity A, B
4	57M9219	2	Elec. Connector Seal	Cavity A, B
4	R78064	2	Elec. Connector Cavity Plug	-
4	R78053	1	Electrical Connector Assy	-
5	L207654	1	Cover	-
6	57M12232	1	Elec. Connector Accessory	-
6	57M8097	1	Retainer	-
6	57M7403	26	Elec. Connector Cavity Plug	Cavity 9, 10, 11, 14, 15, 18, 19, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42
6	57M7401	6	Elec. Connector Cavity Plug	Cavity 3, 4, 5, 6, 7, 8
6	57M8107	2	Elec. Connector Cavity Plug	Cavity 1, 2
6	57M7402	4	Elec. Connector Cable Seal	Cavity 12, 13, 16, 17
6	57M7398	8	Elec. Connector Terminal	Cavity 12, 13, 16, 17, 20, 21, 22, 23
6	57M8196	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W401 and W411, X404F
6	57M8241	4	Elec. Connector Terminal	Cavity 20, 21, 22, 23
7	57M9033	1	Elec. Connector Housing	Implement Socket Rear, XA090F-2
7	57M8165	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
7	57M7618	1	Electrical Connector Assy	-
8	57M9681	2	Elec. Connector Terminal	Cavity 2, 8
8	AL77324	1	Relay	20/40A 12V
8	57M9679	2	Elec. Connector Terminal	Cavity 4, 6
8	57M9600	1	Elec. Connector Housing	Relay for Power Supply to Implements, K069
9	57M9604	1	Elec. Connector Housing	Relay for Power Supply to Implements, K068
9	57M7071	2	Elec. Connector Terminal	Cavity 2, 8
9	57M9679	2	Elec. Connector Terminal	Cavity 4, 6
9	57M7724	1	Electrical Connector Assy	-
9	AL207376	1	Relay	70A 12V
10	L207653	1	Cover	-

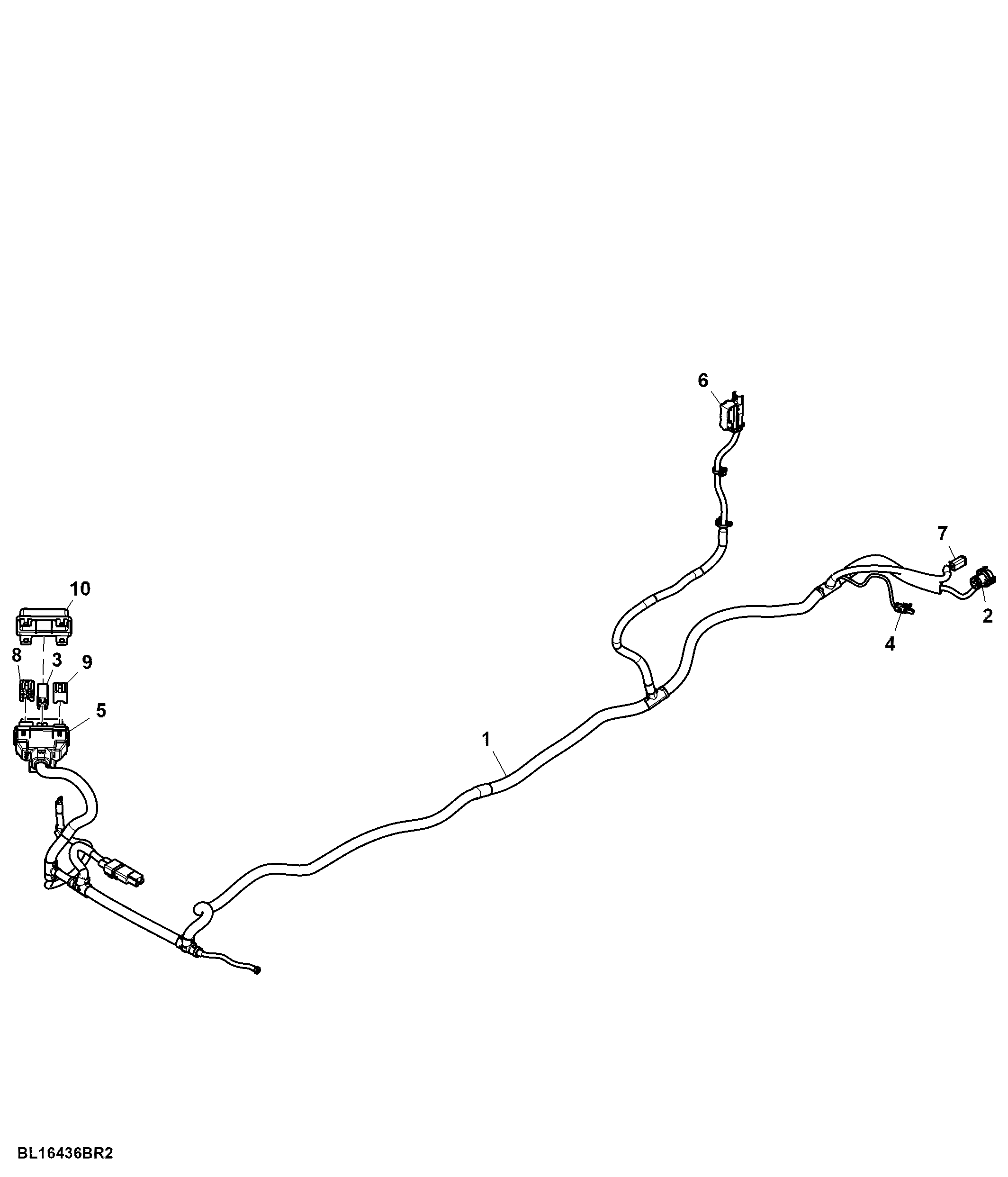

Wiring Harness, GreenStar™ / AutoTrac™ / Steering Control Unit, Attachment (4/5)
