Открытый узел

Wiring Harness, Electric Socket, 3-Pin, Front Hitch, W/ ISOBUS

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L79648	2	Push Nut	-
2	14M7298	5	Flange Nut	M8
3	14M7375	1	Flange Nut	M5
4	L216156	1	Cover	-
5	AL232349	1	Electrical Connector Assy	-
6	AL156697	1	Relay	-
7	L174118	2	Screw	-
8	R213663	1	Clamp	-
9	57M12234	9	Elec. Connector Accessory	-
10	57M13869	1	Elec. Connector Housing	-
11	57M8093	1	Fuse Holder	-
12	24M7146	2	Washer	4.300 X 12 X 1 mm
13	L224358	1	Bracket	-
14	AL230679	1	Wiring Harness	-
15	AL230678	1	Wiring Harness	-
16	14M7303	1	Flange Nut	M6
17	14M7139	2	Nut	M4
18	AH90990	1	Clip	-
19	57M9033	1	Elec. Connector Housing	Front Implement Socket, XA091F-2
19	57M8165	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
19	57M7618	1	Electrical Connector Assy	-
20	57M13101	1	Elec. Connector Housing	3-Terminal Power Outlet Socket, Front Hitch, X257F-ECE
20	57M11482	1	Elec. Connector Terminal	Cavity 31
20	57M7431	1	Elec. Connector Terminal	Cavity 15/30
21	57M14746	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W431 and W432, X405M
21	57M11858	1	Elec. Connector Terminal	Cavity 1
21	57M9108	1	Elec. Connector Terminal	Cavity 2
21	57M9136	1	Elec. Connector Cable Seal	Cavity 2
22	57M10300	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W431 and W432, X405M-2
22	57M10524	5	Elec. Connector Terminal	Cavity 1, 2, 6, 7, 10
22	57M10525	2	Elec. Connector Terminal	Cavity 4, 8
22	57M8572	3	Elec. Connector Cavity Plug	Cavity 3, 5, 9
23	57M9776	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W51X and W431 or W751, X360M
23	57M9814	1	Elec. Connector Cavity Plug	Cavity 2
23	57M9813	1	Elec. Connector Terminal	Cavity 1
24	57M14746	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W401 and W431, X406M
24	57M11858	2	Elec. Connector Terminal	Cavity 1, 2
25	57M7260	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W431 and W433, X805F-1
25	57M7494	4	Elec. Connector Terminal	Cavity B, D, E, F
25	57M9214	4	Elec. Connector Seal	Cavity B, D, E, F
25	57M7259	2	Elec. Connector Seal	Cavity A, C
25	57M7291	1	Electrical Connector Assy	-
26	57M11416	1	Elec. Connector Housing	Fuse for 3-Terminal Power Outlet Socket, Front Hitch, Switched Plus, XF040F
26	57M8059	1	Elec. Connector Terminal	Cavity 1
26	57M8058	1	Elec. Connector Terminal	Cavity 2
26	57M11146	1	Elec. Connector Cable Seal	Cavity 2
26	57M7121	1	Fuse	-
27	57M8058	1	Elec. Connector Terminal	Cavity 2
27	57M7146	1	Fuse	-
27	57M11146	1	Elec. Connector Cable Seal	Cavity 2
27	57M8059	1	Elec. Connector Terminal	Cavity 1
27	57M8435	1	Fuse Holder	Fuse for 3-Terminal Power Outlet Socket, Front Hitch, Permanent Plus, XF041F
28	57M8233	1	Electrical Connector Assy	Relay for 3-Terminal Power Outlet Socket, Front Hitch, XK074F
28	57M8234	2	Elec. Connector Terminal	Cavity 1, 2
28	57M8237	2	Elec. Connector Seal	Cavity 1, 2
29	57M10299	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W431 and W432, X405F-2
29	57M8545	5	Elec. Connector Terminal	Cavity 1, 2, 6, 7, 10
29	57M8565	2	Elec. Connector Terminal	Cavity 4, 8
29	57M8572	3	Elec. Connector Cavity Plug	Cavity 3, 5, 9
30	57M7411	1	Elec. Connector Terminal	Ground Point, XGND7A
31	L222874	1	Elec. Connector Accessory	-
32	57M13652	1	Elec. Connector Housing	Front Implement Socket, XA091F-1
32	57M7614	2	Elec. Connector Terminal	Cavity 1, 3
32	57M8593	2	Elec. Connector Terminal	Cavity 2, 4

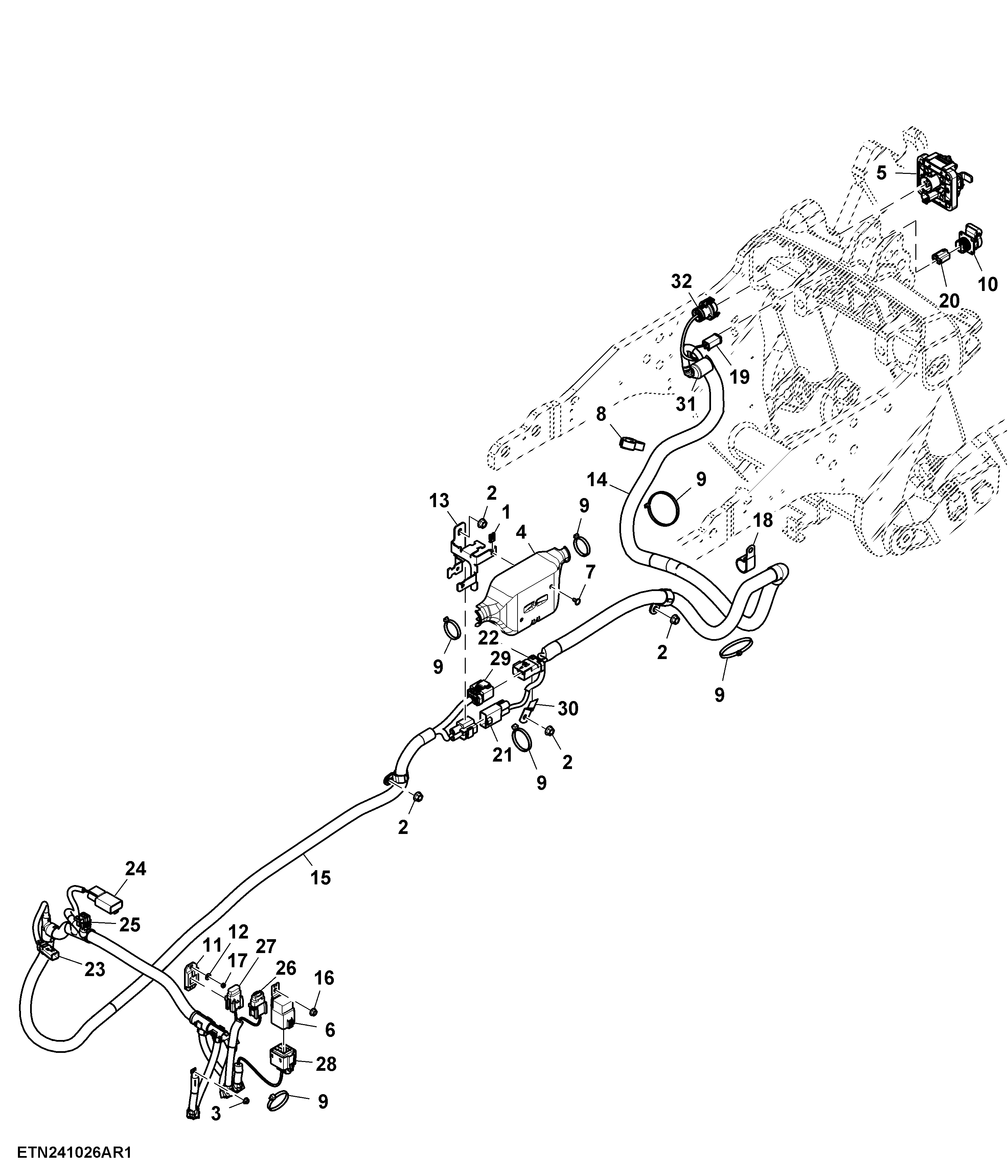

Wiring Harness, Electric Socket, 3-Pin, Front Hitch, W/ ISOBUS
