Wiring Harness, CommandQuad™, W/ CommandARM™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7298	2	Flange Nut	M8
2	L224505	1	Bracket	-
3	AL230287	1	Wiring Harness	-
4	57M8069	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W204 and W251, X200M-1
4	57M9042	3	Elec. Connector Terminal	Cacity 4, 6, 15
4	57M7400	14	Elec. Connector Seal	Cavity 2, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16
4	L223370	1	Clip	-
4	57M8075	1	Elec. Connector Seal	-
4	57M8082	1	Elec. Connector Accessory	-
5	57M8070	1	Elec. Connector Housing	Connection Point between Wiring Harnesses W204 and W251, X200M-2
5	57M9042	16	Elec. Connector Terminal	Cavity 2, 3, 4, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 19, 20, 21
5	57M7400	20	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 20, 21
5	57M8076	1	Elec. Connector Terminal	-
5	57M8084	1	Elec. Connector Accessory	-
6	57M8081	1	Elec. Connector Accessory	-
6	57M7400	8	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6, 7, 10
6	57M8071	1	Elec. Connector Housing	Shift Unit CommandQuad™ Transmission, XS007F-1
6	57M9532	8	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 10
7	57M7788	1	Electrical Connector Assy	Raise/Lower Button, Rear Hitch, XS024M-2
7	57M7500	3	Elec. Connector Terminal	Cavity A, C, D
7	57M14238	1	Elec. Connector Accessory	-
7	57M7727	1	Electrical Connector Assy	-
8	57M7712	1	Electrical Connector Assy	Hand Throttle Control Module for Engine Speed Control, XS047F
8	57M7437	3	Elec. Connector Terminal	Cavity 1, 2, 4
8	57M7718	1	Electrical Connector Assy	-
9	57M7713	1	Electrical Connector Assy	Control Knob for Depth Control, XB098M
9	57M7718	1	Electrical Connector Assy	-
10	57M11471	1	Elec. Connector Housing	Electric Joystick on CommandARM™, XS064F
11	57M13867	1	Elec. Connector Housing	USB Charging Socket, Side Panel, XA128F
12	57M7784	1	Electrical Connector Assy	Electric Joystick on CommandARM™, XS064M-2
12	57M7500	1	Elec. Connector Terminal	Cavity B
12	57M14238	1	Elec. Connector Accessory	-
12	57M7723	1	Electrical Connector Assy	-
13	57M11471	1	Elec. Connector Housing	Reconfigurable Control Module for E-SCV I-II, XS050F-1
14	57M11237	1	Clip Kit	-

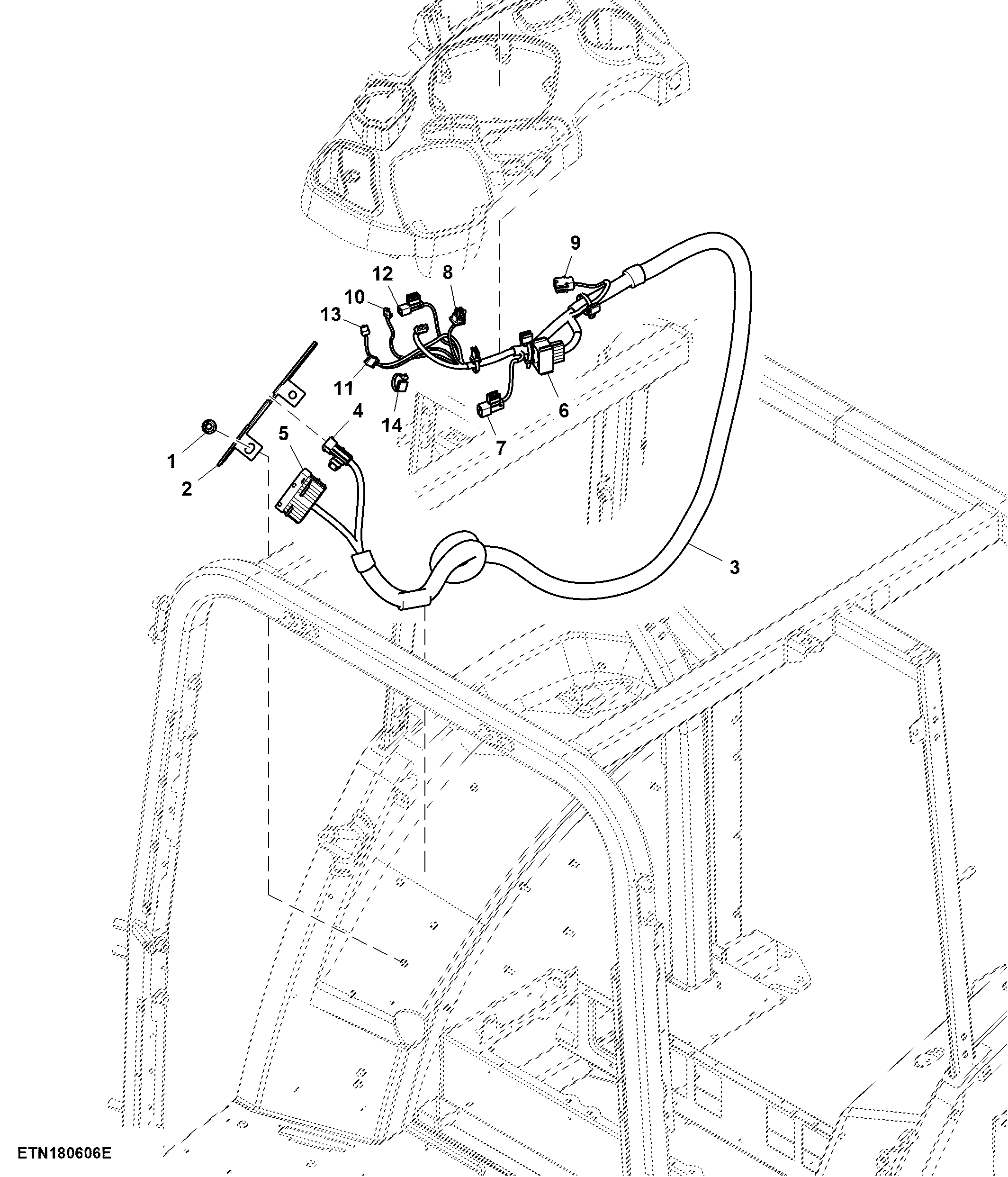

Wiring Harness, CommandQuad™, W/ CommandARM™
